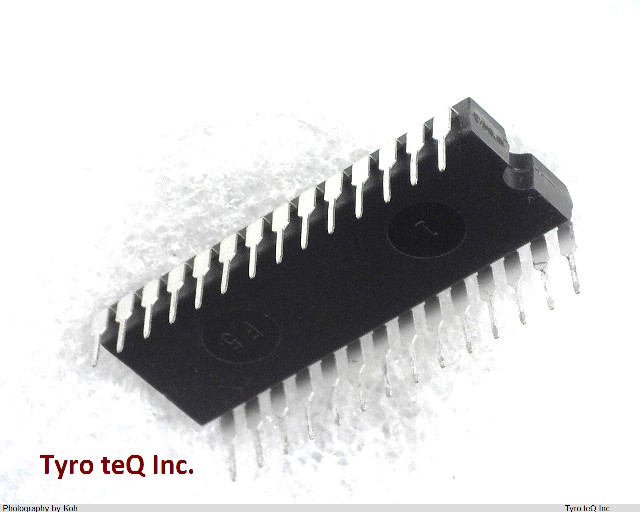

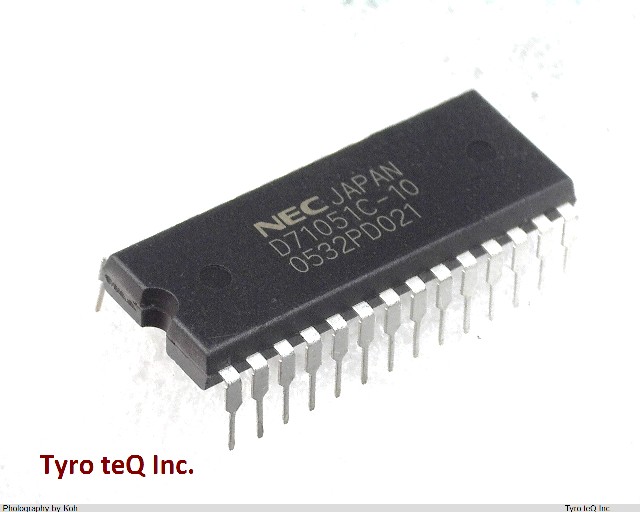

UPD71051C-10 データシート

Name: UPD71051C-10
Brand: RENESAS
SKU: 310094731-0000-0000-0000

UPD71051C-10 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPD71051C-10 の詳細情報

型番	UPD71051C-10
メーカー	RENESAS
データシート
Additional Feature	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS
Address Bus Width	1
Boundary Scan	NO
Clock Frequency-Max	10 MHz
Communication Protocol	ASYNC, BIT; SYNC, BYTE
Data Encoding/Decoding Method	NRZ
Data Transfer Rate-Max	0.03662109375 MBps
External Data Bus Width	8
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Low Power Mode	YES
Number of DMA Channels	0
Number of I/O Lines	0
Number of Serial I/Os	1
Number of Terminals	28
On Chip Data RAM Width	0
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	5.72 mm
Supply Current-Max	10 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
