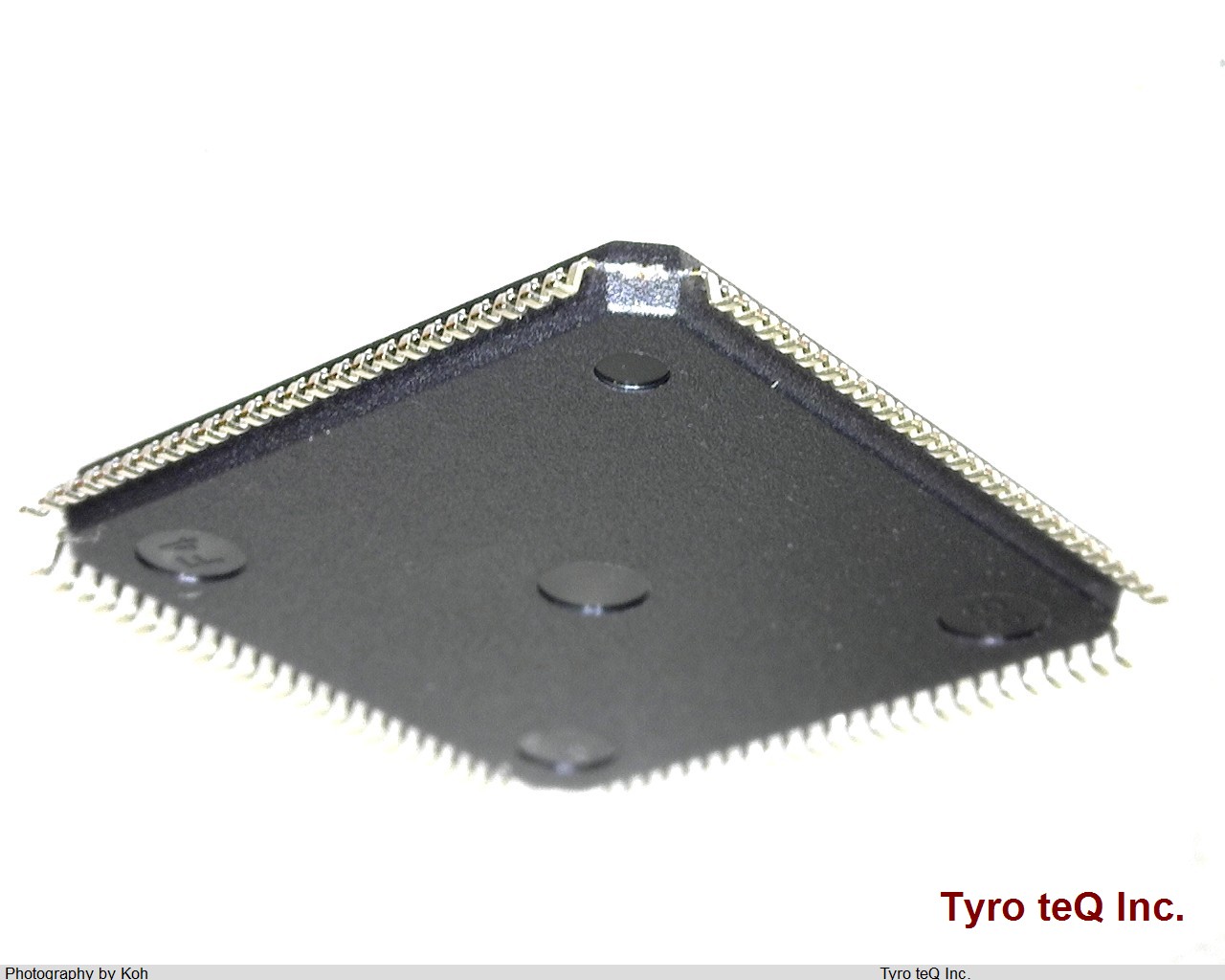

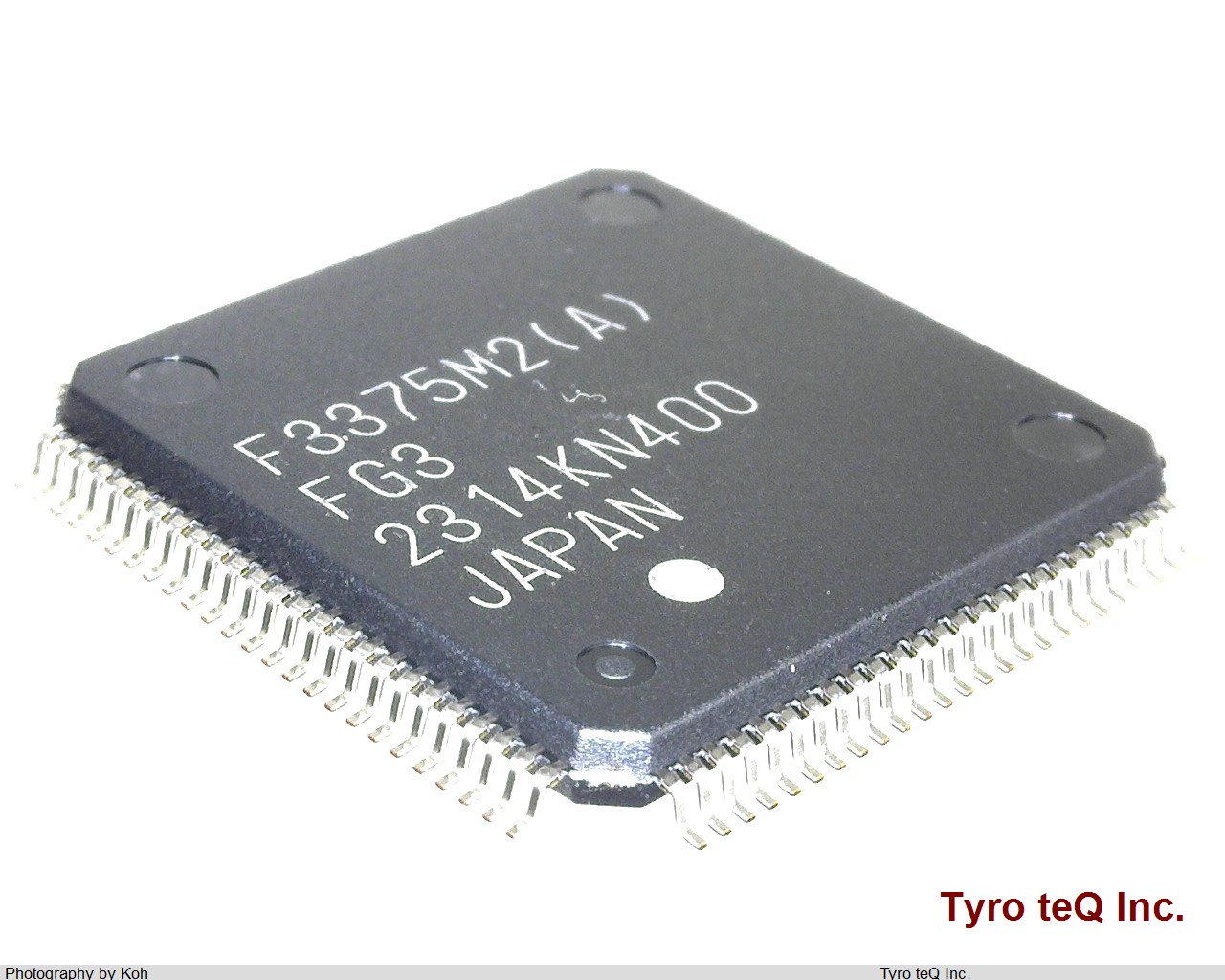

UPD70F3375M2GCA-UEU-AX データシート

Name: UPD70F3375M2GCA-UEU-AX
Brand: RENESAS
SKU: 310092856-0000-0000-0000

UPD70F3375M2GCA-UEU-AX - RENESAS の商品詳細ページです。

No Image

２営業日以内に回答いたします

UPD70F3375M2GCA-UEU-AX の詳細情報

型番	UPD70F3375M2GCA-UEU-AX
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	32
Boundary Scan	NO
CPU Family	V850
Clock Frequency-Max	16 MHz
Connectivity	CAN(2), CSI(2), I2C, UART(3)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	32K
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e4
Length	14 mm
Low Power Mode	YES
Number of DMA Channels	4
Number of External Interrupts	12
Number of I/O Lines	84
Number of Serial I/Os	5
Number of Terminals	100
Number of Timers	5
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	DMA(4), POR, TIMER(10), WDT
Power Supplies	3.3/5.5 V
Qualification Status	Not Qualified
RAM (bytes)	16384
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	1.6 mm
Speed	32 rpm
Sub Category	Microcontrollers
Supply Current-Max	53 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
