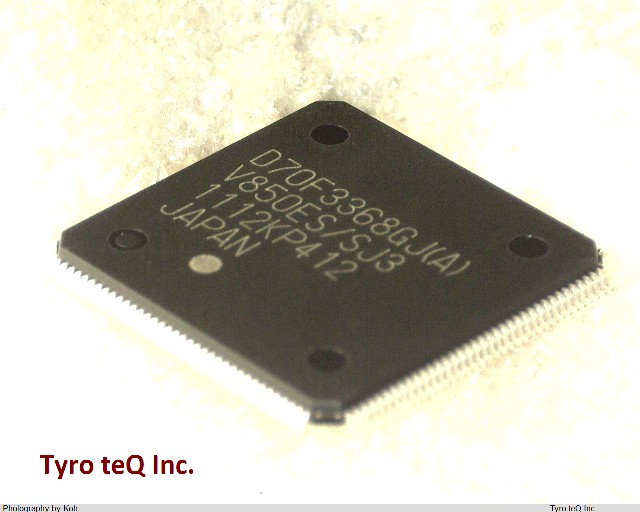

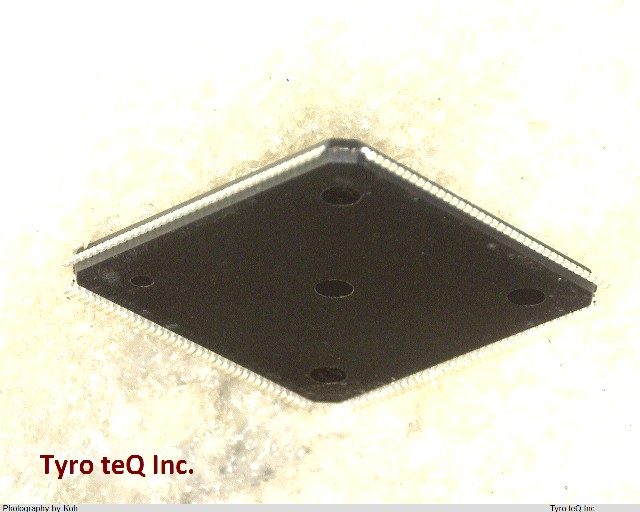

UPD70F3368GJ(A)-UEN-A データシート

Name: UPD70F3368GJ(A)-UEN-A
Brand: RENESAS
SKU: 310093190-0000-0000-0000

UPD70F3368GJ(A)-UEN-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPD70F3368GJ(A)-UEN-A の詳細情報

型番	UPD70F3368GJ(A)-UEN-A
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Address Bus Width	24
Bit Size	32
CPU Family	V850
Clock Frequency-Max	32 MHz
Connectivity	CAN(2), CSI(6), IEBUS, I2C(3), UART(4)
D/A Converters	2-Ch 8-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	16
JESD-30 Code	S-PQFP-G144
JESD-609 Code	e6
Length	20 mm
Number of I/O Lines	128
Number of Terminals	144
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP144,.87SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	CRC, DMA(4), POR, PWM, TIMER(12), WDT
Power Supplies	3/3.3 V
Qualification Status	Not Qualified
RAM (bytes)	61440
ROM (words)	1048576
ROM Programmability	FLASH
Screening Level	AEC-Q100
Seated Height-Max	1.6 mm
Speed	32 rpm
Sub Category	Microcontrollers
Supply Current-Max	64 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	2.85 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	20 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
