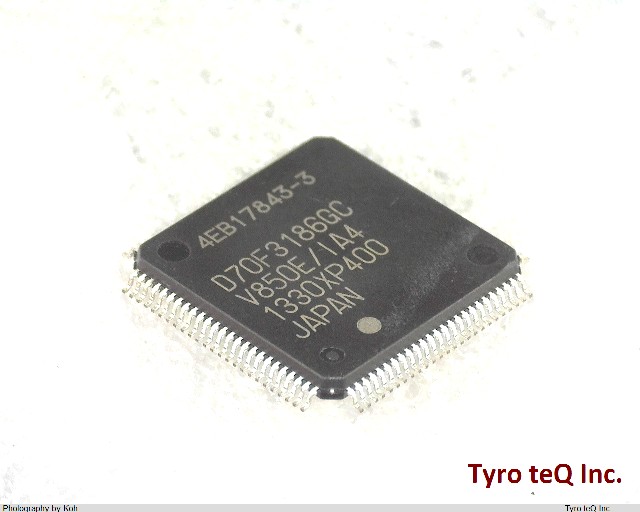

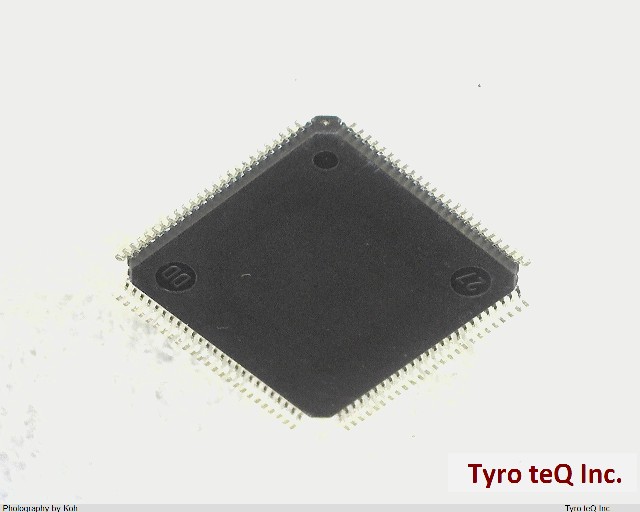

UPD70F3186GC-8EU-A データシート

Name: UPD70F3186GC-8EU-A
Brand: RENESAS
SKU: 310092747-0000-0000-0000

UPD70F3186GC-8EU-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPD70F3186GC-8EU-A の詳細情報

型番	UPD70F3186GC-8EU-A
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
ADC Channels	YES
Address Bus Width	0
Bit Size	32
CPU Family	V850
Clock Frequency-Max	8 MHz
DAC Channels	NO
DMA Channels	YES
External Data Bus Width	0
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e6
Length	14 mm
Moisture Sensitivity Level	4
Number of I/O Lines	64
Number of Terminals	100
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2.5,5 V
Qualification Status	Not Qualified
RAM (bytes)	12288
ROM (words)	262144
ROM Programmability	FLASH
Seated Height-Max	1.6 mm
Speed	64 rpm
Sub Category	Microcontrollers
Supply Current-Max	120 mA
Supply Voltage-Max	2.7 V
Supply Voltage-Min	2.3 V
Supply Voltage-Nom	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	10
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
