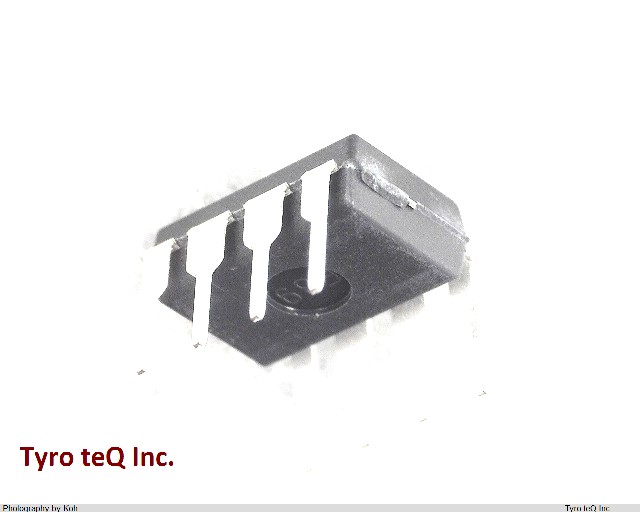

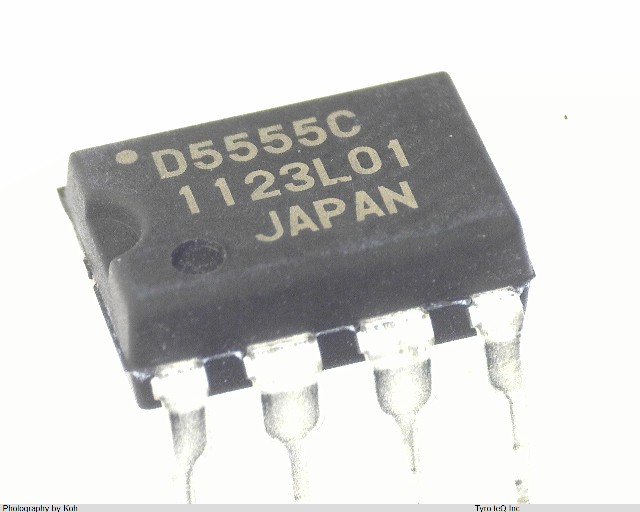

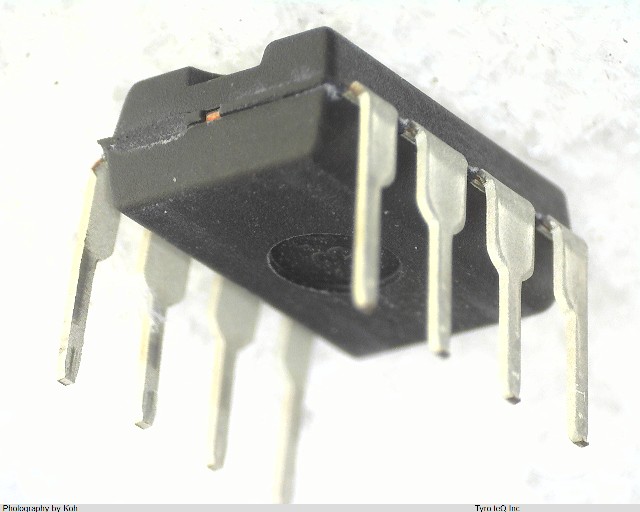

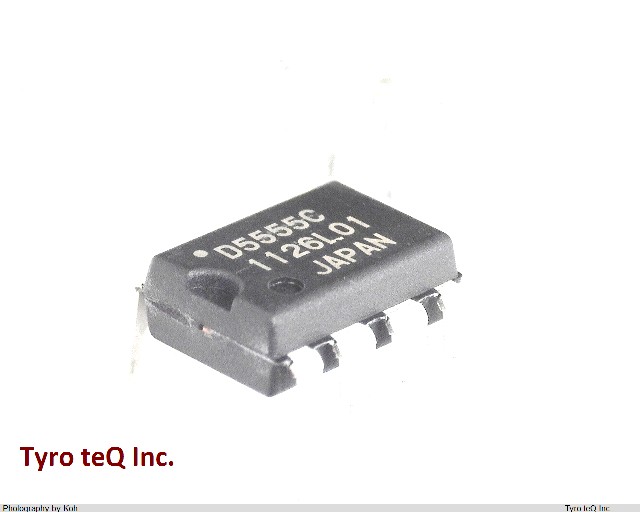

UPD5555C データシート

Name: UPD5555C
Brand: RENESAS
SKU: 310104006-0000-0000-0000

UPD5555C - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPD5555C の詳細情報

型番	UPD5555C
メーカー	RENESAS
データシート
Analog IC - Other Type	PULSE; RECTANGULAR
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Output Frequency-Max	0.5 GHz
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	3/16 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Analog Waveform Generation Functions
Supply Current-Max (Isup)	0.35 mA
Supply Voltage-Max (Vsup)	16 V
Supply Voltage-Min (Vsup)	3 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
