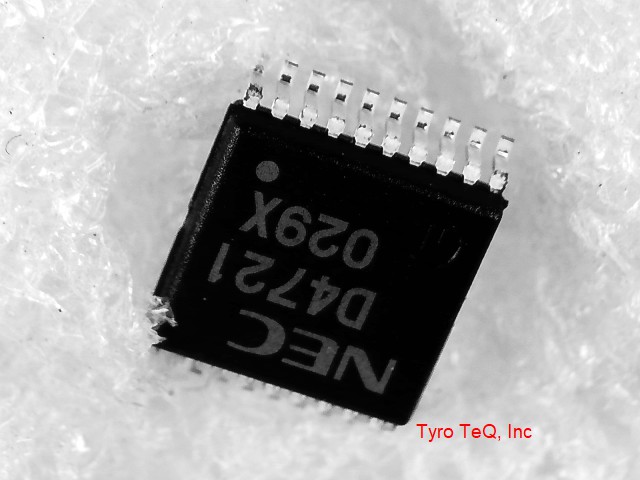

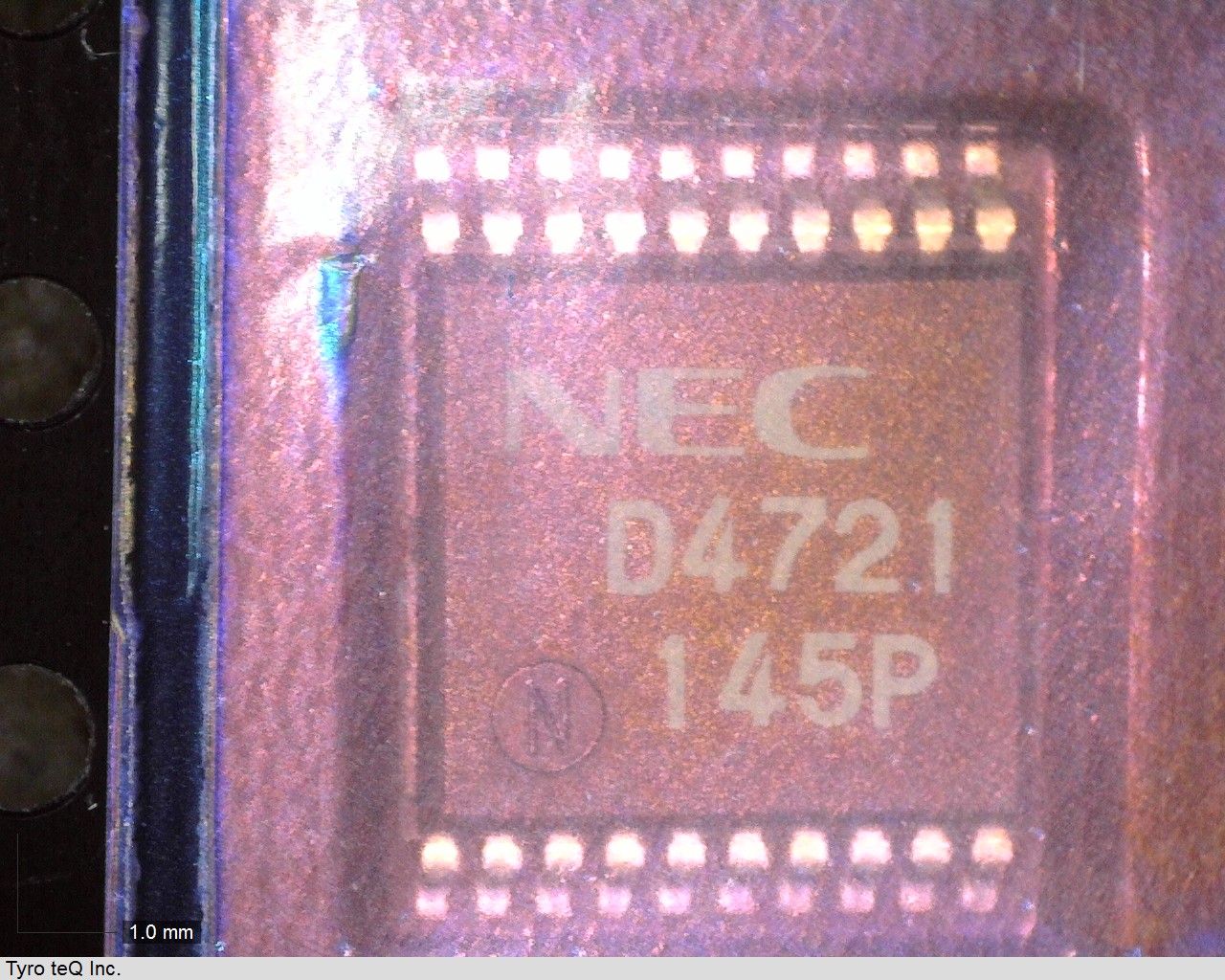

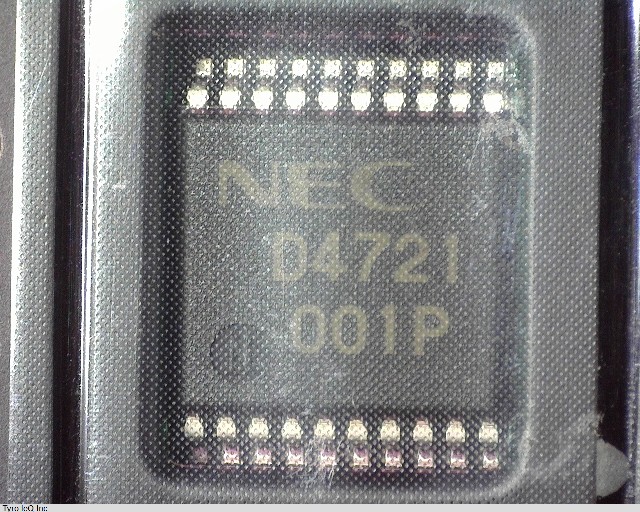

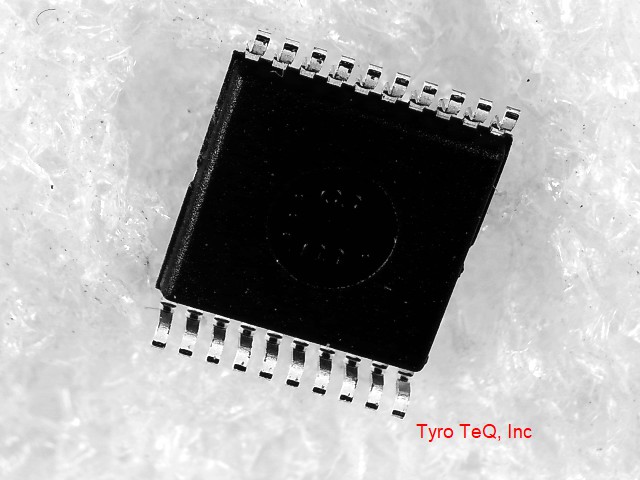

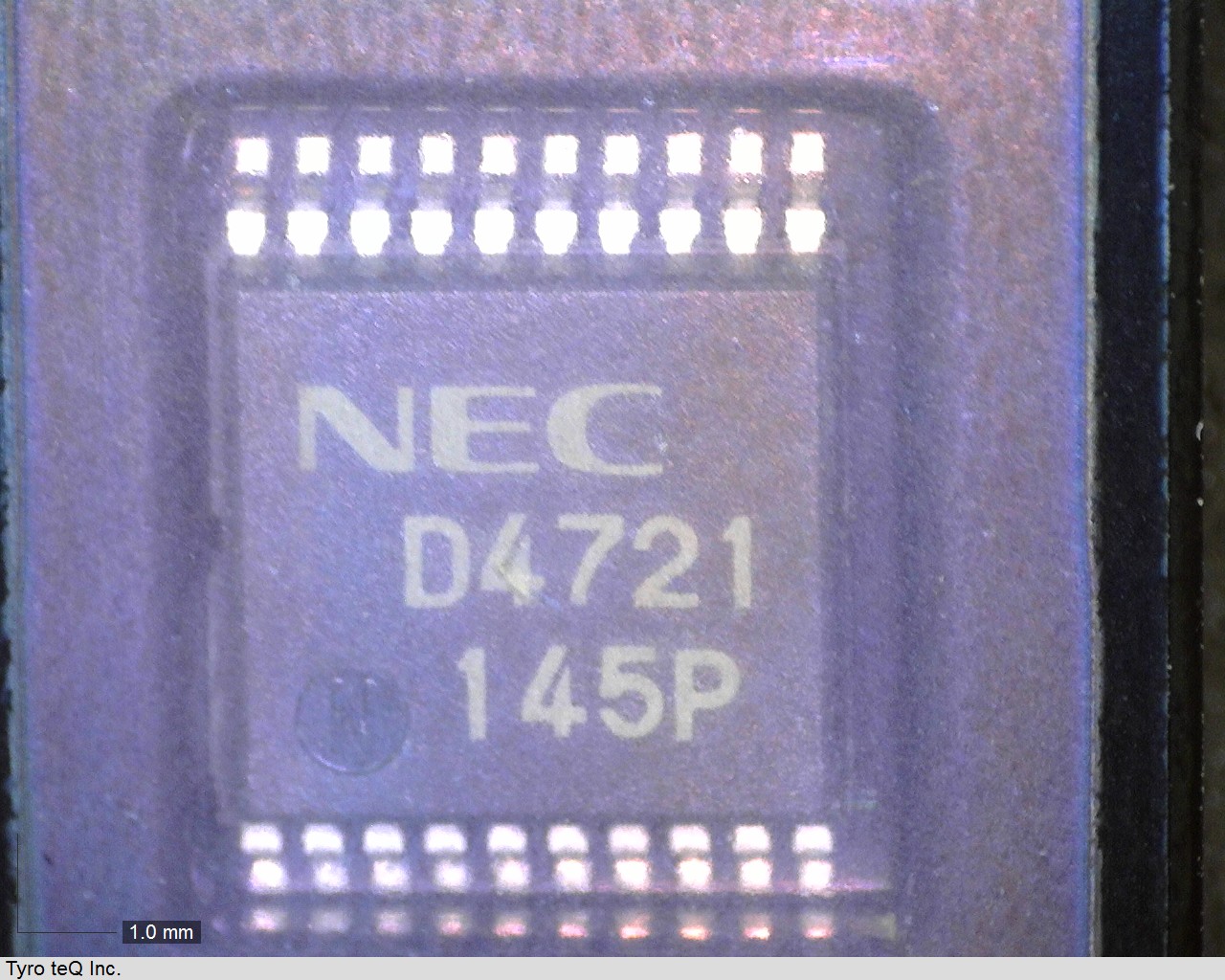

UPD4721GS-GJG-A データシート

Name: UPD4721GS-GJG-A
Brand: RENESAS
SKU: 310023704-0000-0000-0000

UPD4721GS-GJG-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

鉛フリー品

UPD4721GS-GJG-A の詳細情報

型番	UPD4721GS-GJG-A
メーカー	RENESAS
データシート
Additional Feature	SELECTABLE 5V OPTION ALSO AVAILABLE
Differential Output	NO
Driver Number of Bits	2
High Level Input Current-Max	1.0E-6 Amp
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-C; EIA-232-E
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e6
Length	6.7 mm
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	10 V
Output Characteristics	3-STATE
Output Low Current-Max	0.004 Amp
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
Receiver Number of Bits	2
Seated Height-Max	2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	24 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	6.1 mm
