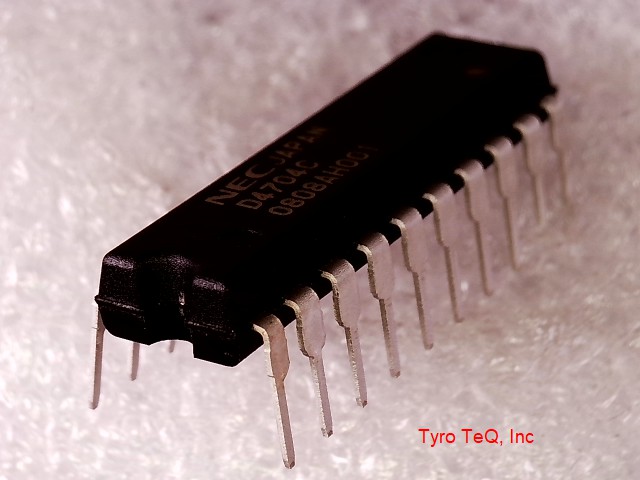

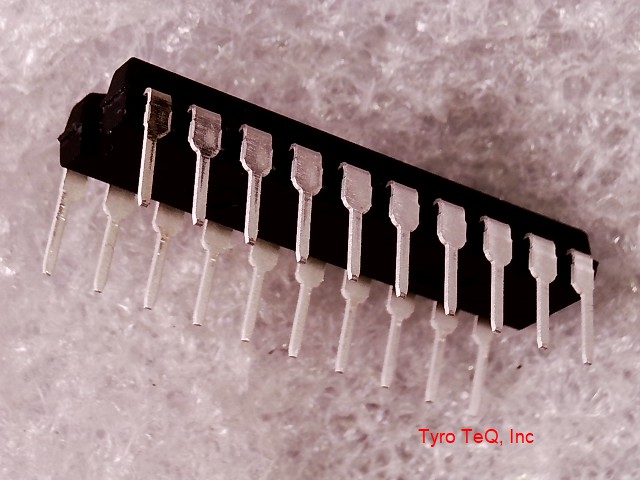

UPD4704C-A データシート

Name: UPD4704C-A
Brand: RENESAS
SKU: 310031600-0000-0000-0000

UPD4704C-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

鉛フリー品

UPD4704C-A の詳細情報

型番	UPD4704C-A
メーカー	RENESAS
データシート
Count Direction	BIDIRECTIONAL
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e6
Load/Preset Input	YES
Logic IC Type	BINARY COUNTER
Mode of Operation	ASYNCHRONOUS
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Width	7.62 mm
