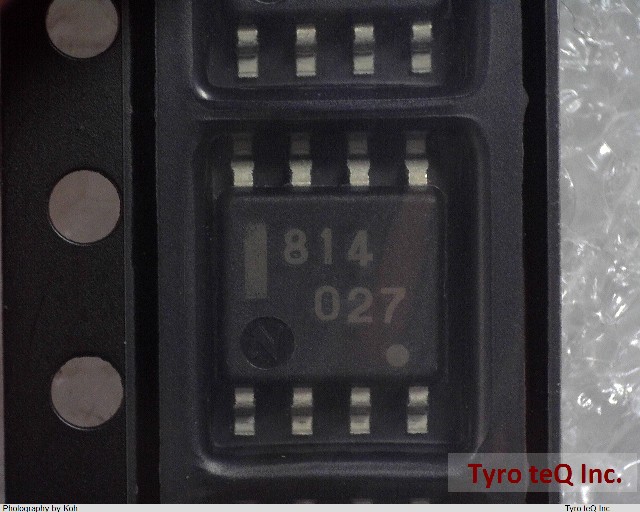

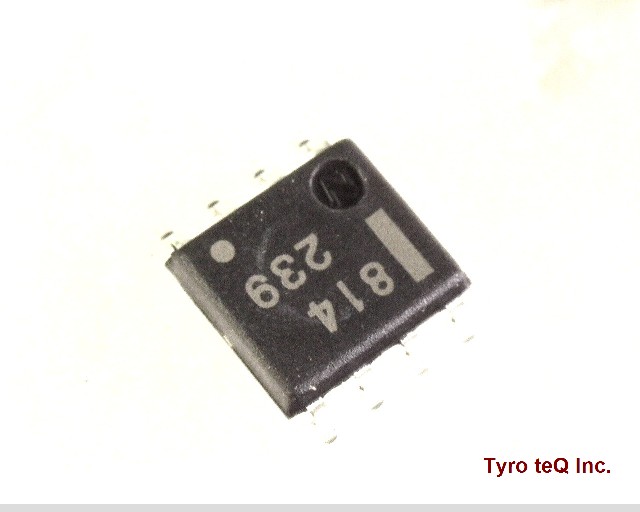

UPC814G2-A データシート

Name: UPC814G2-A
Brand: RENESAS
SKU: 310023688-0000-0000-0000

UPC814G2-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC814G2-A の詳細情報

型番	UPC814G2-A
メーカー	RENESAS
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	0.0002 uA
Common-mode Reject Ratio-Nom	100 dB
Input Offset Voltage-Max	2500 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e6
Length	5.37 mm
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.8 mm
Slew Rate-Nom	15 V/us
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Unity Gain BW-Nom	4000 kHz
Width	4.4 mm
