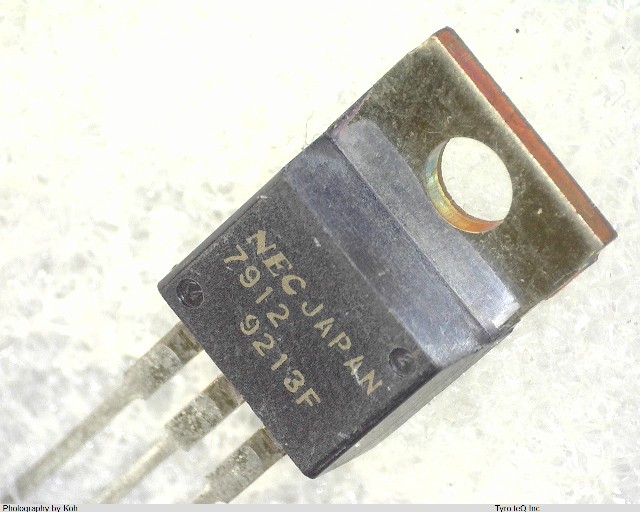

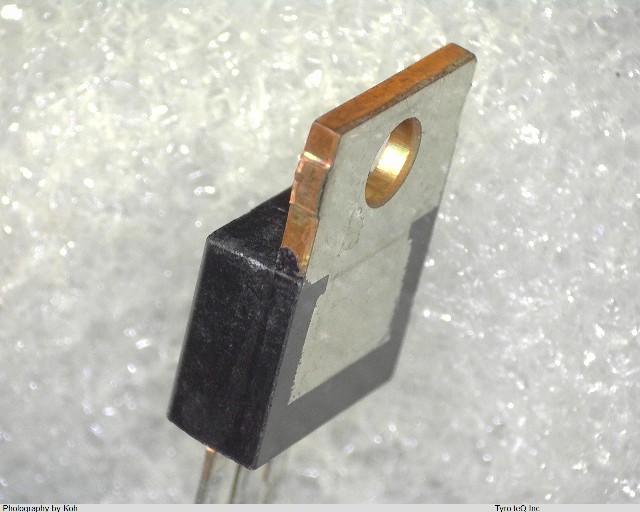

UPC79M12HFAZ データシート

Name: UPC79M12HFAZ
Brand: RENESAS
SKU: 310030426-0000-0000-0000

UPC79M12HFAZ - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC79M12HFAZ の詳細情報

型番	UPC79M12HFAZ
メーカー	RENESAS
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	1.1 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	30 V
Input Voltage-Min	14.5 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Line Regulation-Max	0.08 %
Load Regulation-Max	0.24 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	150 Cel
Operating Temperature, TJ-Min	-20 Cel
Output Current1-Max	0.35 A
Output Voltage1-Max	12.6 V
Output Voltage1-Min	11.4 V
Output Voltage1-Nom	12 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1ISO-TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	10
Voltage Tolerance-Max	5 %
