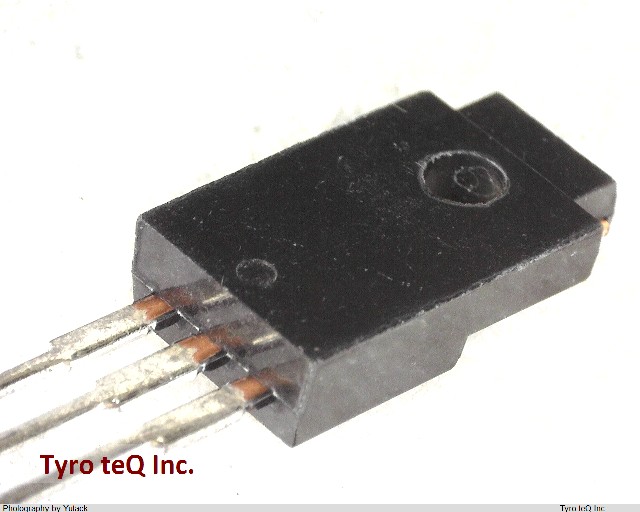

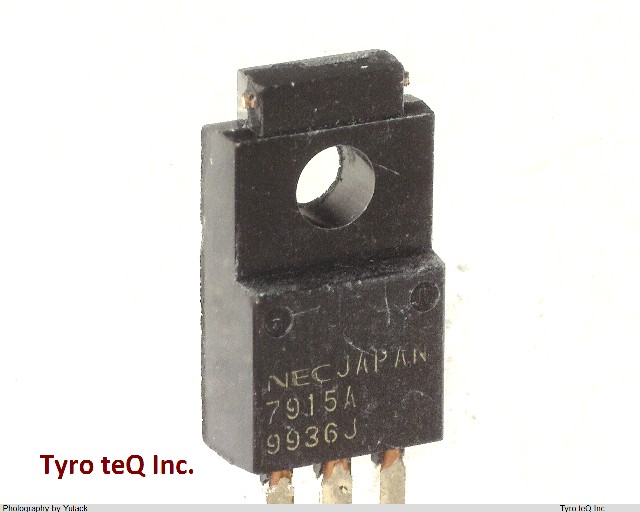

UPC7915AHF データシート

Name: UPC7915AHF
Brand: RENESAS
SKU: 310099474-0000-0000-0000

UPC7915AHF - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC7915AHF の詳細情報

型番	UPC7915AHF
メーカー	RENESAS
データシート
Input Voltage-Max	30 V
Input Voltage-Min	17.5 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Line Regulation-Max	0.2 %
Load Regulation-Max	0.3 %
Mfr Name	RENESAS ELECTRONICS CORP
Mfr P/N	UPC7915AHF
New Category	Fixed Negative Single Output Standard Regulators
New Part Type	REGULATORS
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Old Category	Fixed Positive Single Output LDO Regulators
Old Part Type	REGULATORS
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-30 Cel
Output Current1-Max	1 A
Output Voltage1-Max	15.75 V
Output Voltage1-Min	14.25 V
Output Voltage1-Nom	15 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1ISO-TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Part Objectid	1389732132
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	10
Voltage Tolerance-Max	5 %
