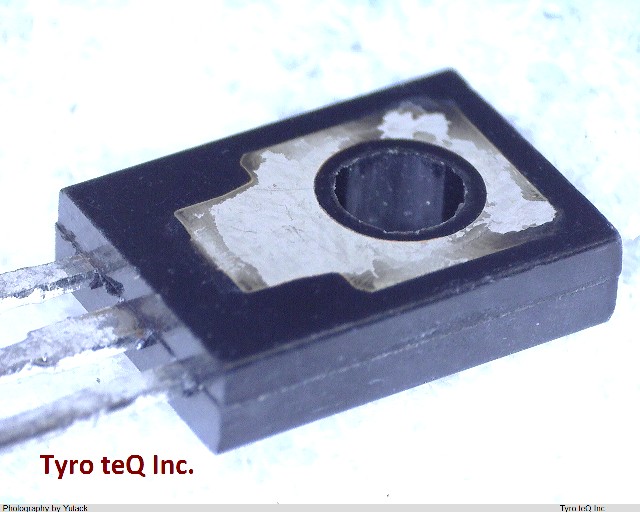

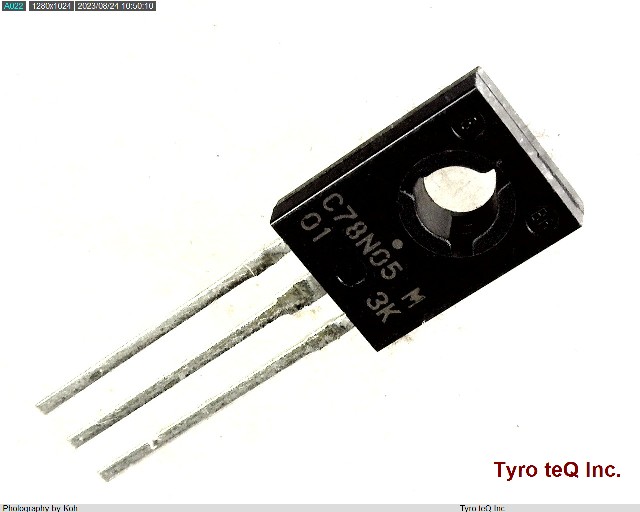

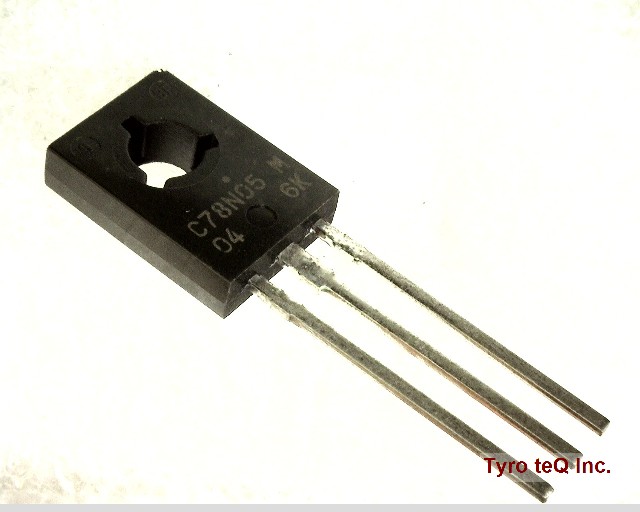

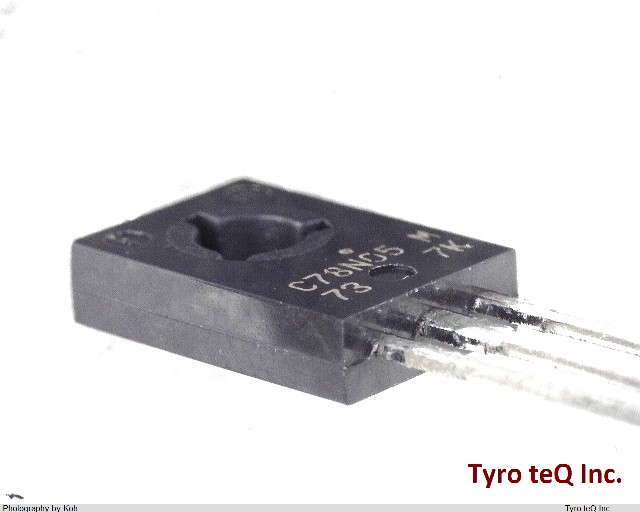

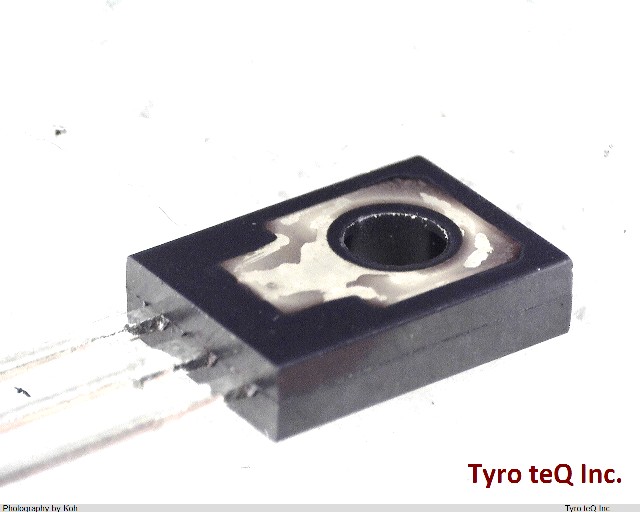

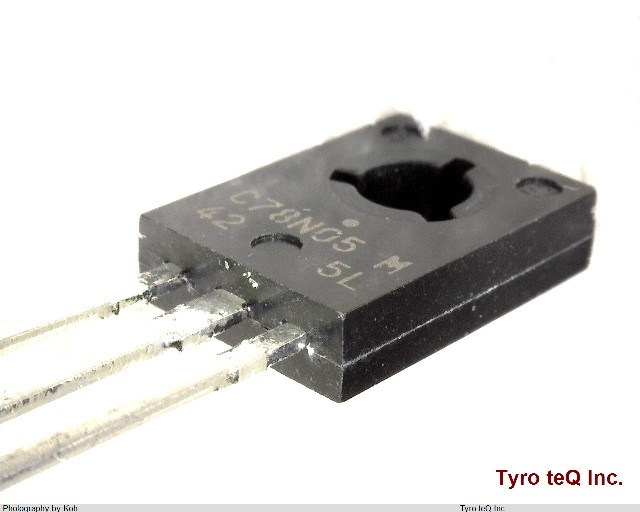

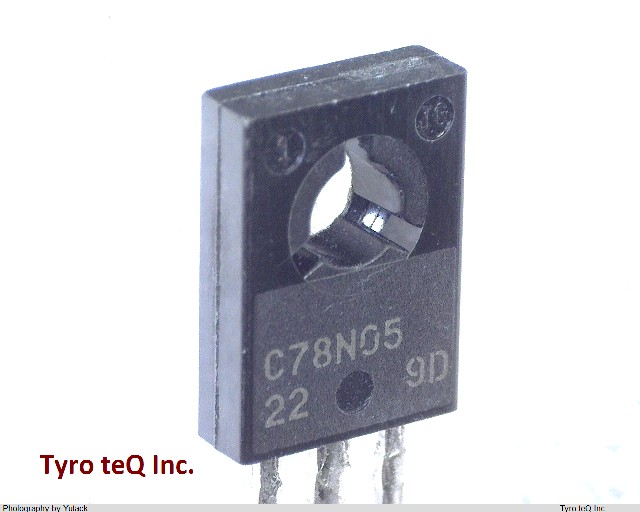

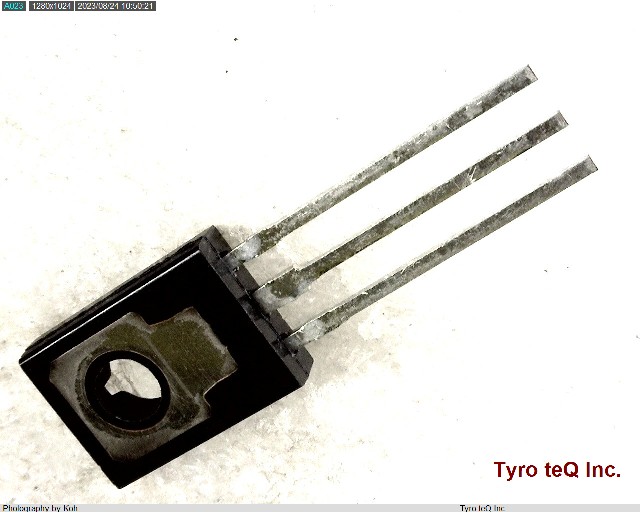

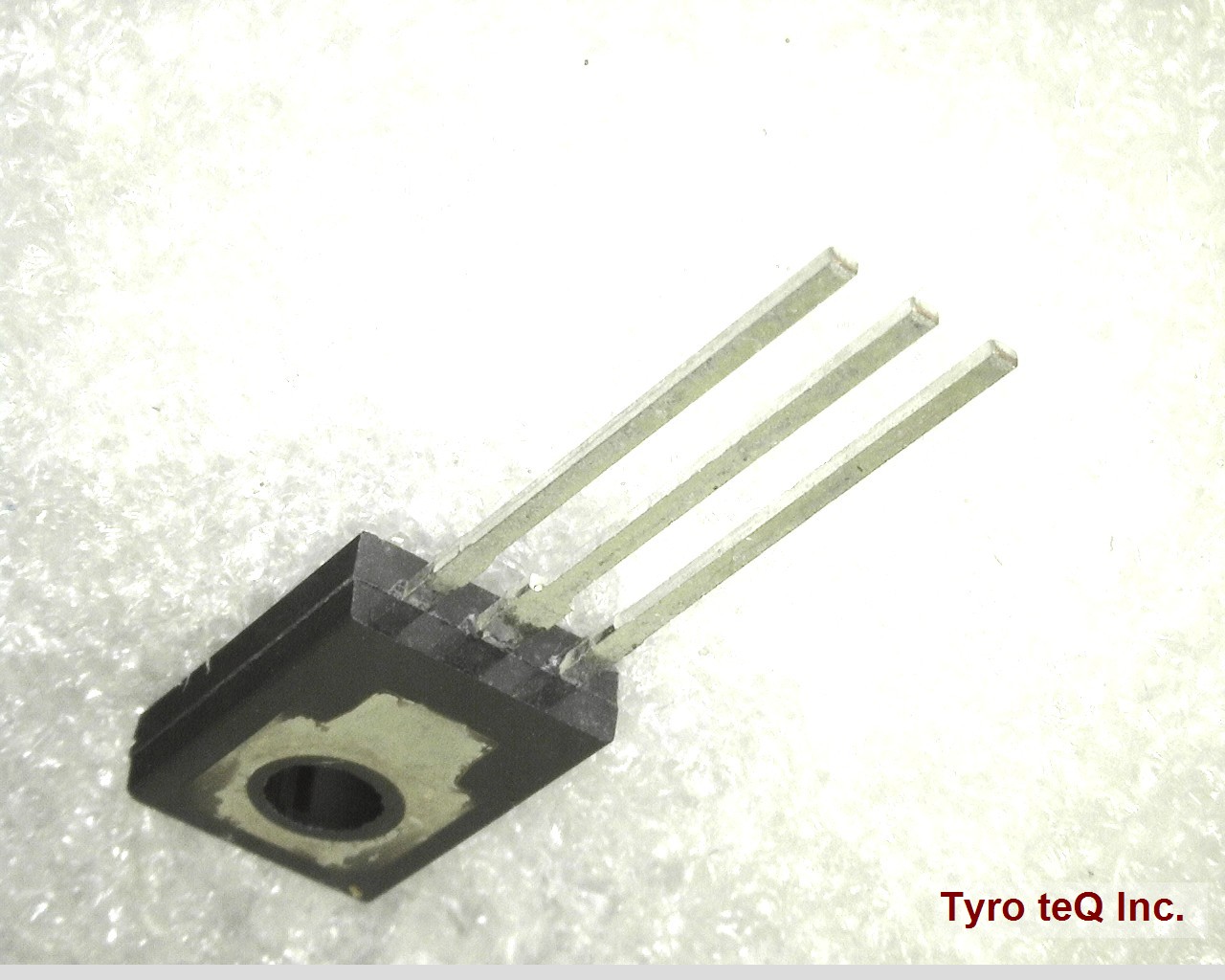

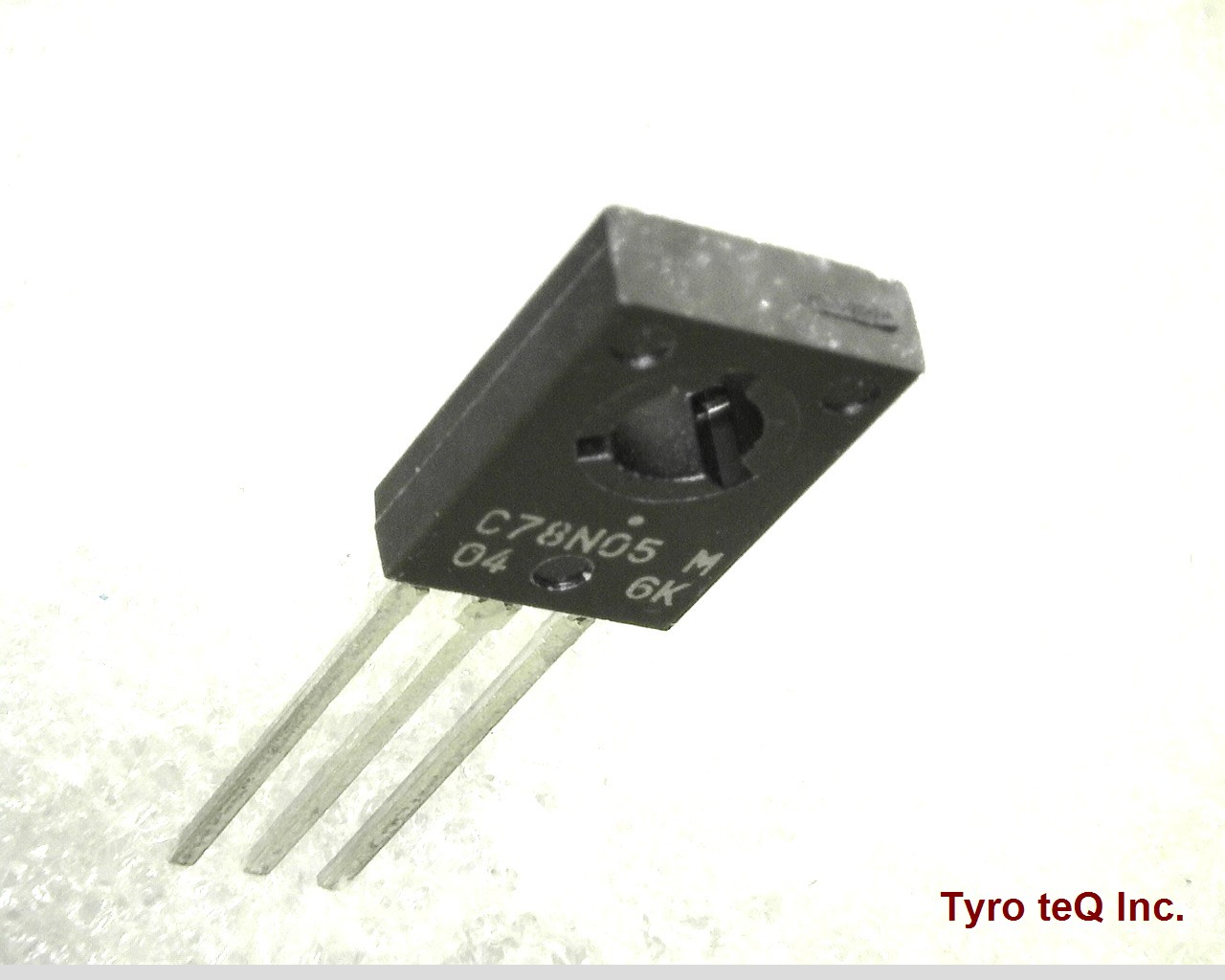

UPC78N05H-AZ データシート

Name: UPC78N05H-AZ
Brand: RENESAS
SKU: 310000687-0000-0000-0000

UPC78N05H-AZ - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC78N05H-AZ の詳細情報

型番	UPC78N05H-AZ
メーカー	RENESAS
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	1.7 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	25 V
Input Voltage-Min	7 V
JESD-30 Code	R-PSIP-T3
JESD-609 Code	e6
Line Regulation-Max	0.05 %
Load Regulation-Max	0.1 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.3 A
Output Voltage1-Max	5.25 V
Output Voltage1-Min	4.75 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SIP3,.07,90
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	14.5 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	10
Voltage Tolerance-Max	5 %
Width	2.7 mm
