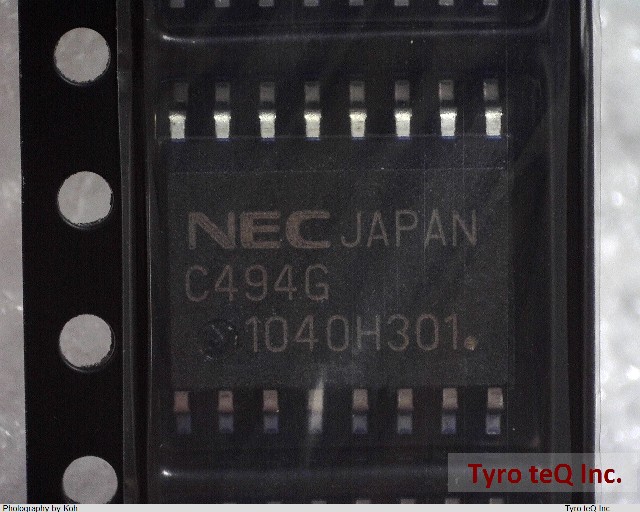

UPC494GT-E1-A データシート

Name: UPC494GT-E1-A
Brand: RENESAS
SKU: 310107150-0000-0000-0000

UPC494GT-E1-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

鉛フリー品

UPC494GT-E1-A の詳細情報

型番	UPC494GT-E1-A
メーカー	RENESAS
データシート
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	40 V
Input Voltage-Min	7 V
Input Voltage-Nom	15 V
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e6
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Current-Max	0.25 A
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Seated Height-Max	1.8 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	SINGLE
Switching Frequency-Max	300 kHz
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5.6 mm
