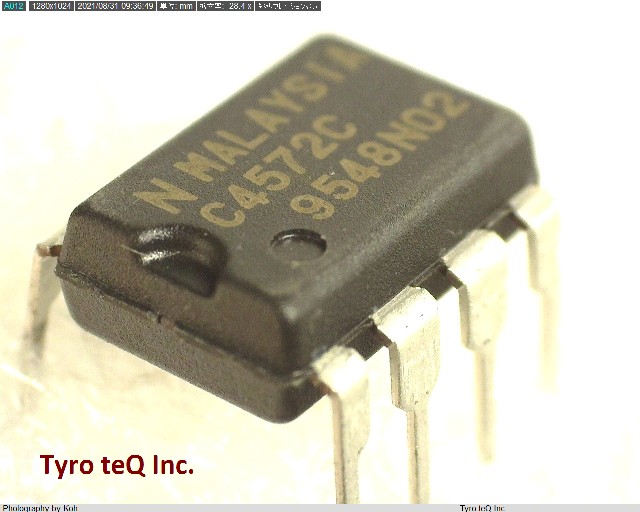

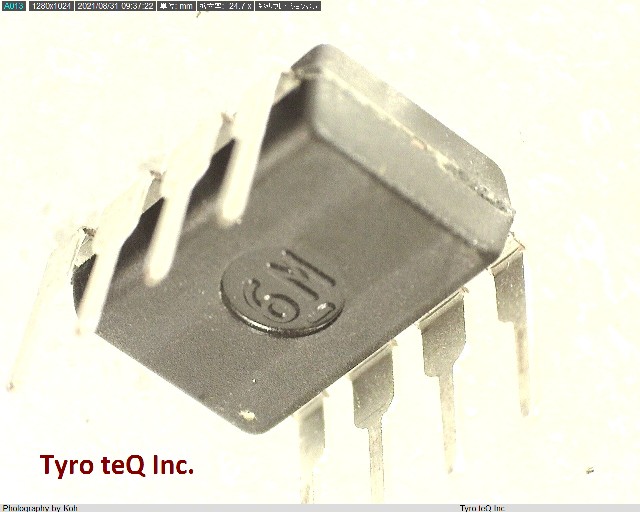

UPC4572C データシート

Name: UPC4572C
Brand: RENESAS
SKU: 310000282-0000-0000-0000

UPC4572C - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パッケージ：Plastic DIP

UPC4572C の詳細情報

型番	UPC4572C
メーカー	RENESAS
種別	CMOS標準ロジックIC
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.2 uA
Bias Current-Max (IIB) @25C	0.2 uA
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Voltage-Max	1500 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	10.16 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-7.5 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-2/+-7/4/14 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Slew Rate-Min	3.5 V/us
Slew Rate-Nom	6 V/us
Sub Category	Operational Amplifier
Supply Current-Max	5.5 mA
Supply Voltage Limit-Max	7.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Unity Gain BW-Nom	9000 kHz
Voltage Gain-Min	8000
Wideband	NO
Width	7.62 mm
