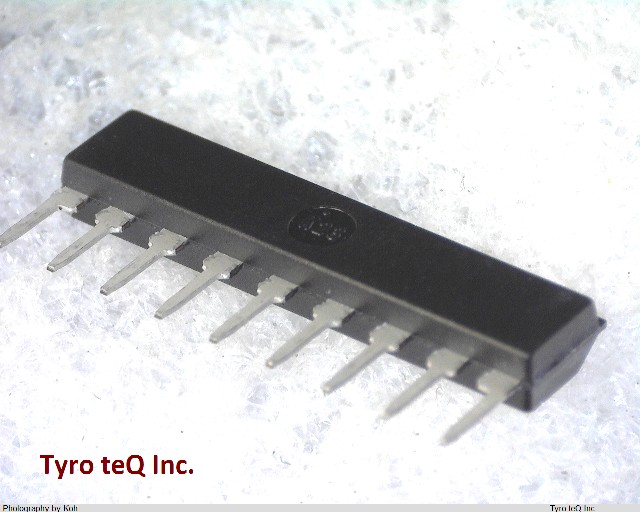

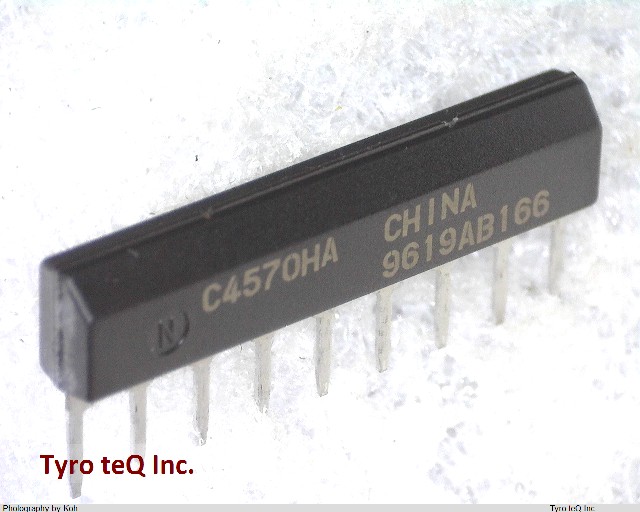

UPC4570HA データシート

Name: UPC4570HA
Brand: RENESAS
SKU: 310098955-0000-0000-0000

UPC4570HA - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|鉛フリー品

UPC4570HA の詳細情報

型番	UPC4570HA
メーカー	RENESAS
種別	CMOS標準ロジックIC
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.4 uA
Bias Current-Max (IIB) @25C	0.4 uA
Common-mode Reject Ratio-Nom	100 dB
Frequency Compensation	YES
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PSIP-T9
JESD-609 Code	e0
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	9
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SIP9,.06
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power	NO
Power Supplies	+-4/+-15/8/30 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	5.75 mm
Slew Rate-Min	5 V/us
Slew Rate-Nom	7 V/us
Sub Category	Operational Amplifier
Supply Current-Max	8 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	7000 kHz
Voltage Gain-Min	30000
Wideband	NO
Width	2.8 mm
