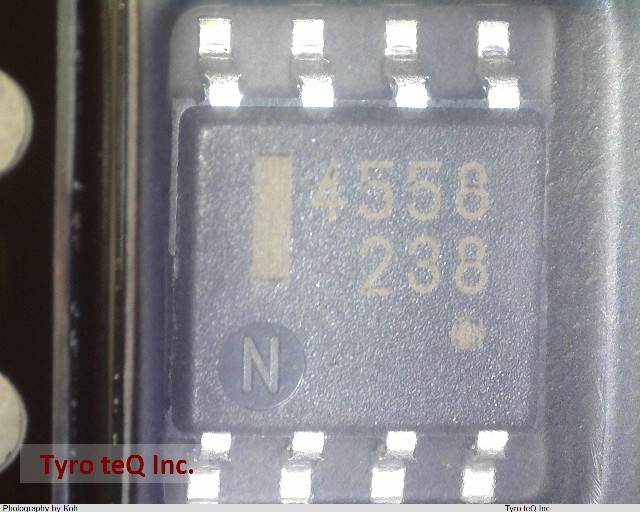

UPC4558G2 データシート

Name: UPC4558G2
Brand: RENESAS
SKU: 310000499-0000-0000-0000

UPC4558G2 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パッケージ：Plastic SOP

UPC4558G2 の詳細情報

型番	UPC4558G2
メーカー	RENESAS
カテゴリ	アンプ
種別	CMOS標準ロジックIC
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.5 uA
Bias Current-Max (IIB) @25C	0.1 uA
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Voltage-Max	2000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	5.2 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.8 mm
Slew Rate-Nom	1 V/us
Sub Category	Operational Amplifier
Supply Current-Max	5.6 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN/TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Unity Gain BW-Nom	2000 kHz
Voltage Gain-Min	20000
Wideband	NO
Width	4.4 mm
