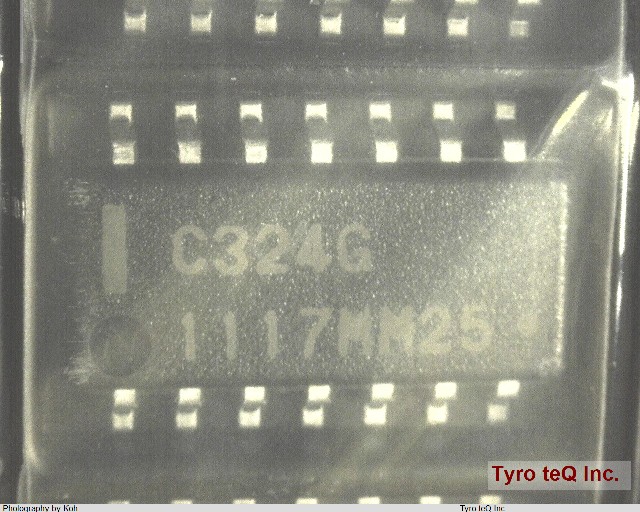

UPC324G2-A データシート

Name: UPC324G2-A
Brand: RENESAS
SKU: 310023657-0000-0000-0000

UPC324G2-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC324G2-A の詳細情報

型番	UPC324G2-A
メーカー	RENESAS
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.25 uA
Bias Current-Max (IIB) @25C	0.25 uA
Common-mode Reject Ratio-Nom	85 dB
Frequency Compensation	YES
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3/e6
Length	10.2 mm
Low-Offset	NO
Micropower	YES
Neg Supply Voltage Limit-Max	-16 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR, EMBOSSED
Peak Reflow Temperature (Cel)	260
Power Supplies	3/30/+-1.5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.8 mm
Sub Category	Operational Amplifier
Supply Current-Max	2 mA
Supply Voltage Limit-Max	16 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN/TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Voltage Gain-Min	25000
Width	4.4 mm
