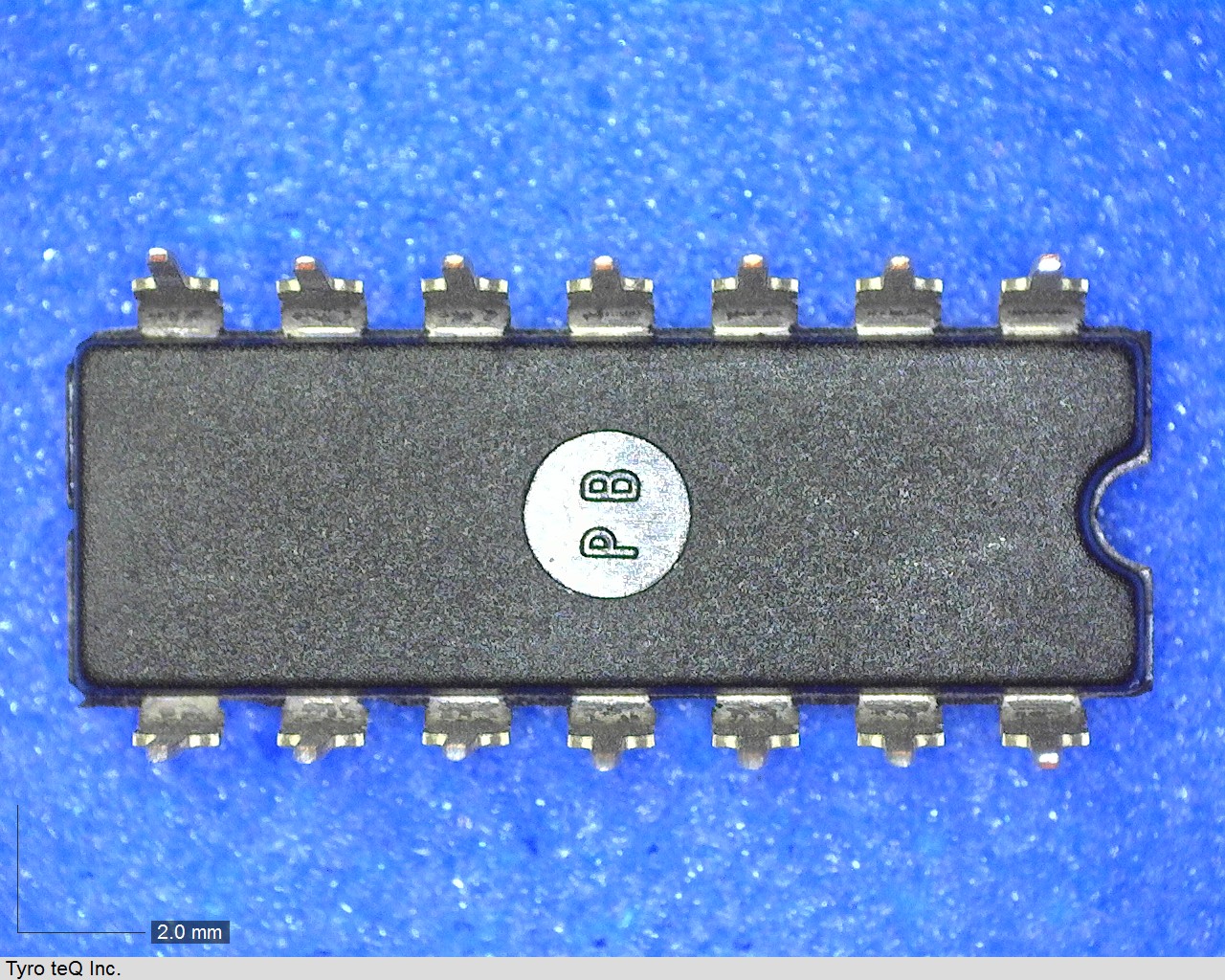

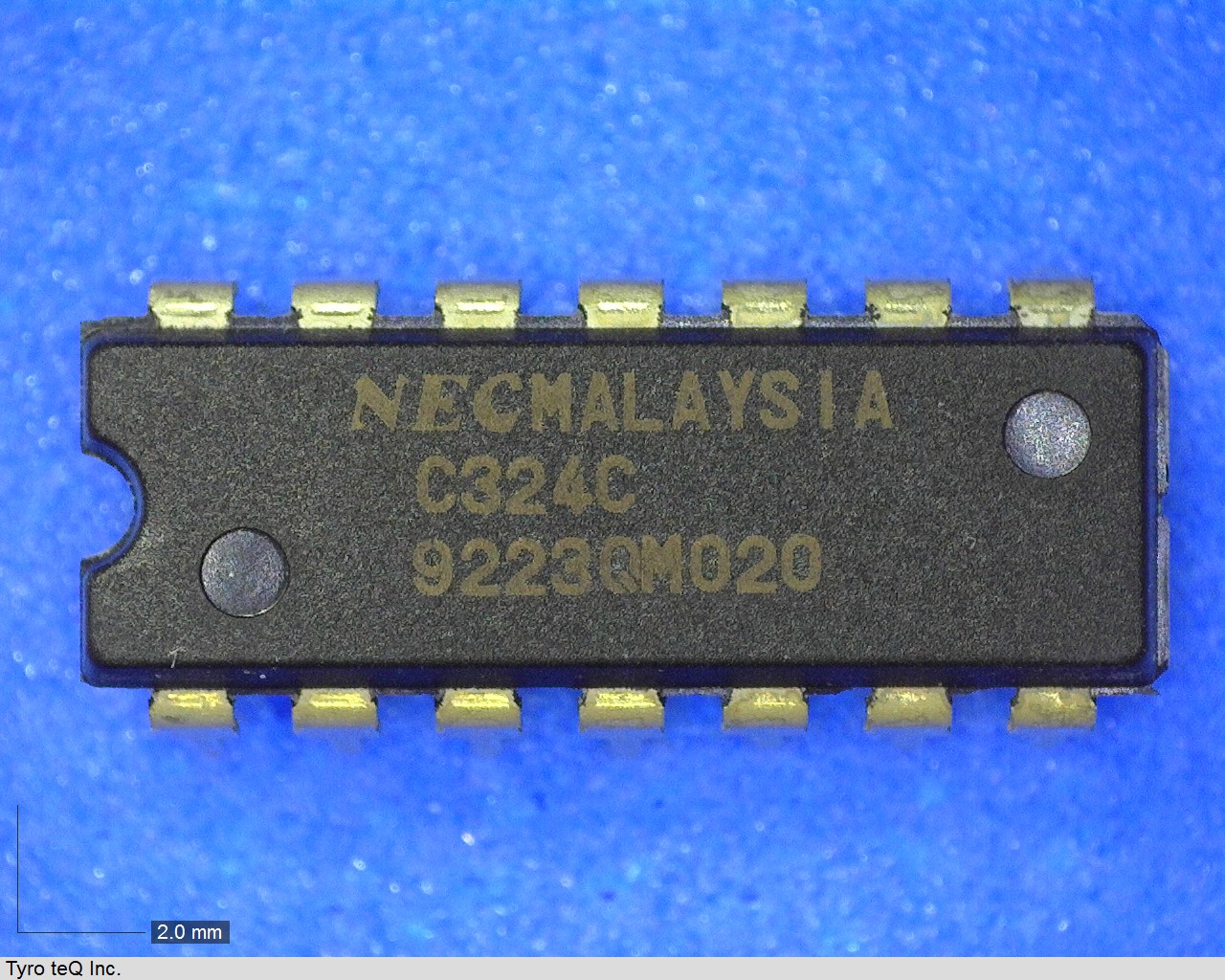

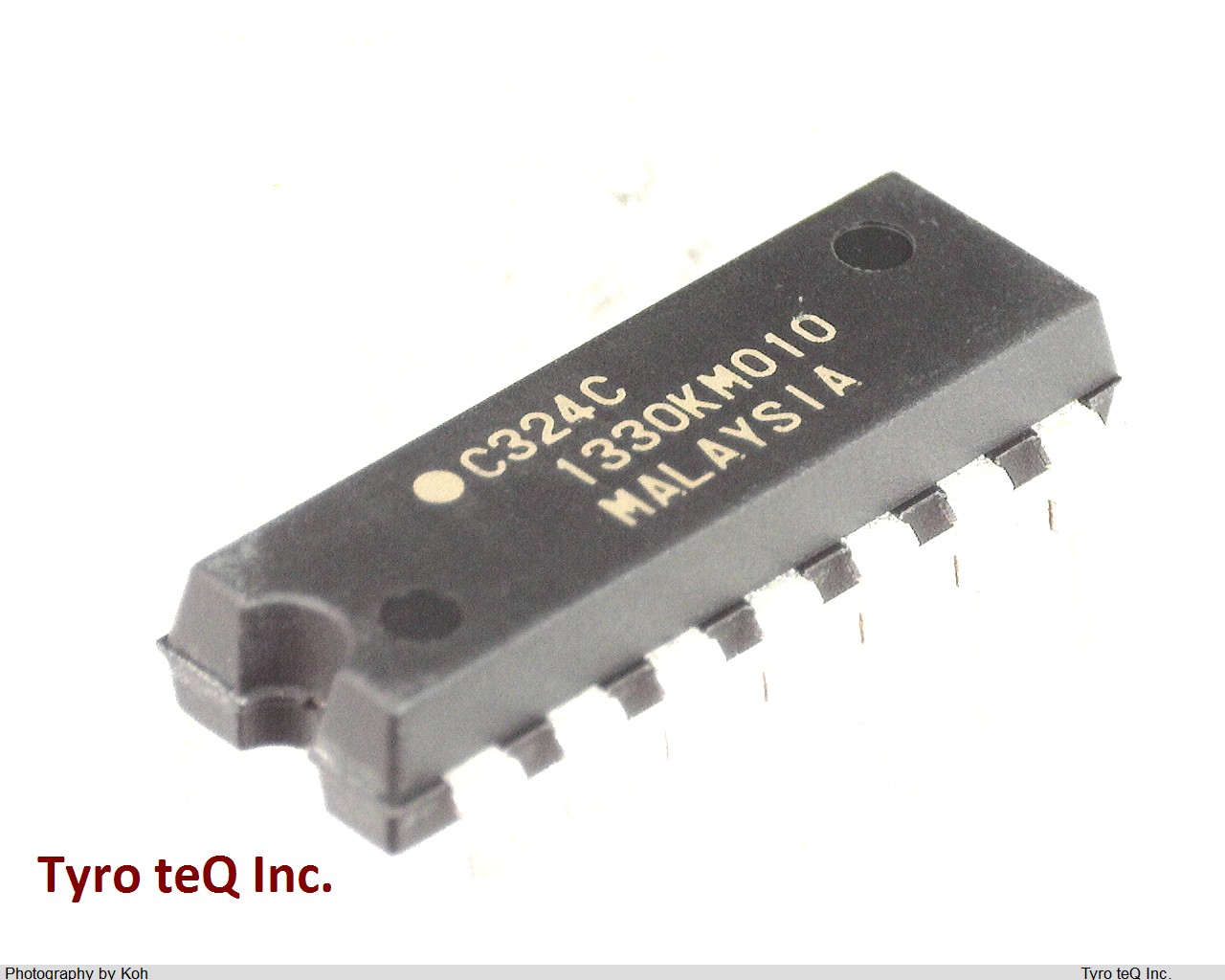

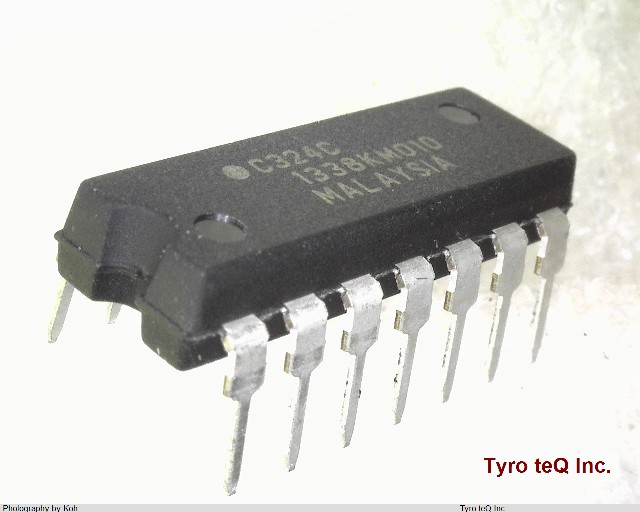

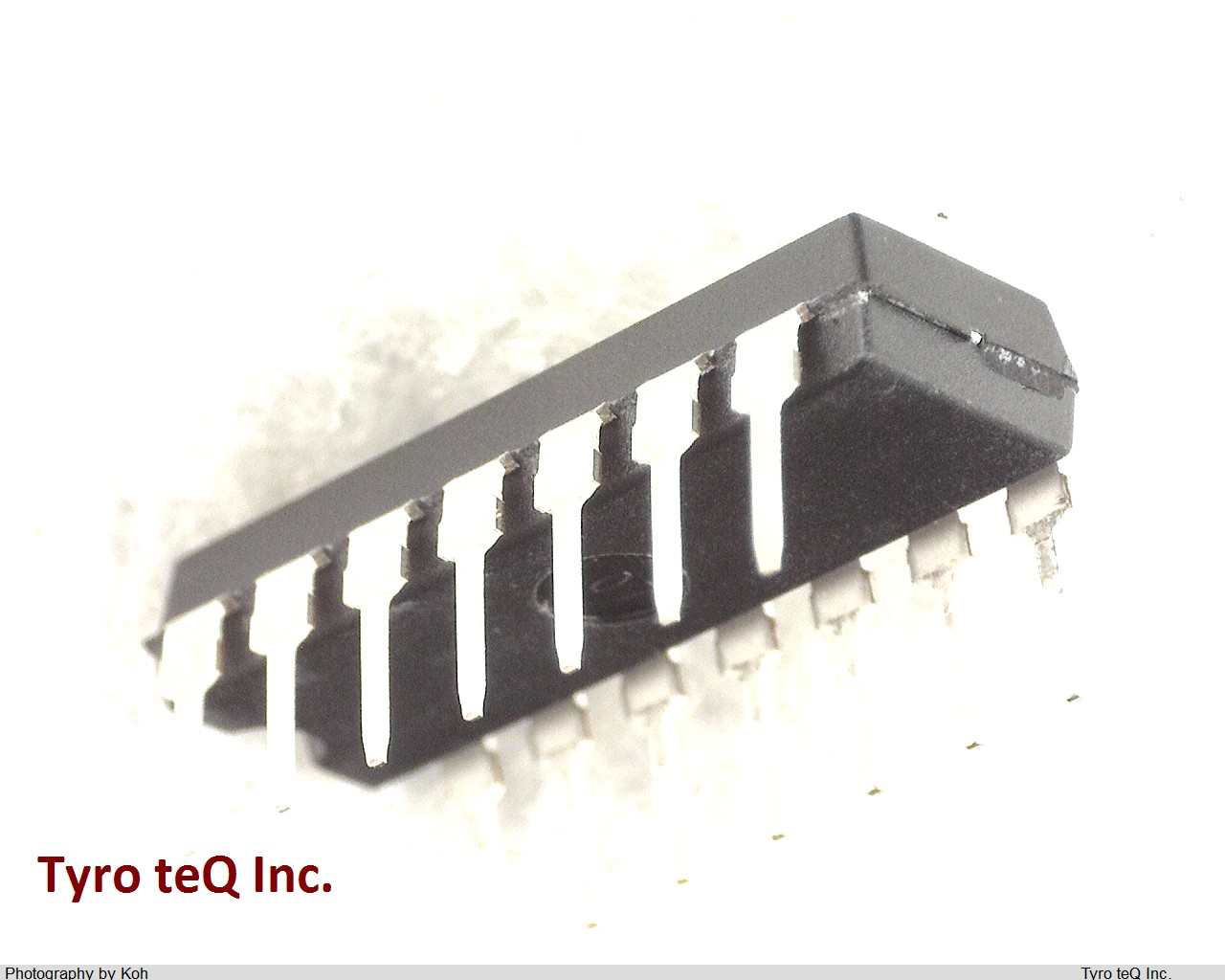

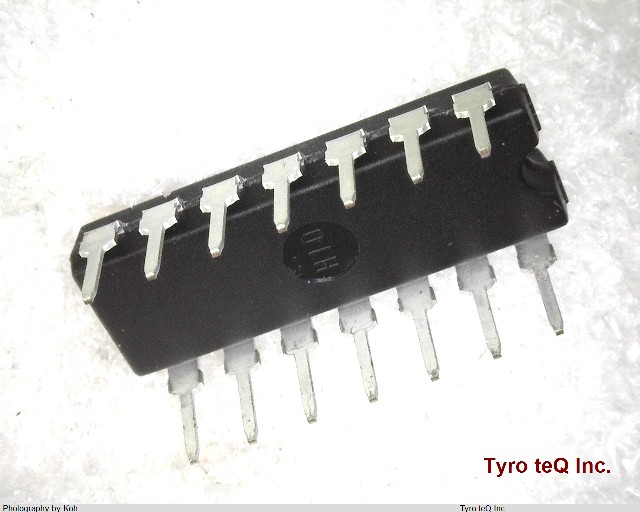

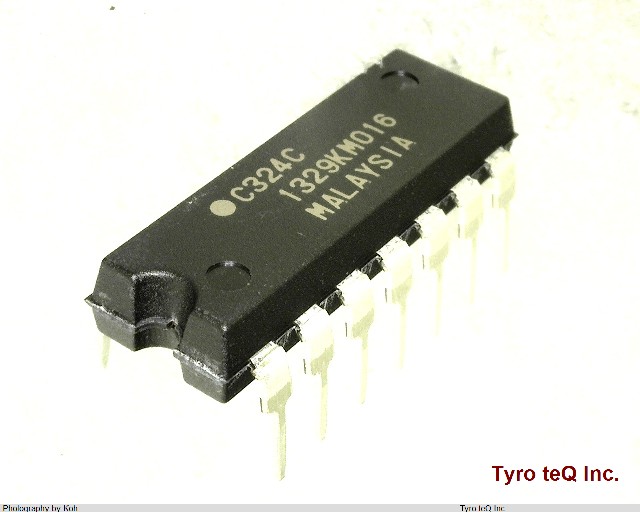

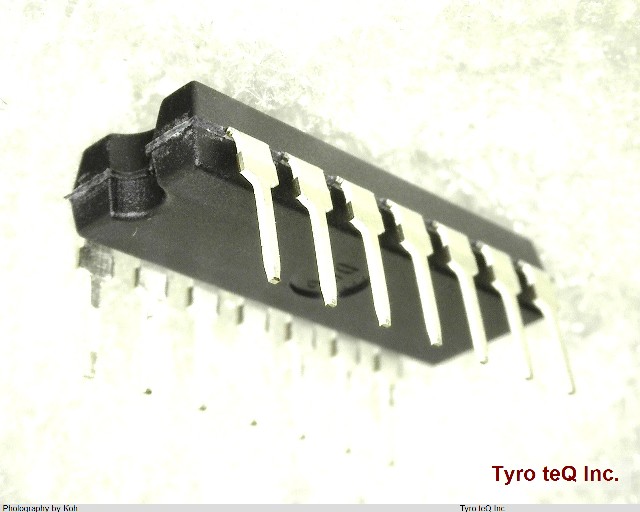

UPC324C-A データシート

Name: UPC324C-A
Brand: RENESAS
SKU: 310000684-0000-0000-0000

UPC324C-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC324C-A の詳細情報

型番	UPC324C-A
メーカー	RENESAS
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.25 uA
Bias Current-Max (IIB) @25C	0.25 uA
Common-mode Reject Ratio-Nom	85 dB
Frequency Compensation	YES
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e6
Length	19.22 mm
Low-Bias	NO
Low-Offset	NO
Micropower	YES
Neg Supply Voltage Limit-Max	-16 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-1.5/+-15/3/30 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	4.5 mm
Sub Category	Operational Amplifier
Supply Current-Max	2 mA
Supply Voltage Limit-Max	16 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Voltage Gain-Min	25000
Wideband	NO
Width	7.62 mm
