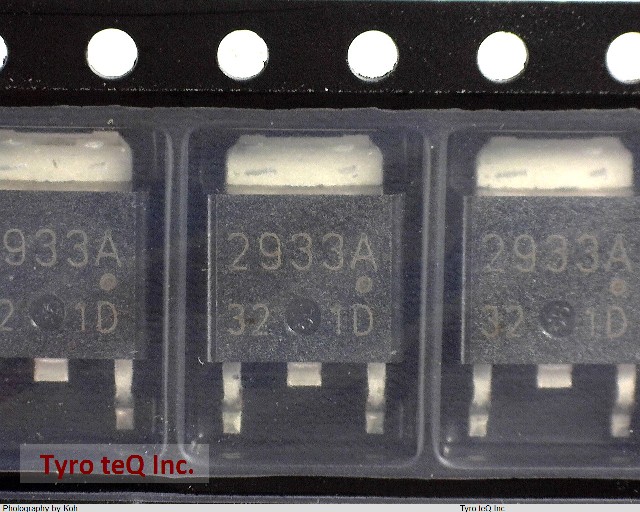

UPC2933ATE2 データシート

Name: UPC2933ATE2
Brand: RENESAS
SKU: 310098621-0000-0000-0000

UPC2933ATE2 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC2933ATE2 の詳細情報

型番	UPC2933ATE2
メーカー	RENESAS
データシート
Adjustability	FIXED
Dropout Voltage1-Max	1 V
Dropout Voltage1-Nom	0.7 V
Input Voltage Absolute-Max	20 V
Input Voltage-Max	16 V
Input Voltage-Min	4.3 V
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e0
Length	6.5 mm
Line Regulation-Max	0.033 %
Load Regulation-Max	0.033 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-30 Cel
Output Current1-Max	1 A
Output Voltage1-Max	3.46 V
Output Voltage1-Min	3.14 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-252
Package Equivalence Code	SMSIP3H,.38,90TB
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	2.5 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	4.8 %
Width	5.5 mm
