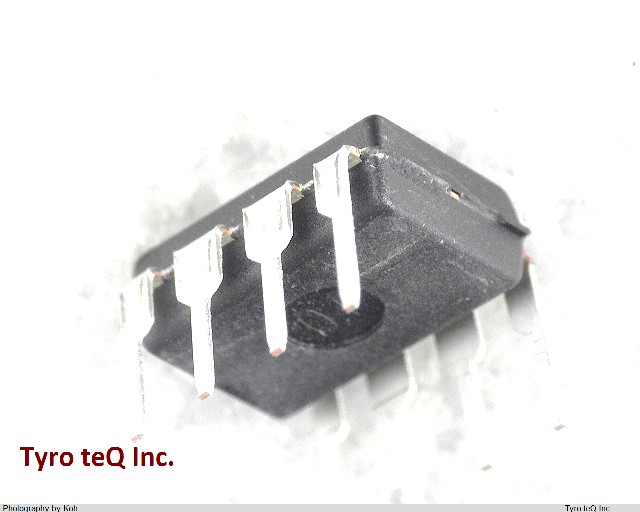

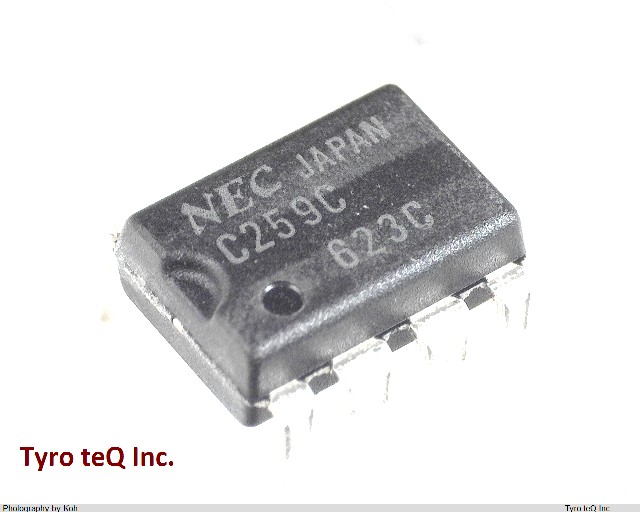

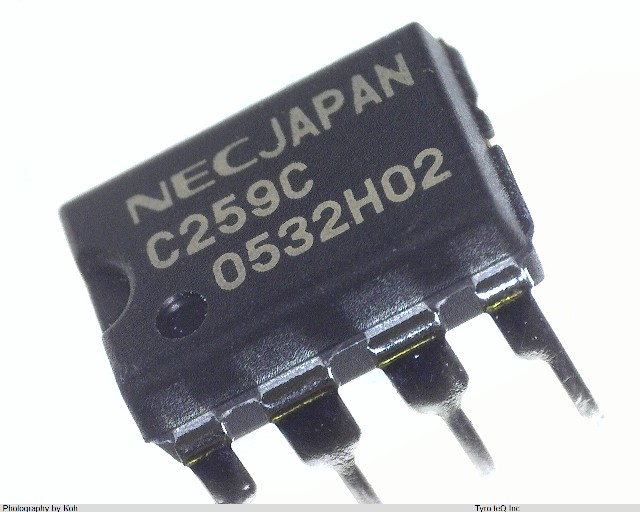

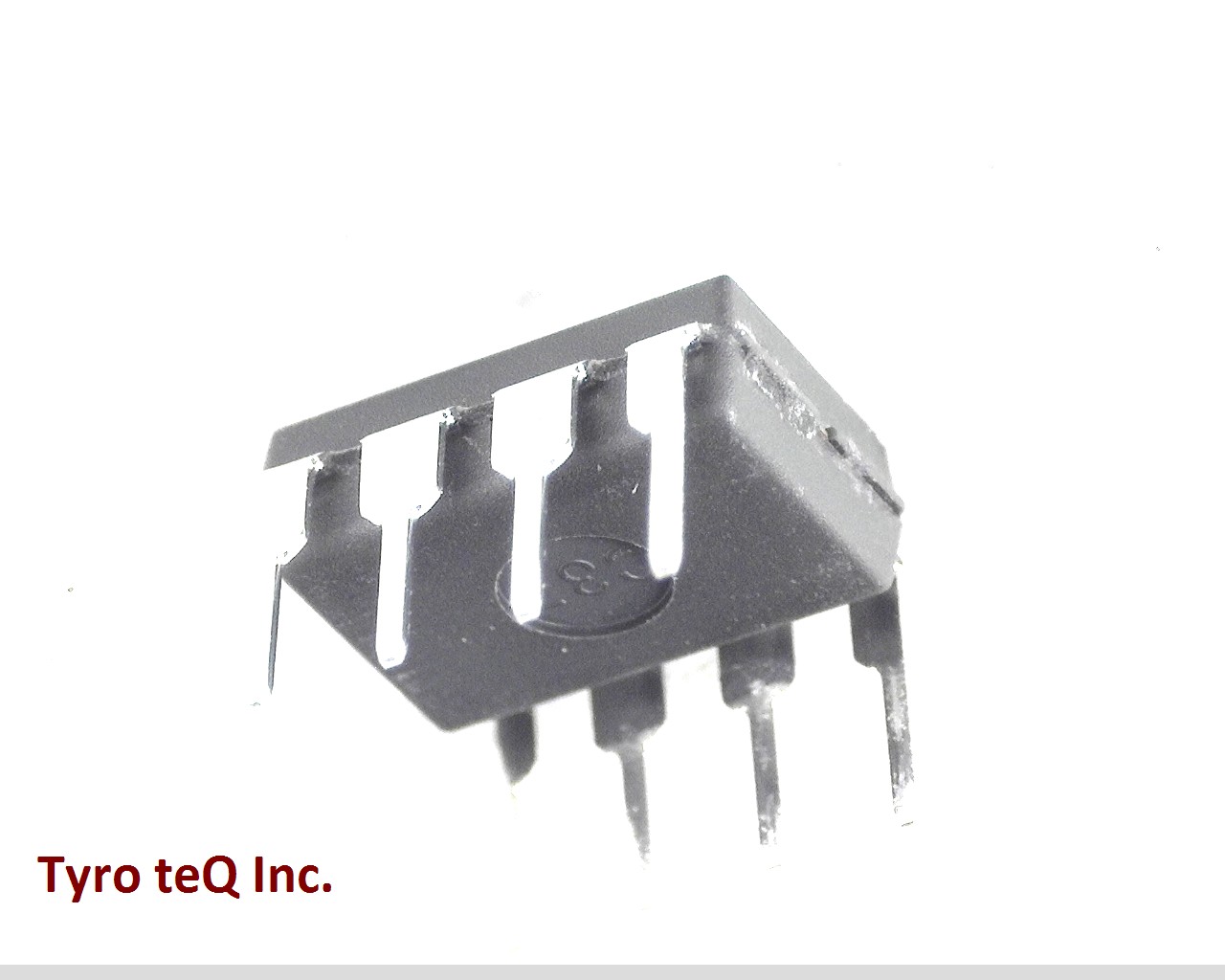

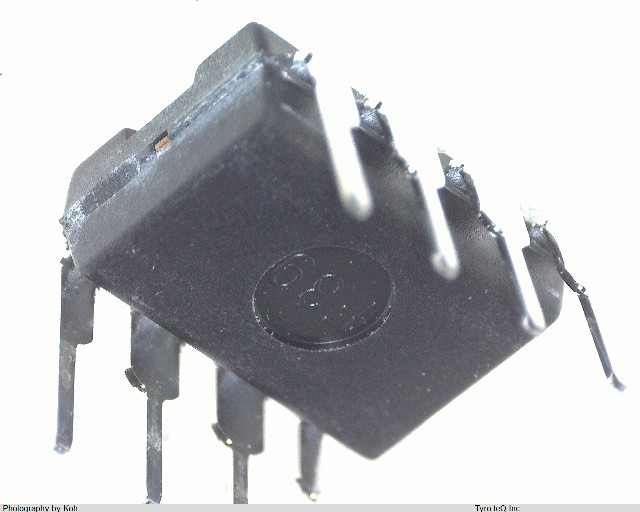

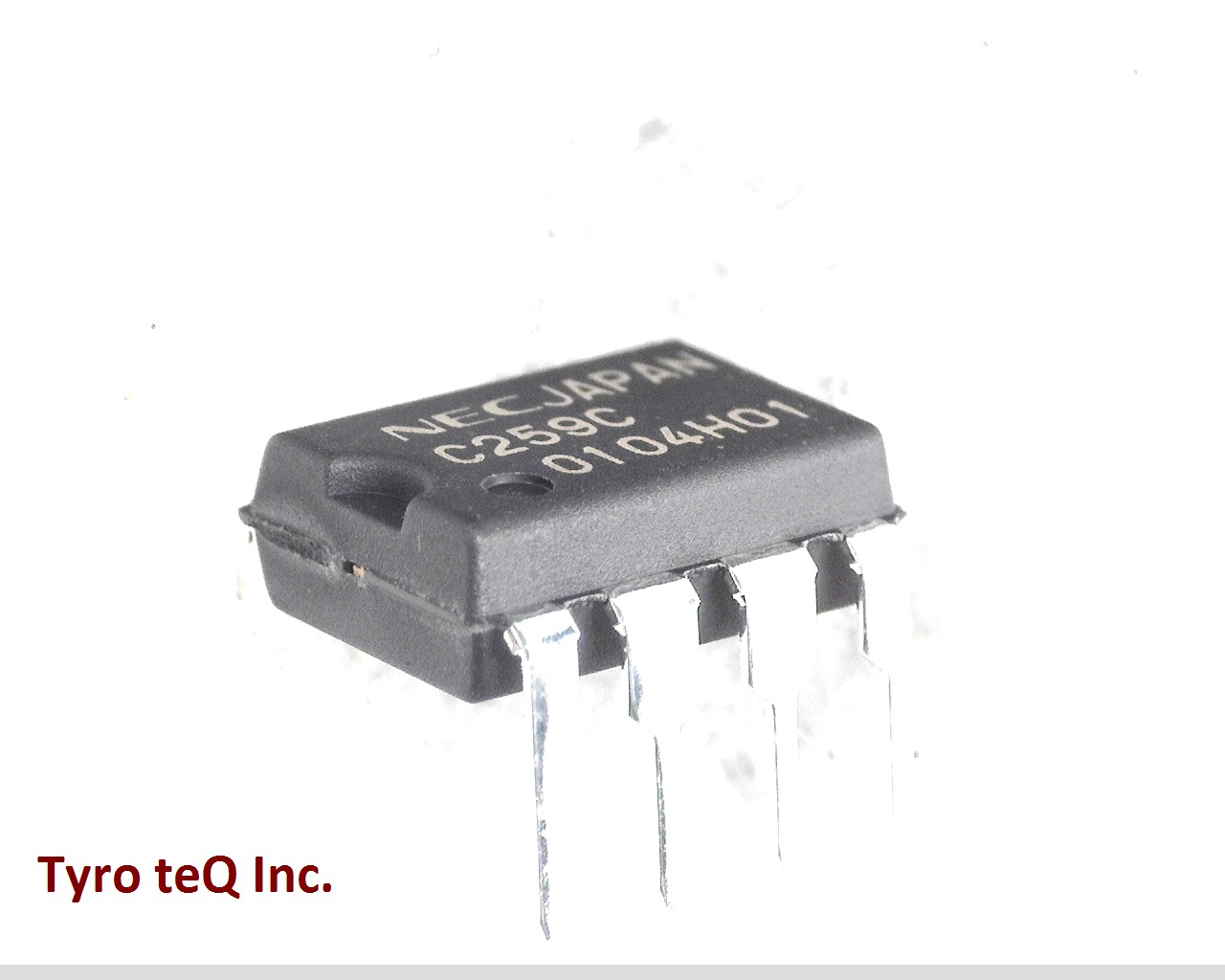

UPC259C データシート

Name: UPC259C
Brand: RENESAS
SKU: 310004555-0000-0000-0000

UPC259C - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC259C の詳細情報

型番	UPC259C
メーカー	RENESAS
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.5 uA
Bias Current-Max (IIB) @25C	0.5 uA
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	100 dB
Frequency Compensation	YES
Input Offset Voltage-Max	6000 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Low-Offset	NO
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.8 mm
Slew Rate-Nom	2.8 V/us
Sub Category	Operational Amplifiers
Supply Current-Max	5.7 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Unity Gain BW-Nom	10000 kHz
Voltage Gain-Min	20000
Width	7.62 mm
