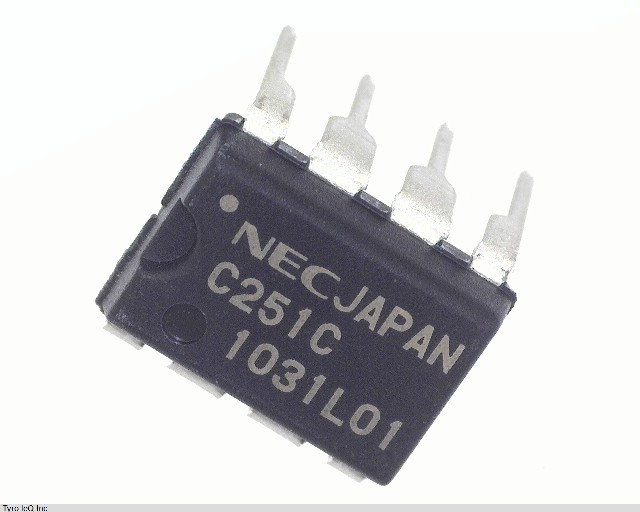

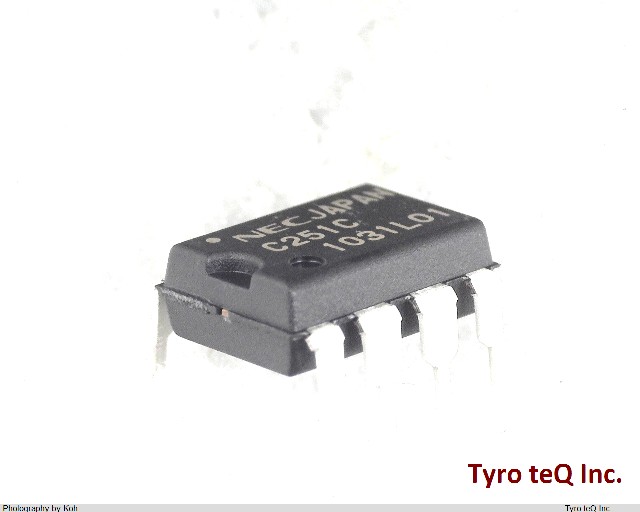

UPC251C-A データシート

Name: UPC251C-A
Brand: RENESAS
SKU: 310030383-0000-0000-0000

UPC251C-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC251C-A の詳細情報

型番	UPC251C-A
メーカー	RENESAS
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Bias Current-Max (IIB) @25C	0.5 uA
Frequency Compensation	YES
Input Offset Voltage-Max	6000 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e6
Low-Offset	NO
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Sub Category	Operational Amplifiers
Supply Current-Max	5.6 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Voltage Gain-Min	20000
