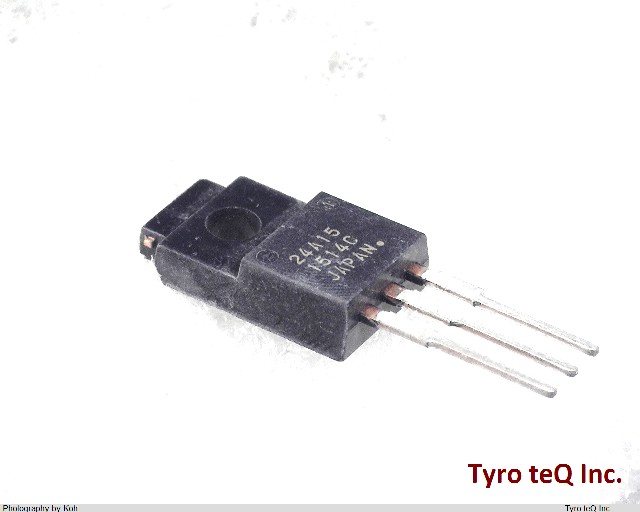

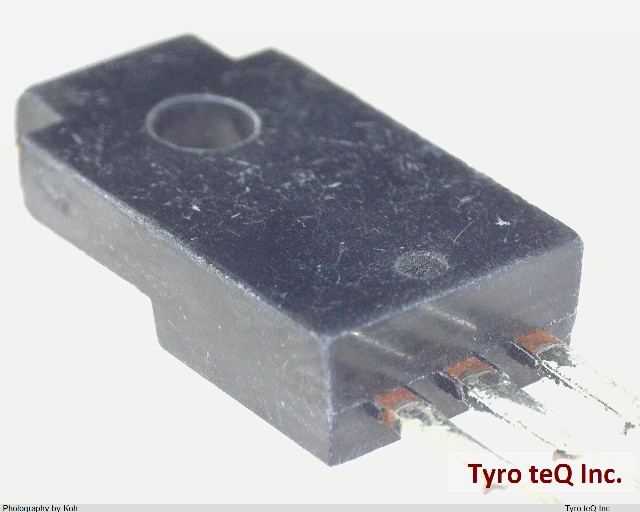

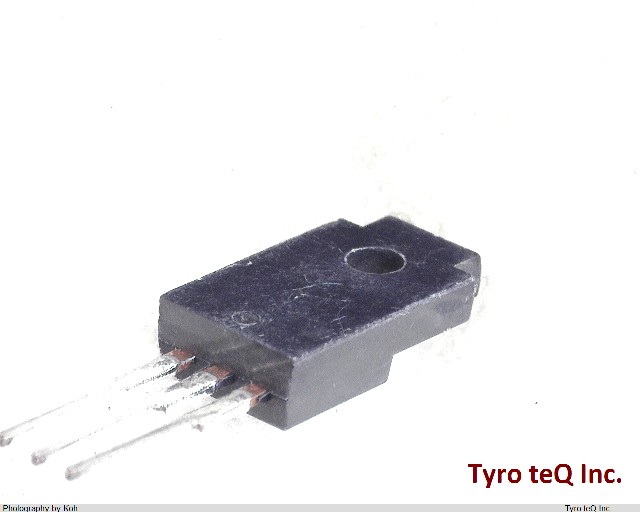

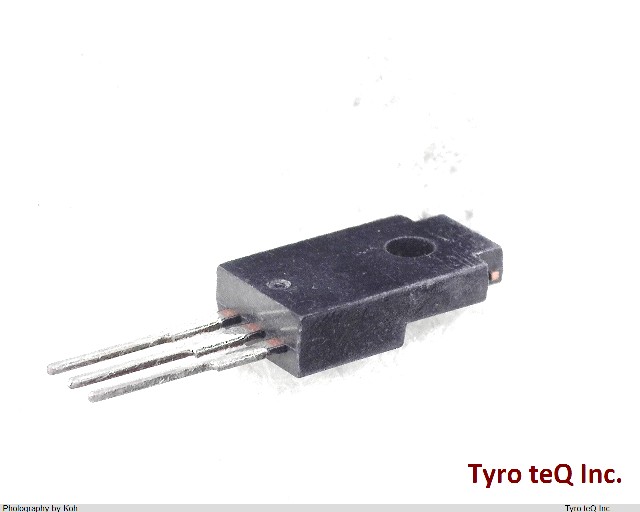

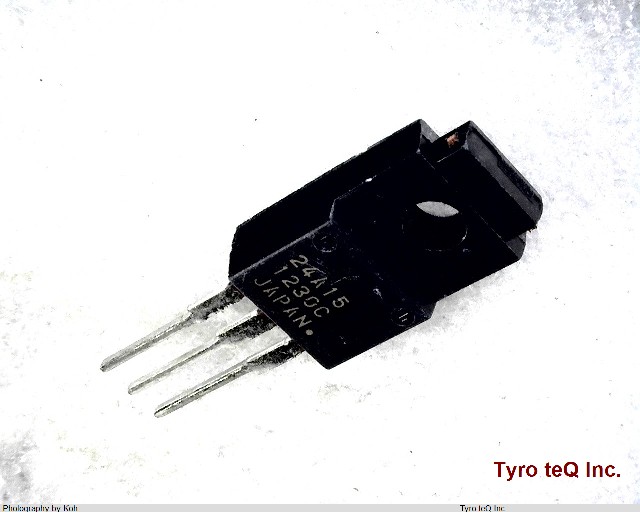

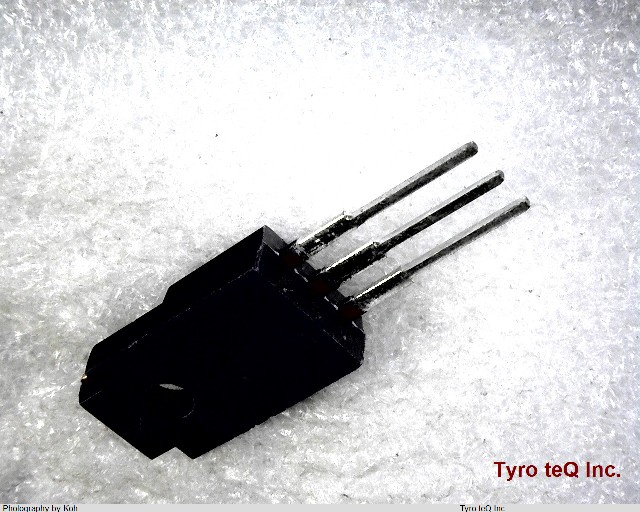

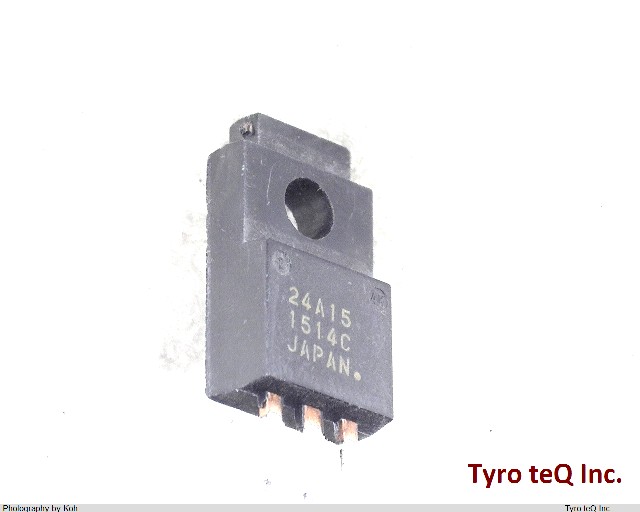

UPC24A15HF-AZ データシート

Name: UPC24A15HF-AZ
Brand: RENESAS
SKU: 310084446-0000-0000-0000

UPC24A15HF-AZ - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC24A15HF-AZ の詳細情報

型番	UPC24A15HF-AZ
メーカー	RENESAS
データシート
Adjustability	FIXED
Dropout Voltage1-Max	1 V
Input Voltage Absolute-Max	36 V
Input Voltage-Max	25 V
Input Voltage-Min	16 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e6
Line Regulation-Max	0.15 %
Load Regulation-Max	0.15 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	150 Cel
Operating Temperature, TJ-Min	-20 Cel
Output Current1-Max	2 A
Output Voltage1-Max	15.45 V
Output Voltage1-Min	14.55 V
Output Voltage1-Nom	15 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1ISO-TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	10
Voltage Tolerance-Max	3 %
