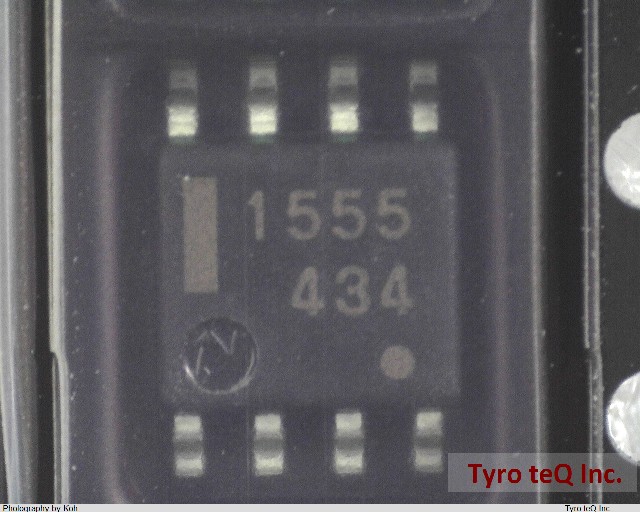

UPC1555G2-A データシート

Name: UPC1555G2-A
Brand: RENESAS
SKU: 310023626-0000-0000-0000

UPC1555G2-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC1555G2-A の詳細情報

型番	UPC1555G2-A
メーカー	RENESAS
データシート
Analog IC - Other Type	PULSE; RECTANGULAR
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3/e6
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-20 Cel
Output Frequency-Max	0.1 GHz
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	1.8 mm
Sub Category	Analog Waveform Generation Functions
Supply Current-Max (Isup)	15 mA
Supply Voltage-Max (Vsup)	16 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN/TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Width	4.4 mm
