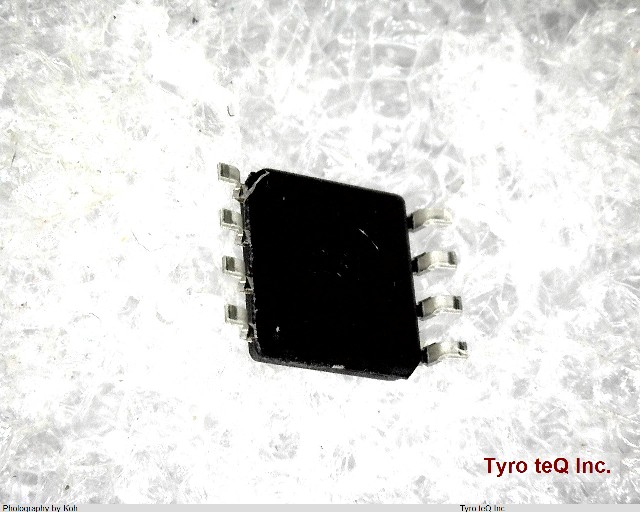

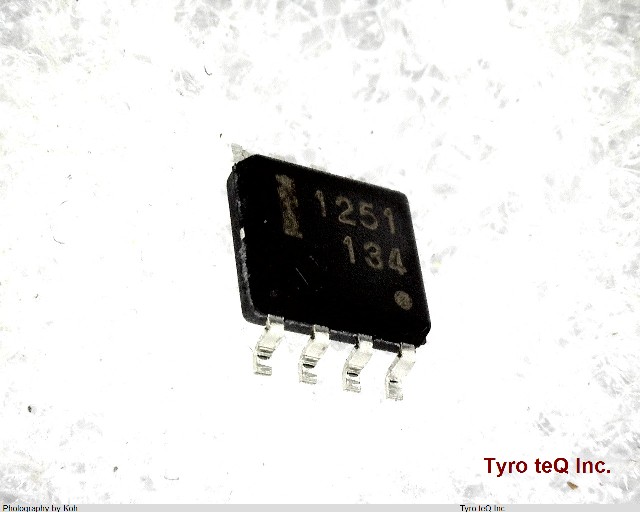

UPC1251G2-A データシート

Name: UPC1251G2-A
Brand: RENESAS
SKU: 310030373-0000-0000-0000

UPC1251G2-A - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPC1251G2-A の詳細情報

型番	UPC1251G2-A
メーカー	RENESAS
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.25 uA
Bias Current-Max (IIB) @25C	0.25 uA
Common-mode Reject Ratio-Min	65 dB
Common-mode Reject Ratio-Nom	70 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.05 uA
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e6
Length	5.2 mm
Low-Bias	NO
Low-Offset	NO
Micropower	YES
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power	NO
Programmable Power	NO
Seated Height-Max	1.8 mm
Sub Category	Operational Amplifier
Supply Current-Max	1.2 mA
Supply Voltage Limit-Max	32 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Voltage Gain-Min	25000
Width	4.4 mm
