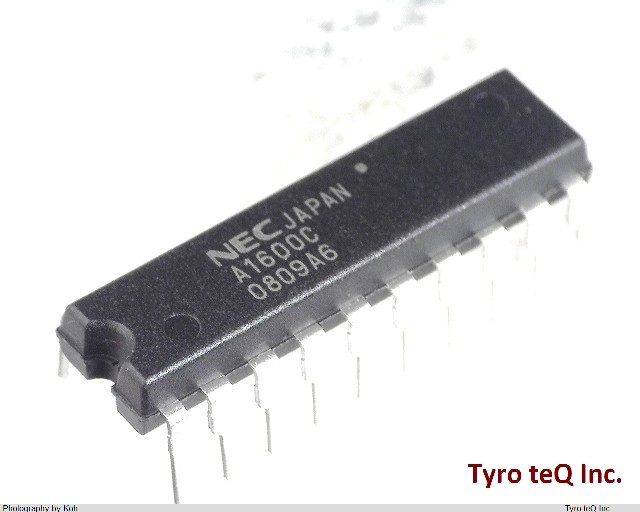

UPA1600CX データシート

Name: UPA1600CX
Brand: RENESAS
SKU: 310095159-0000-0000-0000

UPA1600CX - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

UPA1600CX の詳細情報

型番	UPA1600CX
メーカー	RENESAS
データシート
Configuration	SEPARATE, 8 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR
DS Breakdown Voltage-Min	30 V
Drain Current-Max (ID)	0.5 A
Drain-source On Resistance-Max	4 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Number of Elements	8
Number of Terminals	20
Operating Mode	ENHANCEMENT MODE
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Qualification Status	Not Qualified
Surface Mount	NO
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	SWITCHING
Transistor Element Material	SILICON
