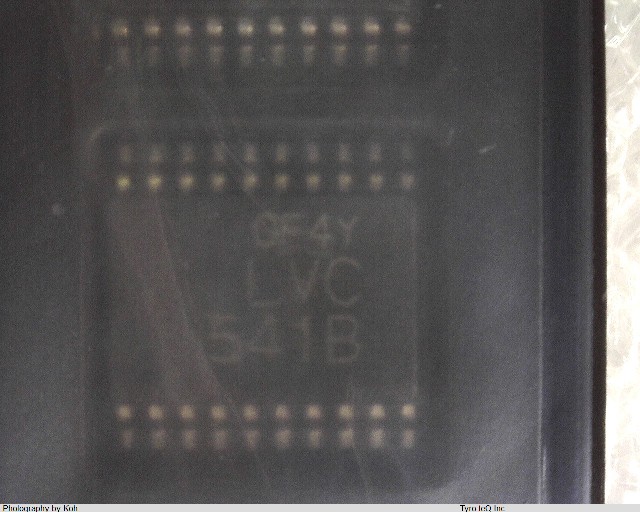

RD74LVC541BTELL データシート

Name: RD74LVC541BTELL
Brand: RENESAS
SKU: 280254871-0000-0000-0000

RD74LVC541BTELL - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

RD74LVC541BTELL の詳細情報

型番	RD74LVC541BTELL
メーカー	RENESAS
データシート
Control Type	ENABLE LOW
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G20
Length	6.5 mm
Logic IC Type	BUS DRIVER
Max I(ol)	0.024 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	5.1 ns
Propagation Delay (tpd)	15.7 ns
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	4.4 mm
