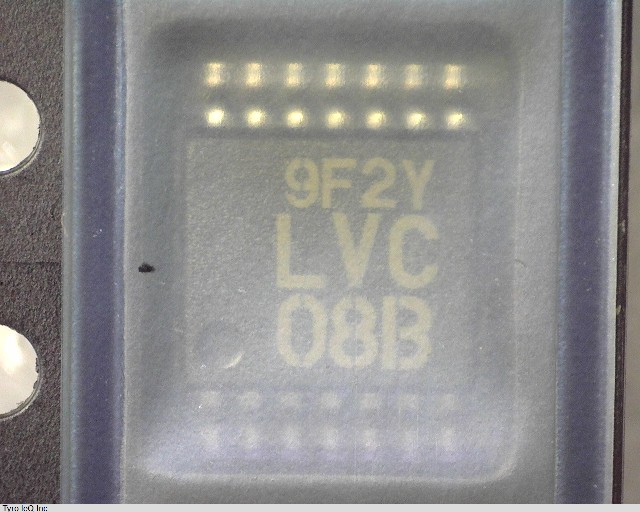

RD74LVC08BTELL データシート

Name: RD74LVC08BTELL
Brand: RENESAS
SKU: 280273063-0000-0000-0000

RD74LVC08BTELL - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

RD74LVC08BTELL の詳細情報

型番	RD74LVC08BTELL
メーカー	RENESAS
データシート
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G14
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	AND GATE
Max I(ol)	0.024 Amp
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Power Supplies	3.3 V
Prop. Delay@Nom-Sup	4.1 ns
Propagation Delay (tpd)	9.8 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.1 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	4.4 mm
