RD6.8E データシート

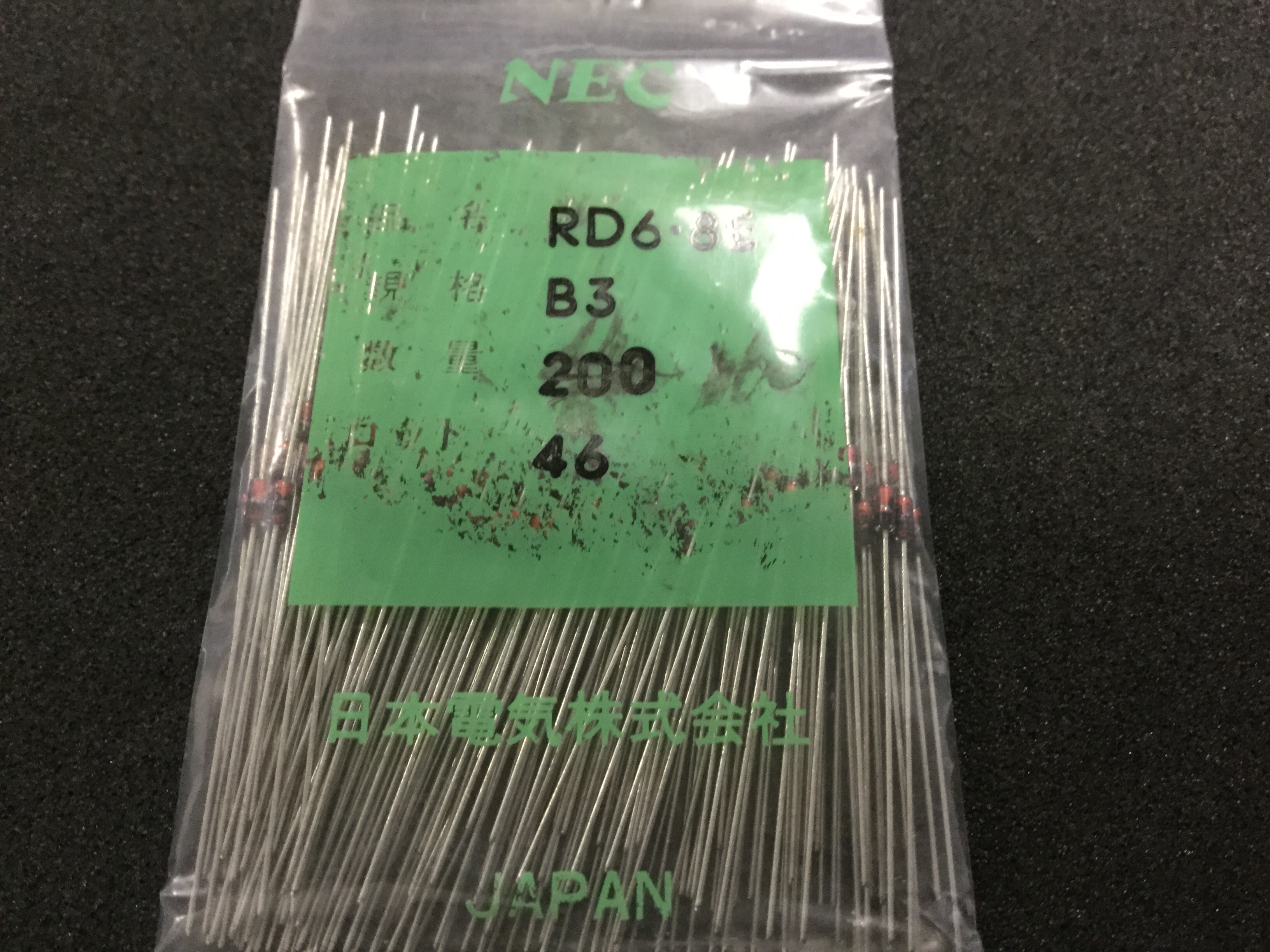

Name: RD6.8E
Brand: RENESAS
SKU: 280420794-0000-0000-0000

RD6.8E - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

定電圧ツェナーダイオード | ガラス封止DHD（Double Heatsink Diode）構造 | 50mW

RD6.8E の詳細情報

型番	RD6.8E
メーカー	RENESAS
データシート
Additional Feature	HIGH RELIABILITY
Case Connection	ISOLATED
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	ZENER DIODE
Dynamic Impedance-Max	8 ohm
JEDEC-95 Code	DO-34
JESD-30 Code	O-LALF-W2
JESD-609 Code	e0
Knee Impedance-Max	150 ohm
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Package Body Material	GLASS
Package Shape	ROUND
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	260
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	0.4 W
Qualification Status	Not Qualified
Reference Standard	TS 16949
Reference Voltage-Nom	6.46 V
Reverse Current-Max	1 uA
Reverse Test Voltage	3.5 V
Sub Category	Voltage Reference Diodes
Surface Mount	NO
Technology	ZENER
Terminal Finish	TIN LEAD
Terminal Form	WIRE
Terminal Position	AXIAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tol-Max	1.98 %
Working Test Current	2 mA
