RD4.7JS AB3 データシート

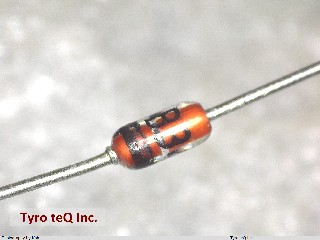

Name: RD4.7JS AB3
Brand: RENESAS
SKU: 280427573-0000-0000-0000

RD4.7JS AB3 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

RD4.7JS AB3 の詳細情報

型番	RD4.7JS AB3
メーカー	RENESAS
データシート
Additional Feature	HIGH RELIABILITY
Case Connection	ISOLATED
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	ZENER DIODE
Dynamic Impedance-Max	100 ohm
JEDEC-95 Code	DO-34
JESD-30 Code	O-LALF-W2
JESD-609 Code	e0
Knee Impedance-Max	800 ohm
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	175 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	GLASS
Package Shape	ROUND
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	0.4 W
Qualification Status	Not Qualified
Reference Standard	TS 16949
Reference Voltage-Nom	4.7 V
Reverse Current-Max	2 uA
Reverse Test Voltage	1 V
Sub Category	Voltage Reference Diodes
Surface Mount	NO
Technology	ZENER
Terminal Finish	TIN LEAD
Terminal Form	WIRE
Terminal Position	AXIAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tol-Max	2.19 %
Working Test Current	5 mA
