RD10EB2 データシート

Name: RD10EB2
Brand: RENESAS
SKU: 280415007-0000-0000-0000

RD10EB2 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

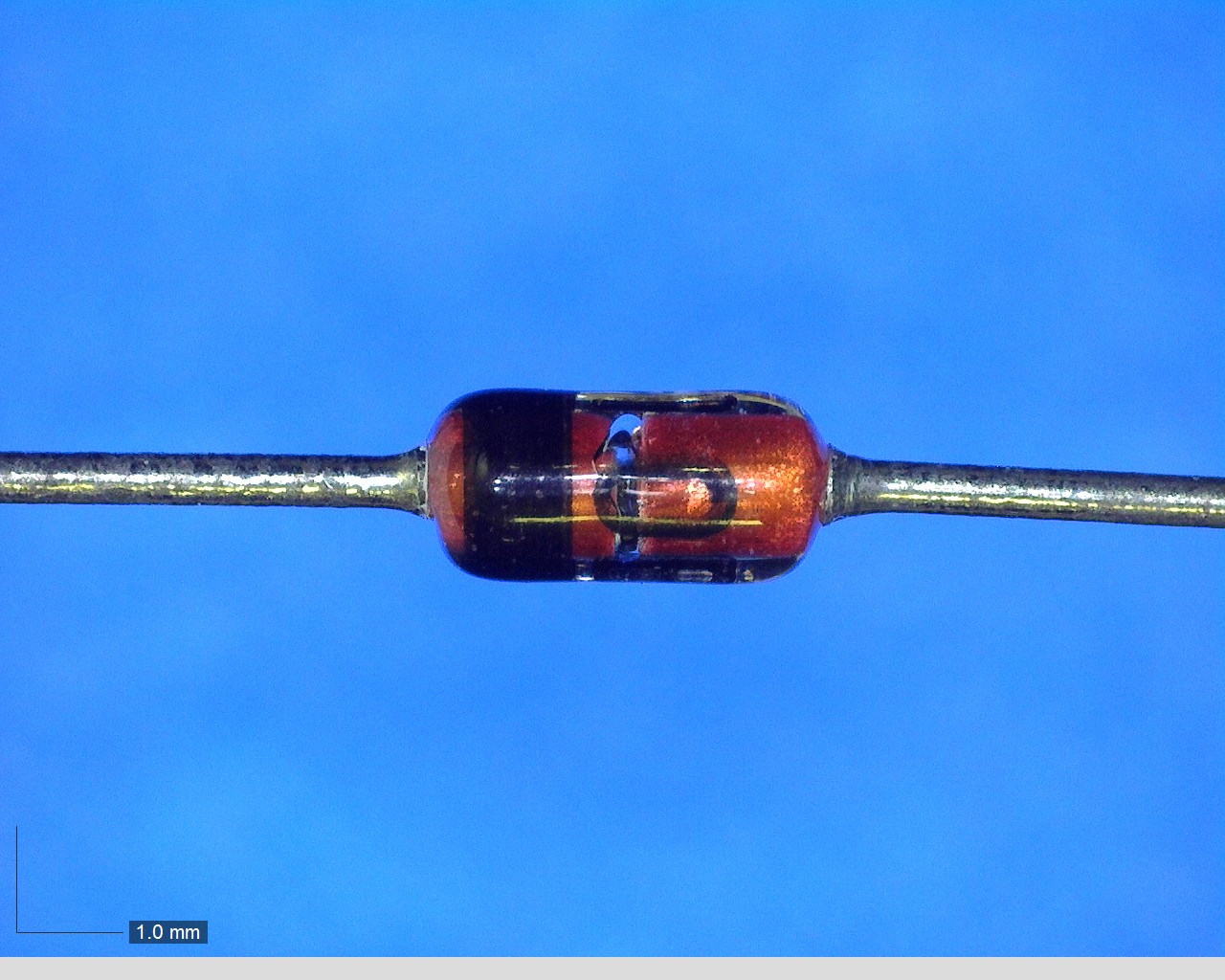

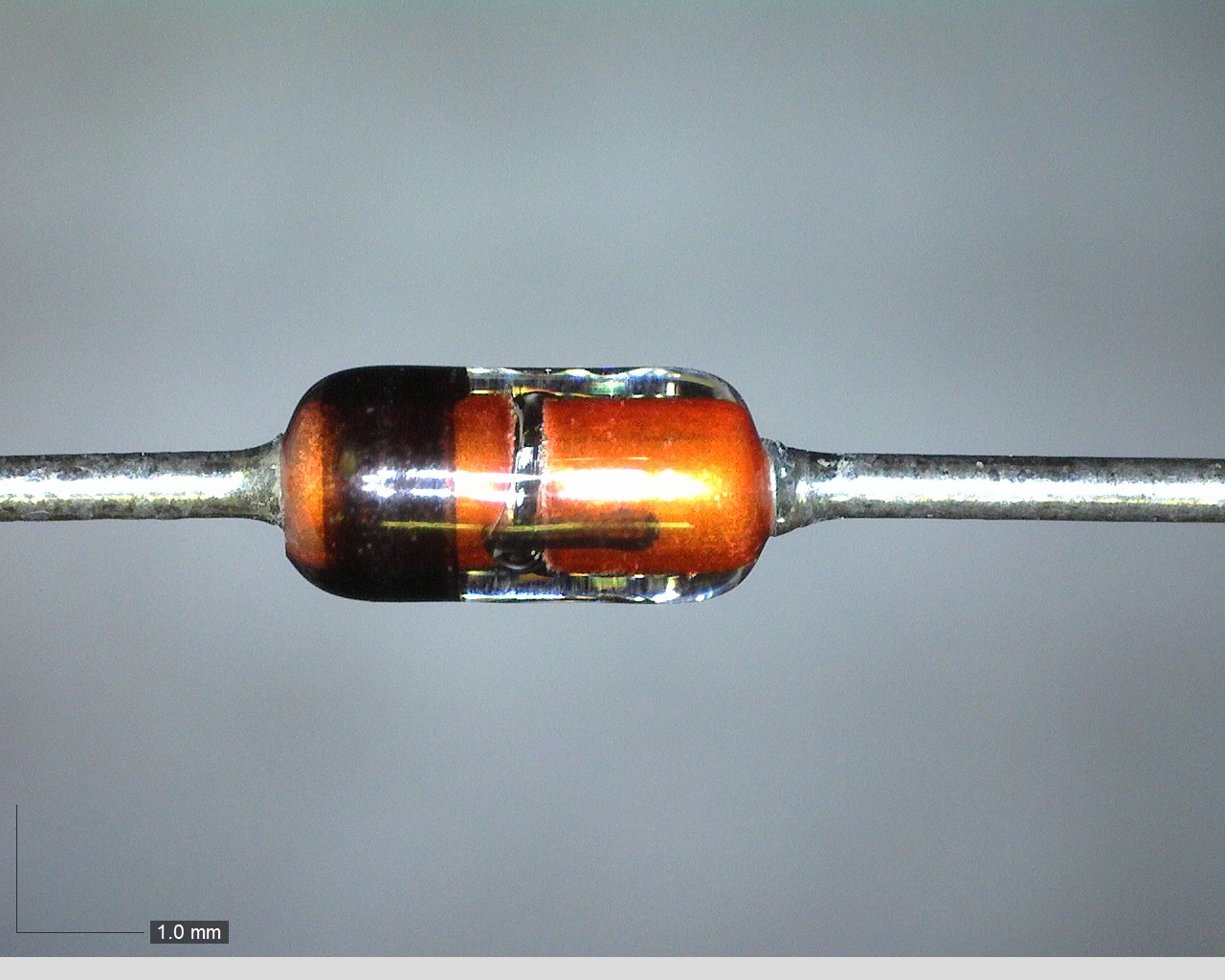

定電圧ツェナーダイオード | ガラス封止DHD（Double Heatsink Diode）構造 | 50mW|電圧 MIN9.48～MAX9.90 Iz(mA) 20

RD10EB2 の詳細情報

型番	RD10EB2
メーカー	RENESAS
データシート
Additional Feature	HIGH RELIABILITY
Case Connection	ISOLATED
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	ZENER DIODE
Dynamic Impedance-Max	8 ohm
JEDEC-95 Code	DO-35
JESD-30 Code	O-LALF-W2
JESD-609 Code	e0
Knee Impedance-Max	120 ohm
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	GLASS
Package Shape	ROUND
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	0.5 W
Qualification Status	Not Qualified
Reference Voltage-Nom	9.69 V
Reverse Current-Max	0.2 uA
Reverse Test Voltage	7 V
Sub Category	Voltage Reference Diodes
Surface Mount	NO
Technology	ZENER
Terminal Finish	TIN LEAD
Terminal Form	WIRE
Terminal Position	AXIAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Temp Coeff-Max	5.5 mV/Cel
Voltage Tol-Max	2.17 %
Working Test Current	20 mA
