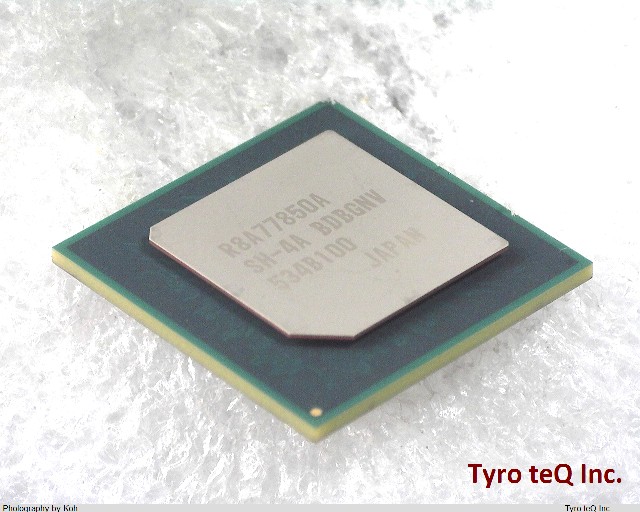

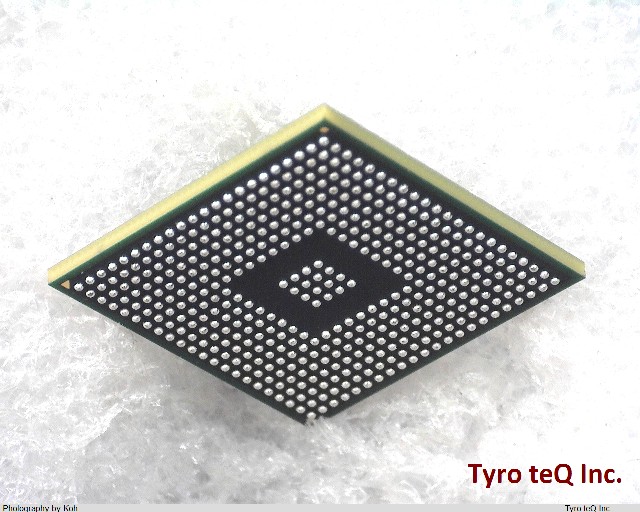

R8A77850BADBGNV

Name: R8A77850BADBGNV
Brand: RENESAS
SKU: 280413374-0000-0000-0000

R8A77850BADBGNV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R8A77850BADBGNV の詳細情報

型番	R8A77850BADBGNV
メーカー	RENESAS
ADC Channels	NO
Address Bus Width	0
Bit Size	32
Boundary Scan	YES
CPU Family	SH-4A
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	0
Format	FLOATING POINT
Integrated Cache	YES
JESD-30 Code	S-PBGA-B436
Length	19 mm
Low Power Mode	YES
Number of DMA Channels	12
Number of External Interrupts	9
Number of I/O Lines	108
Number of Terminals	436
Number of Timers	6
On Chip Data RAM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	FBGA
Package Equivalence Code	BGA436,22X22,32
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peripherals	DMA(12), TIMER(6), WDT
RAM (bytes)	155648
ROM (words)	0
Seated Height-Max	2.6 mm
Speed	600 rpm
Supply Voltage-Nom	1.1 V
Surface Mount	YES
Technology	CMOS
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Width	19 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
