R8A77800BNBGV データシート

Name: R8A77800BNBGV
Brand: RENESAS
SKU: 280046194-0000-0000-0000

R8A77800BNBGV - RENESAS の商品詳細ページです。

No Image

２営業日以内に回答いたします

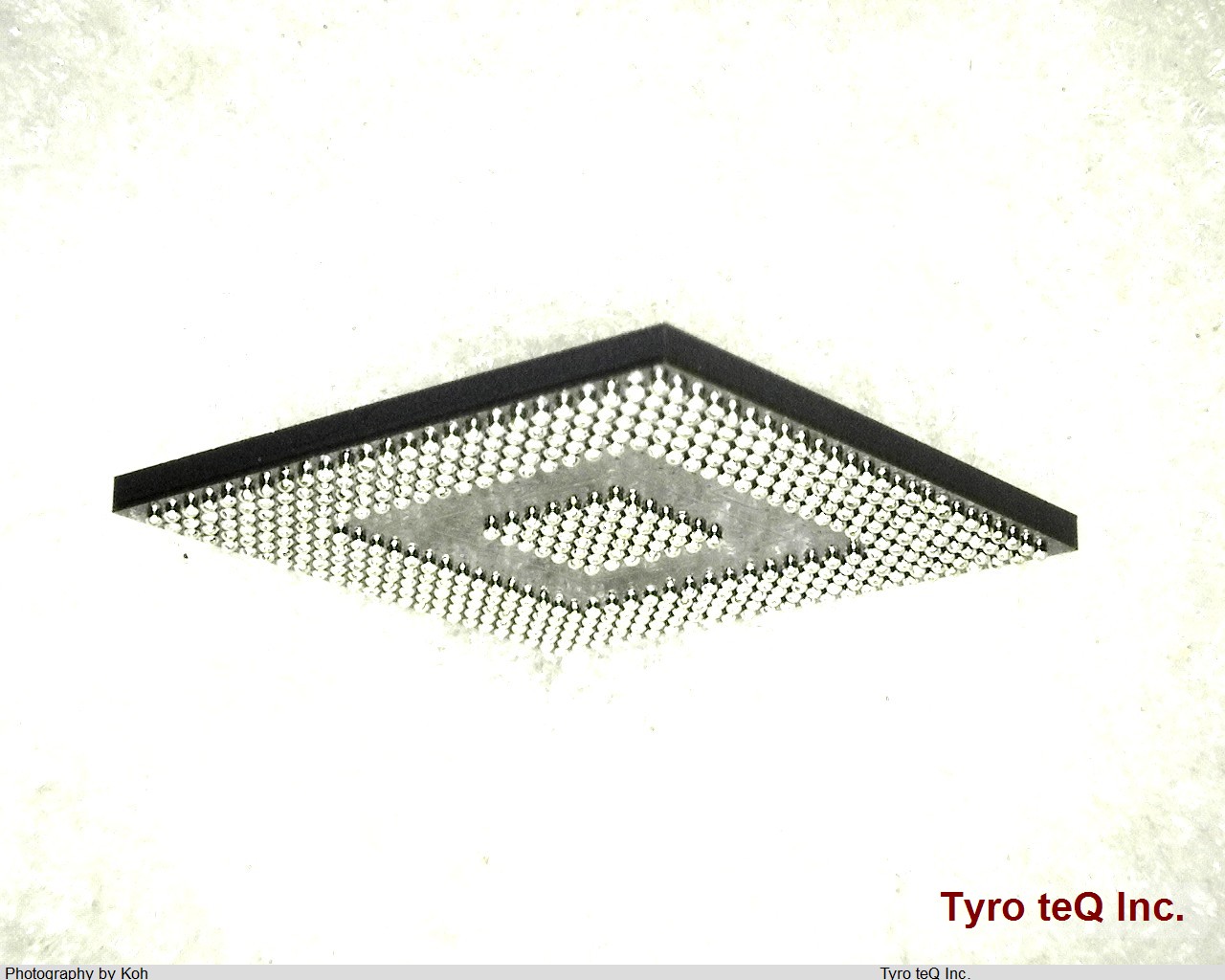

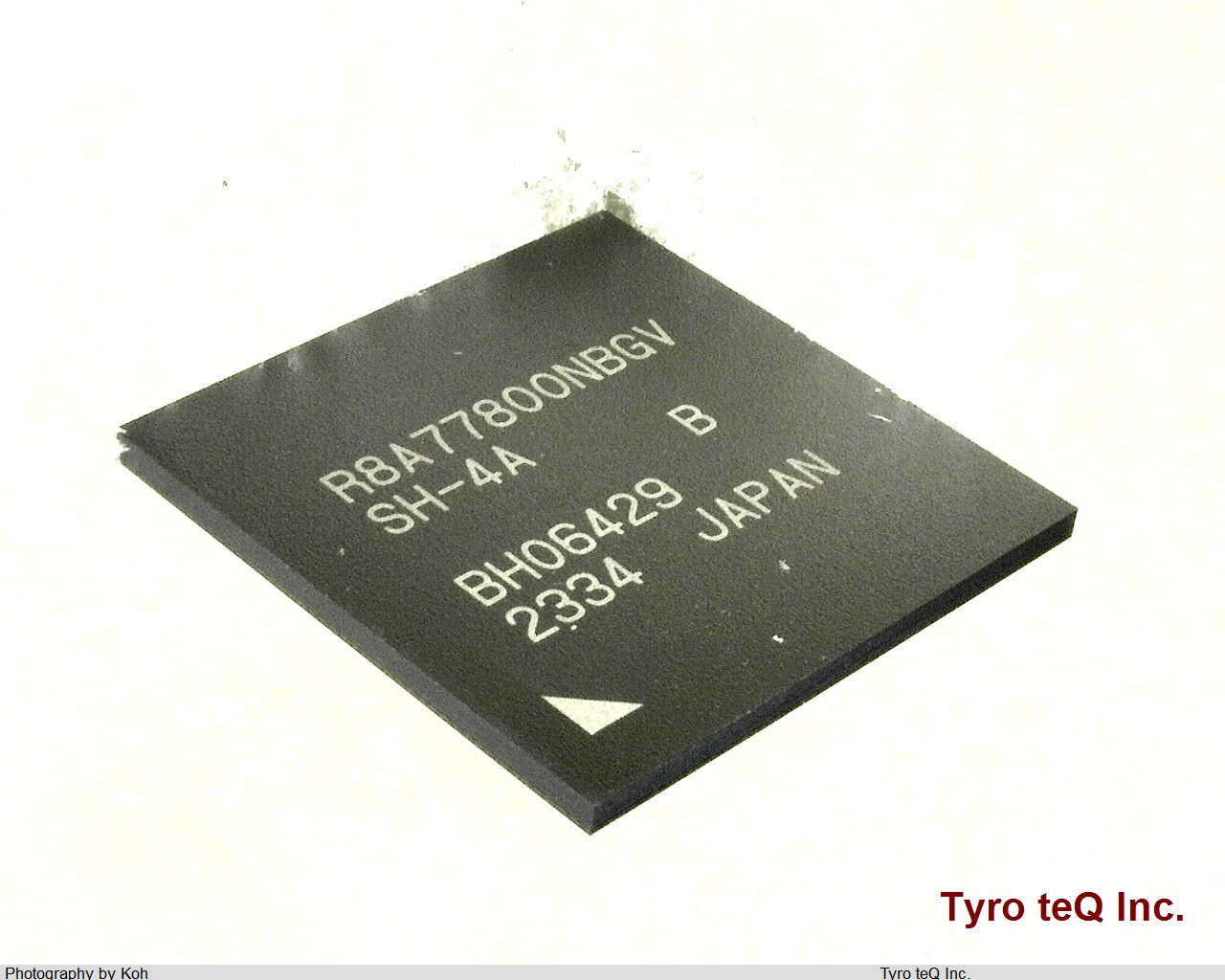

R8A77800BNBGV の詳細情報

型番	R8A77800BNBGV
メーカー	RENESAS
データシート
ADC Channels	NO
Address Bus Width	0
Bit Size	32
Connectivity	CSI(4), SPI, UART(2)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	0
JESD-30 Code	S-PBGA-B449
Length	21 mm
Number of I/O Lines	83
Number of Terminals	449
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	FBGA
Package Shape	SQUARE
Package Style	GRID ARRAY, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	DMA(12), POR, RTC, TIMER(10), WDT
RAM (bytes)	16384
Seated Height-Max	1.9 mm
Speed	400 rpm
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	21 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
