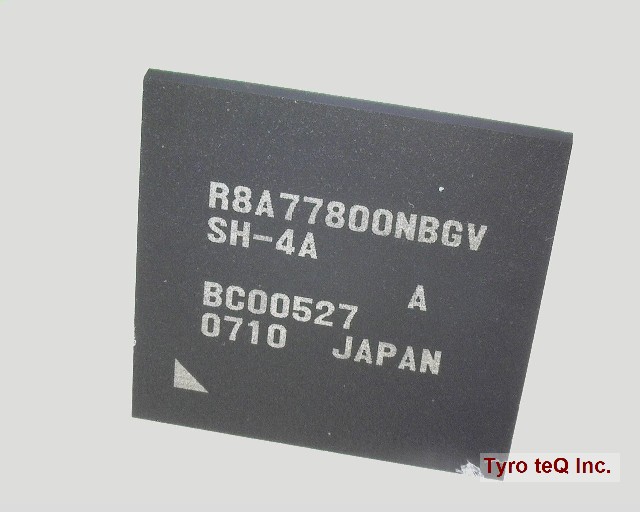

R8A77800ANBGV データシート

Name: R8A77800ANBGV
Brand: RENESAS
SKU: 280046193-0000-0000-0000

R8A77800ANBGV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R8A77800ANBGV の詳細情報

型番	R8A77800ANBGV
メーカー	RENESAS
データシート
ADC Channels	NO
Additional Feature	ALSO REQUIRES 3.3V I/O SUPPLY
Address Bus Width	26
Bit Size	32
CPU Family	SH7000
Clock Frequency-Max	33.4 MHz
DAC Channels	NO
DMA Channels	YES
External Data Bus Width	32
JESD-30 Code	S-PBGA-B449
Length	21 mm
Moisture Sensitivity Level	3
Number of I/O Lines	83

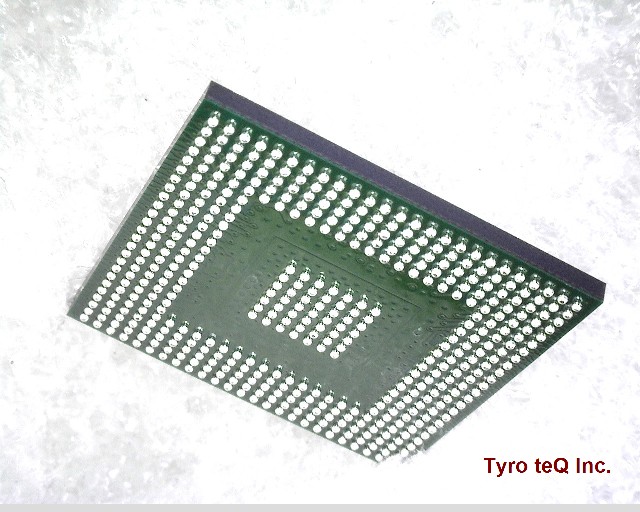

Number of Terminals	449
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	FBGA
Package Equivalence Code	BGA449,25X25,32
Package Shape	SQUARE
Package Style	GRID ARRAY, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.25,2.5,3.3 V
Qualification Status	Not Qualified
RAM (bytes)	16384
ROM Programmability	FLASH
Seated Height-Max	2 mm
Speed	402 rpm
Sub Category	Microcontrollers
Supply Current-Max	1300 mA
Supply Voltage-Max	1.35 V
Supply Voltage-Min	1.15 V
Supply Voltage-Nom	1.25 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	20
Width	21 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
