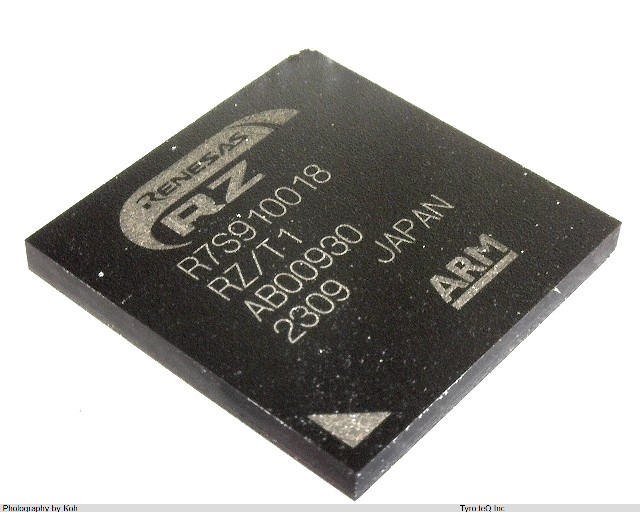

R7S910018CBG データシート

Name: R7S910018CBG
Brand: RENESAS
SKU: 280408722-0000-0000-0000

R7S910018CBG - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R7S910018CBG の詳細情報

型番	R7S910018CBG
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	8-Ch 12-Bit, 16-Ch 12-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	32
Boundary Scan	YES
CPU Family	CORTEX-R4
Clock Frequency-Max	25 MHz
Connectivity	CAN(2), I2C(2), ETHERNET, SCI(5), SPI(4), SSI, USB
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	32
Format	FLOATING POINT
Integrated Cache	YES
JESD-30 Code	S-PBGA-B320
Length	17 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of DMA Channels	32
Number of External Interrupts	20
Number of I/O Lines	209
Number of Terminals	320
Number of Timers	33
On Chip Data RAM Width	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA320,20X20,32
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peripherals	CRC, DMA(32), PWM, TEMPERATURE SENSOR, TIMER(33), WDT
RAM (bytes)	1048576
ROM (words)	0
Seated Height-Max	1.75 mm
Speed	600 rpm
Supply Current-Max	820 mA
Supply Voltage-Max	1.26 V
Supply Voltage-Min	1.14 V
Supply Voltage-Nom	1.2 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE

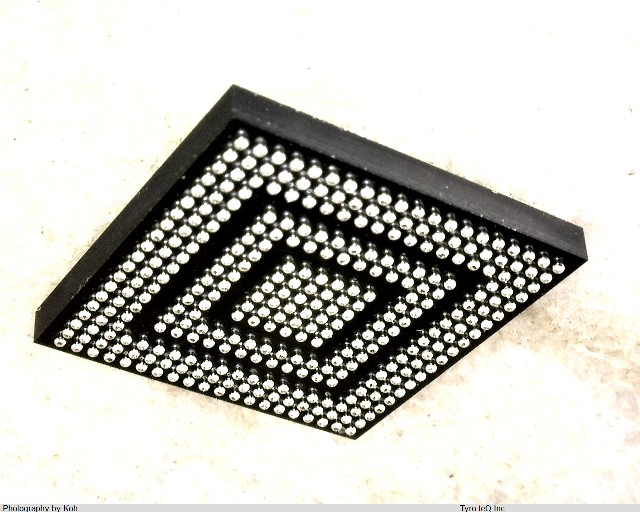

Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Width	17 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
