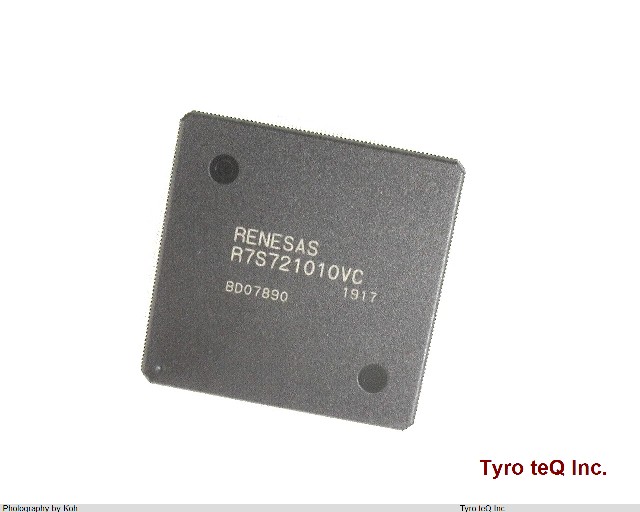

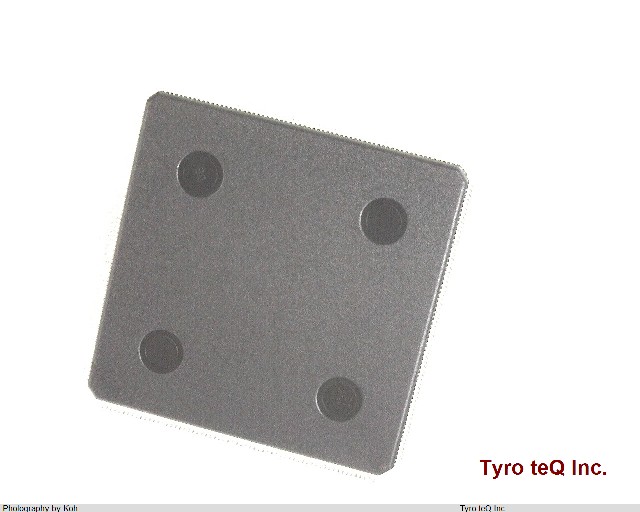

R7S721010VCFP

Name: R7S721010VCFP
Brand: RENESAS
SKU: 400006918-0000-0000-0000

R7S721010VCFP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R7S721010VCFP の詳細情報

型番	R7S721010VCFP
メーカー	RENESAS
A/D Converters	8-Ch 12-Bit
ADC Channels	YES
Address Bus Width	26
Bit Size	32
Boundary Scan	YES
Clock Frequency-Max	48 MHz
Connectivity	CAN(5), ETHERNET(2), I2C(4), IEB, LIN(2), SCI(10), SPDIF, SPI(7), SSI(6), UART, USB(2)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	32
Format	FLOATING POINT
Integrated Cache	YES
JESD-30 Code	S-PQFP-G256
Length	28 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of DMA Channels	16
Number of External Interrupts	8
Number of I/O Lines	137
Number of Serial I/Os	8
Number of Terminals	256
On Chip Data RAM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP256,1.2SQ,16
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	DMA(16), LCD, POR, PWM(2), RTC, TIMER(7), WDT
RAM (bytes)	5242880
RAM (words)	5242880
Seated Height-Max	1.7 mm
Speed	400 rpm
Supply Voltage-Max	1.26 V
Supply Voltage-Min	1.1 V
Supply Voltage-Nom	1.18 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Width	28 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
