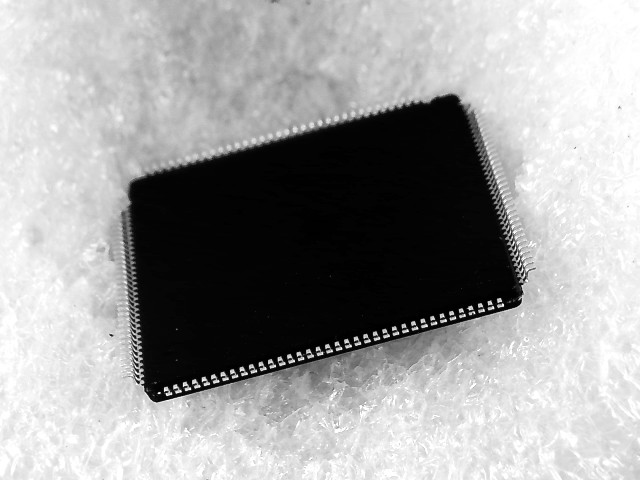

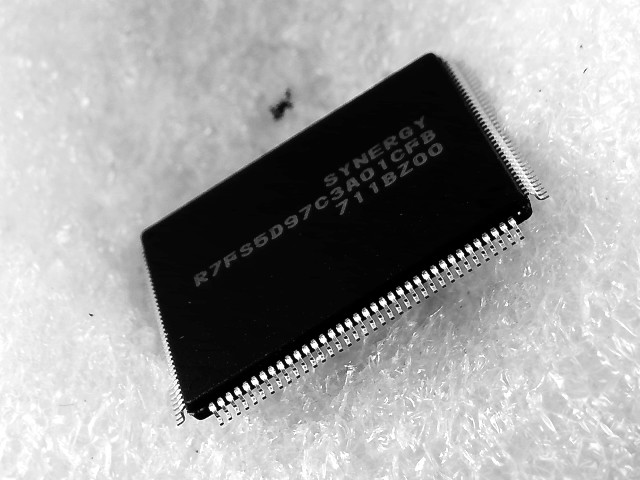

R7FS5D97C3A01CFB#AA0

Name: R7FS5D97C3A01CFB#AA0
Brand: RENESAS
SKU: 280427529-0000-0000-0000

R7FS5D97C3A01CFB#AA0 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R7FS5D97C3A01CFB#AA0 の詳細情報

型番	R7FS5D97C3A01CFB#AA0
メーカー	RENESAS
A/D Converters	22-Ch 12-Bit
ADC Channels	YES
Address Bus Width	24
Bit Size	32
Boundary Scan	YES
CPU Family	CORTEX-M4
Clock Frequency-Max	24 MHz
Connectivity	CAN(2), ETHERNET, IIC(3),QSPI, SCI(10), SPI(2), SSIE(2), SDHI(2), USBFS
D/A Converters	2-Ch 12-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	65536
External Data Bus Width	16
Format	FLOATING POINT
Integrated Cache	YES
JESD-30 Code	S-PQFP-G144
Length	20 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of I/O Lines	110
Number of Serial I/Os	18
Number of Terminals	144
Number of Timers	4
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP144,.86SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	DMA, LCD, POR, RTC, TIMER(16), WDT
RAM (bytes)	655360
ROM (words)	1048576
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	120 rpm
Supply Current-Max	137 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	20 mm
