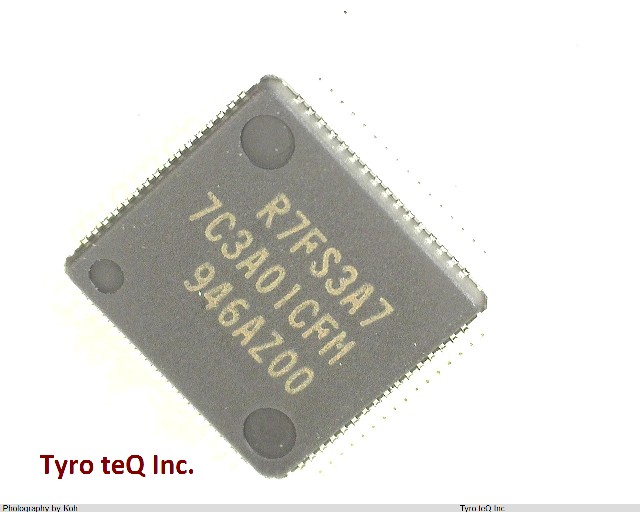

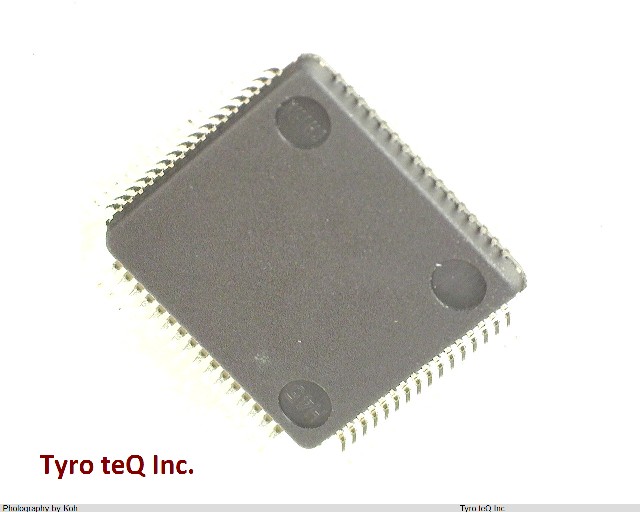

R7FS3A77C3A01CFM#AA1 データシート

Name: R7FS3A77C3A01CFM#AA1
Brand: RENESAS
SKU: 280428026-0000-0000-0000

R7FS3A77C3A01CFM#AA1 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R7FS3A77C3A01CFM#AA1 の詳細情報

型番	R7FS3A77C3A01CFM#AA1
メーカー	RENESAS
データシート
A/D Converters	18-Ch 14-Bit
ADC Channels	YES
Address Bus Width	17
Bit Size	32
Boundary Scan	YES
CPU Family	CORTEX-M4
Clock Frequency-Max	20 MHz
Connectivity	IIC(2), QSPI, SCI(6), SPI(2), SSI, USB
D/A Converters	2-Ch 12-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	1048576
External Data Bus Width	16
Format	FLOATING POINT
Integrated Cache	YES
JESD-30 Code	S-PQFP-G64
Length	10 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of DMA Channels	4
Number of I/O Lines	50
Number of Terminals	64
Number of Timers	12
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP64,.47SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	AES, COMPARATOR(4), CRC, DMA(4), DTC, LVD, POR, PWM, RTC, TIMER(12), WDT
RAM (bytes)	196608
ROM (words)	16384
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	48 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.4 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	10 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
