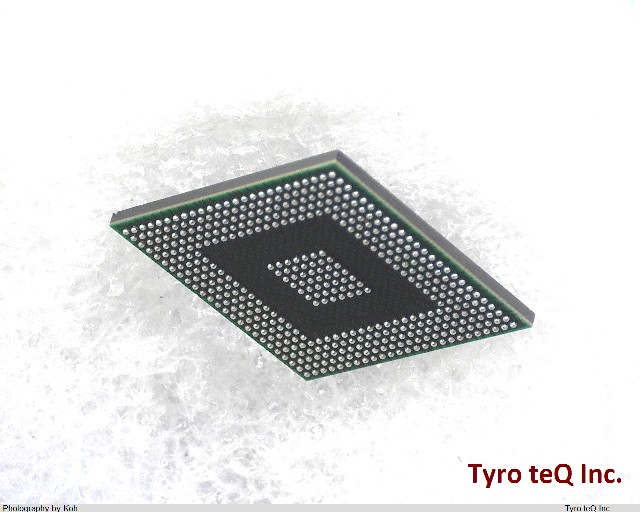

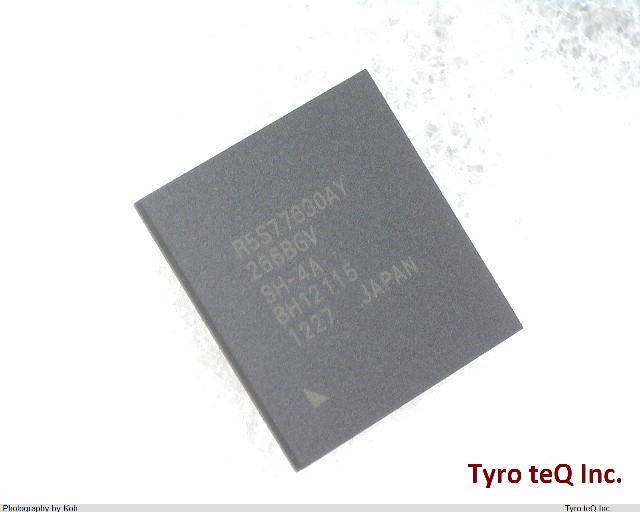

R5S77630AY266BGV データシート

Name: R5S77630AY266BGV
Brand: RENESAS
SKU: 280252567-0000-0000-0000

R5S77630AY266BGV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5S77630AY266BGV の詳細情報

型番	R5S77630AY266BGV
メーカー	RENESAS
データシート
ADC Channels	YES
Address Bus Width	32
Bit Size	32
CPU Family	SH7000
Clock Frequency-Max	33.4 MHz
DAC Channels	YES
DMA Channels	YES
External Data Bus Width	32
JESD-30 Code	S-PBGA-B449
Length	21 mm
Moisture Sensitivity Level	3
Number of I/O Lines	118
Number of Terminals	449
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FBGA
Package Equivalence Code	BGA449,25X25,32
Package Shape	SQUARE
Package Style	GRID ARRAY, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.25,2.5,3.3 V
Qualification Status	Not Qualified
RAM (bytes)	16384
Seated Height-Max	2 mm
Speed	266 rpm
Sub Category	Microcontrollers
Supply Current-Max	1200 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	40
Width	21 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
