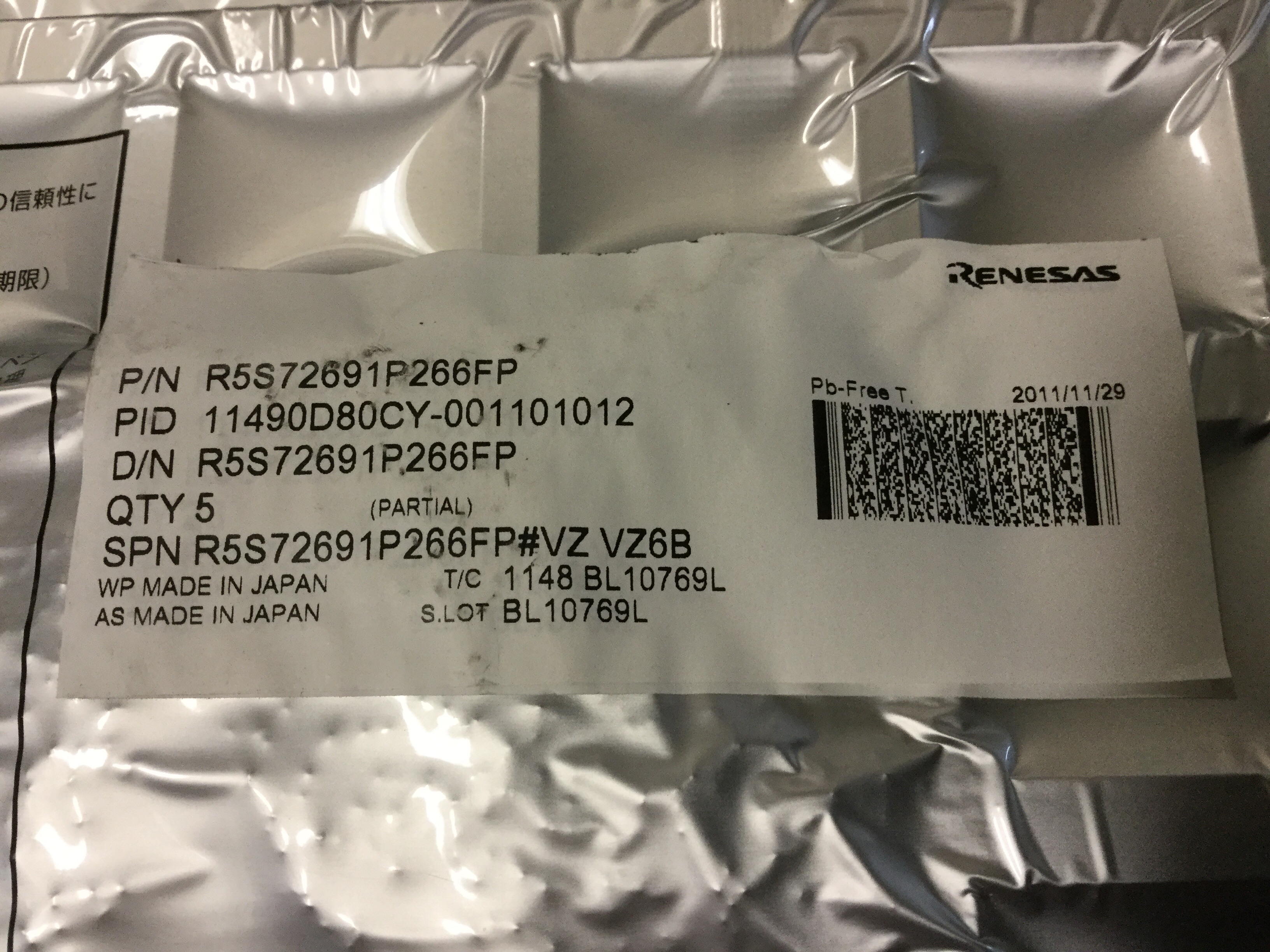

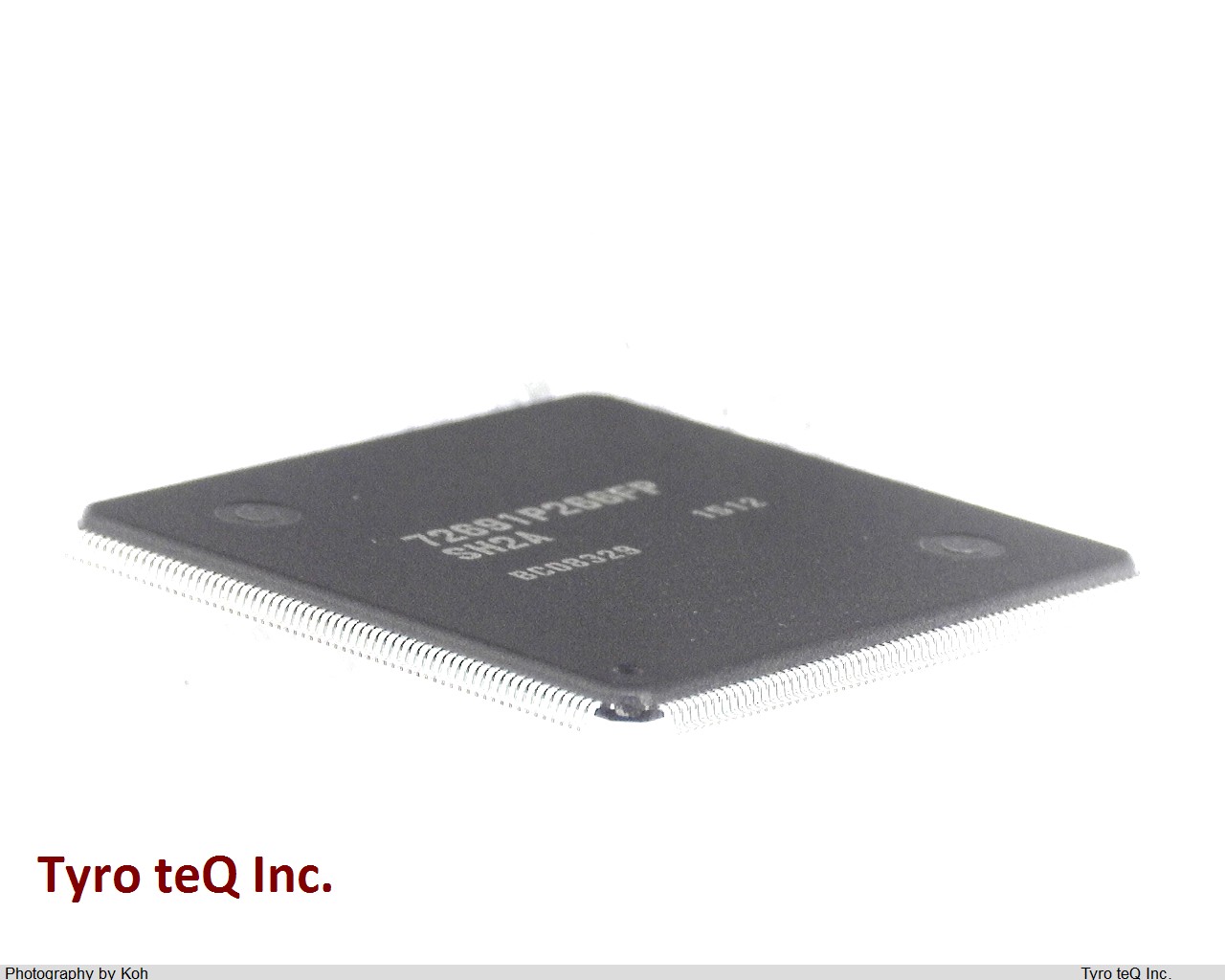

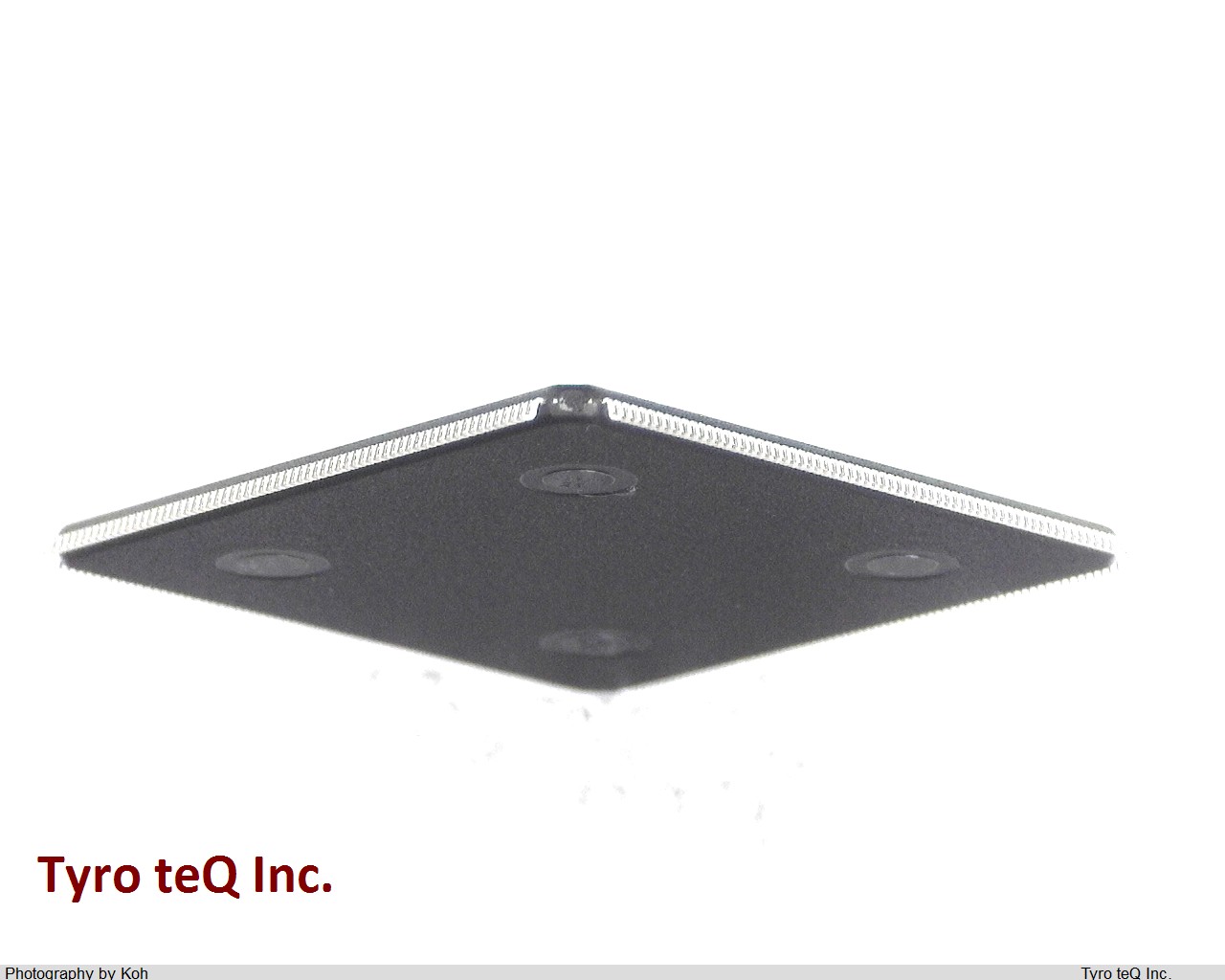

R5S72691P266FP データシート

Name: R5S72691P266FP
Brand: RENESAS
SKU: 280408784-0000-0000-0000

R5S72691P266FP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5S72691P266FP の詳細情報

型番	R5S72691P266FP
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
ADC Channels	YES
Additional Feature	OPERATES AT 1.15 V TO 1.35 V MINIMUM SUPPLY
Address Bus Width	26
Bit Size	32
CPU Family	SH-2A
Clock Frequency-Max	13.33 MHz
DAC Channels	YES
DMA Channels	YES
External Data Bus Width	32
JESD-30 Code	S-PQFP-G256
Length	28 mm
Number of I/O Lines	133
Number of Terminals	256
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP256,1.2SQ,16
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	1.25,3.3 V
Qualification Status	Not Qualified
RAM (bytes)	2686976
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	266.67 rpm
Sub Category	Microcontrollers
Supply Current-Max	285 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	28 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
