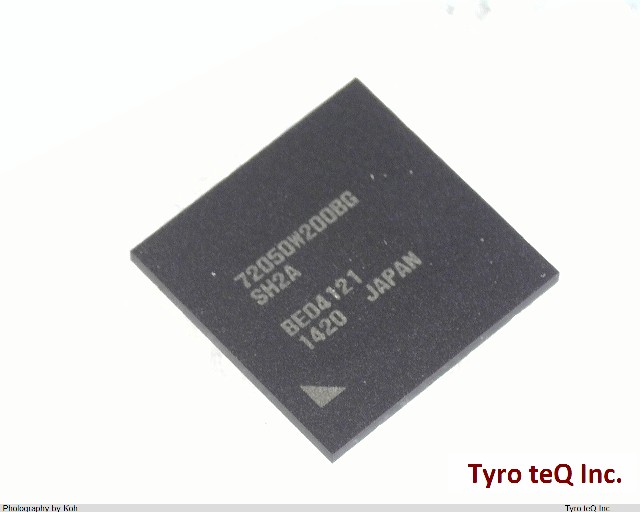

R5S72050W200BG

Name: R5S72050W200BG
Brand: RENESAS
SKU: 280351087-0000-0000-0000

R5S72050W200BG - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5S72050W200BG の詳細情報

型番	R5S72050W200BG
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
ADC Channels	YES
Address Bus Width	26
Bit Size	32
CPU Family	SH-2A
Clock Frequency-Max	33.33 MHz
DAC Channels	YES
DMA Channels	YES
External Data Bus Width	32
JESD-30 Code	S-PBGA-B272
Length	17 mm
Number of I/O Lines	107
Number of Terminals	272
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	FBGA
Package Equivalence Code	BGA272,20X20,32
Package Shape	SQUARE
Package Style	GRID ARRAY, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	1.2,3.3 V
Qualification Status	Not Qualified
RAM (bytes)	114688
ROM Programmability	FLASH
Seated Height-Max	1.9 mm
Speed	40 rpm
Sub Category	Microcontrollers
Supply Current-Max	500 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER

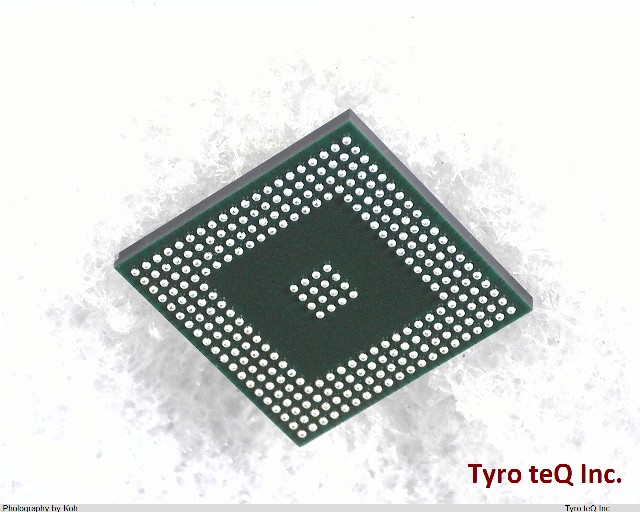

Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	17 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
