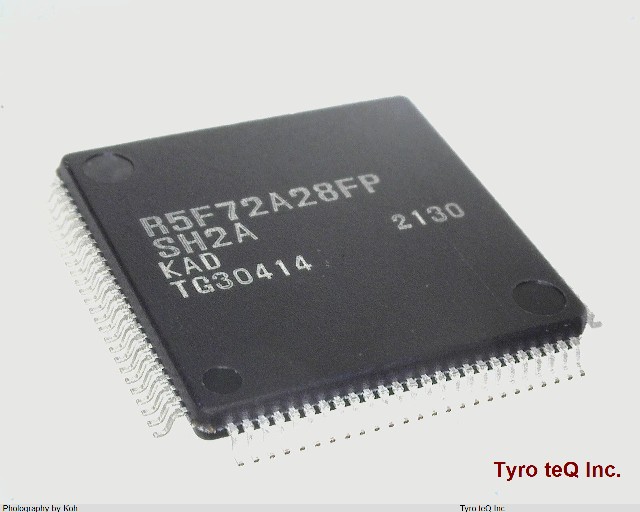

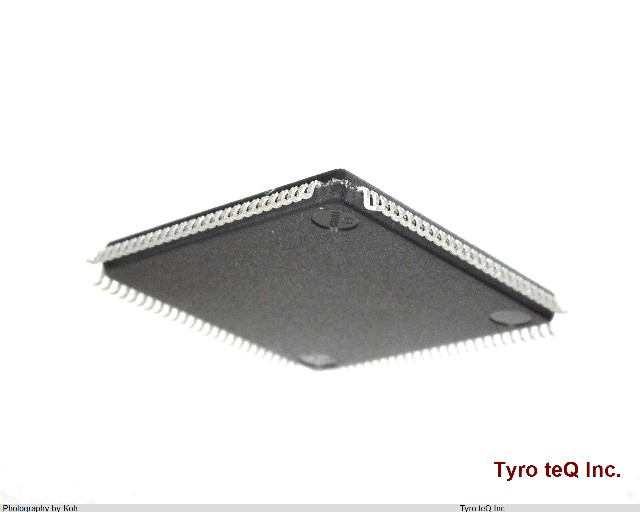

R5F72A28KADFP データシート

Name: R5F72A28KADFP
Brand: RENESAS
SKU: 280408741-0000-0000-0000

R5F72A28KADFP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F72A28KADFP の詳細情報

型番	R5F72A28KADFP
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	6-Ch 12-Bit, 24-Ch 10-Bit
ADC Channels	YES
Additional Feature	it also has 3.3 to 4.5V supply voltage
Address Bus Width	0
Bit Size	32
Boundary Scan	NO
CPU Family	SH-2A
Clock Frequency-Max	0.125 MHz
Connectivity	CAN(2), CSI(8), LIN(2), SBI(4), UART(4)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	32768
External Data Bus Width	0
Format	FLOATING POINT
Integrated Cache	YES
JESD-30 Code	S-PQFP-G100
Length	14 mm
Low Power Mode	NO
Number of DMA Channels	8
Number of External Interrupts	14
Number of I/O Lines	80
Number of Terminals	100
Number of Timers	1
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC
Package Code	LFQFP
Package Equivalence Code	QFP100,.7SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	DMA(8), PWM, TIMER(30), WDT
RAM (bytes)	65536
RAM (words)	65536
ROM (words)	524288
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	100 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
