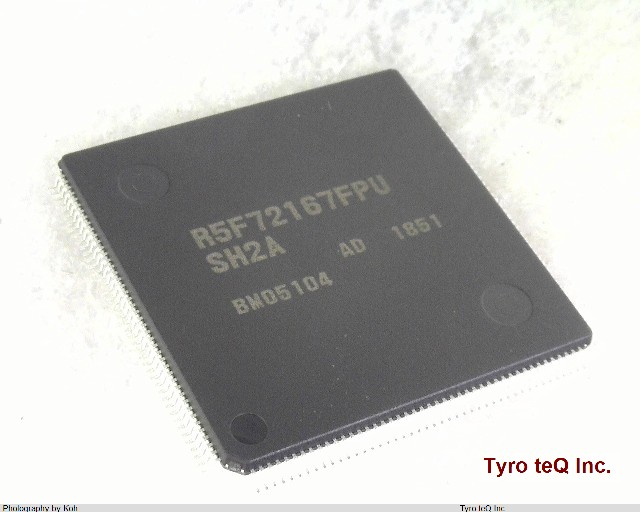

R5F72167ADFP データシート

Name: R5F72167ADFP
Brand: RENESAS
SKU: 280408910-0000-0000-0000

R5F72167ADFP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F72167ADFP の詳細情報

型番	R5F72167ADFP
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	8-Ch 12-Bit
ADC Channels	YES
Address Bus Width	26
Bit Size	32
Boundary Scan	YES
CPU Family	SH-2A
Clock Frequency-Max	12.5 MHz
Connectivity	CAN, ETHERNET, I2C, SCIF, SCI(3), SPI, USB
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	32768
External Data Bus Width	32
Format	FIXED POINT
Integrated Cache	YES
JESD-30 Code	S-PQFP-G176
Length	6 mm
Low Power Mode	YES
Number of DMA Channels	8
Number of External Interrupts	9
Number of I/O Lines	110
Number of Serial I/Os	5
Number of Terminals	48
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	QFP176,1.0SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	DMA(8), POR, PWM, TIMER(9), WDT
RAM (bytes)	131072
ROM (words)	1048576
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	200 rpm
Supply Current-Max	200 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	6 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
