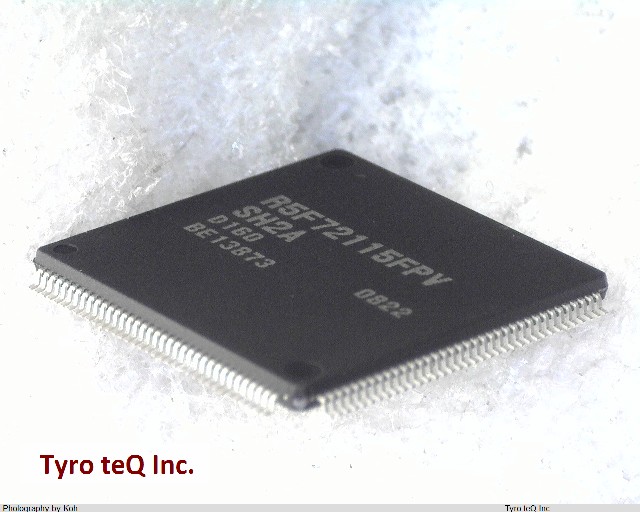

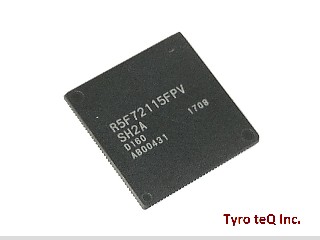

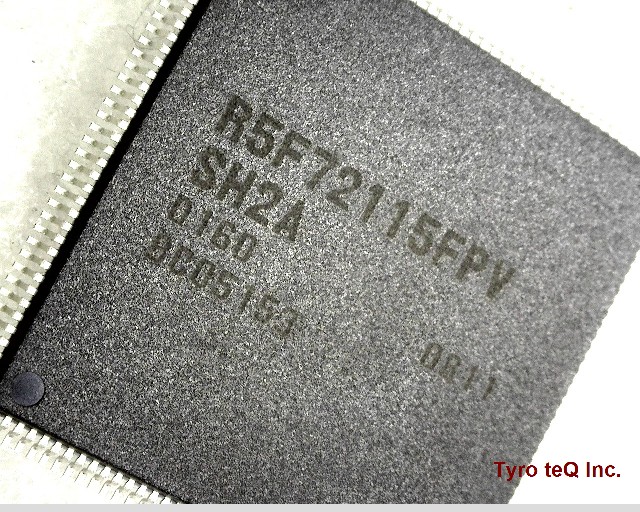

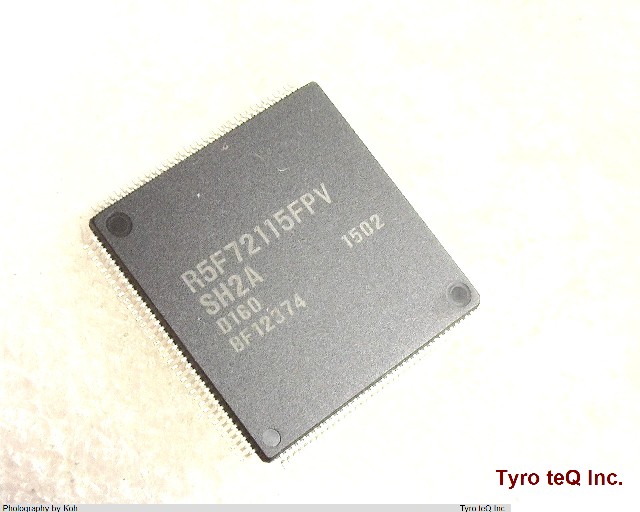

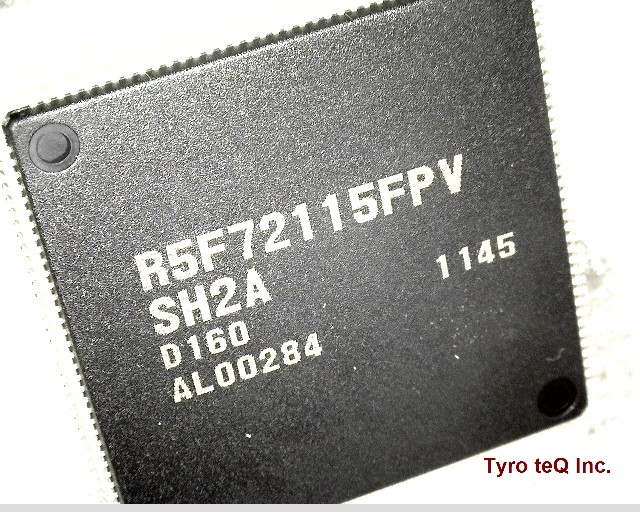

R5F72115D160FPV データシート

Name: R5F72115D160FPV
Brand: RENESAS
SKU: 280214196-0000-0000-0000

R5F72115D160FPV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F72115D160FPV の詳細情報

型番	R5F72115D160FPV
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	8-Ch 12-Bit
ADC Channels	YES
Additional Feature	ALSO REQUIRES 3.0 TO 3.6 V I/O SUPPLY
Address Bus Width	0
Bit Size	32
CPU Family	SH-2A
Clock Frequency-Max	40 MHz
Connectivity	I2C, SCIF(4)
D/A Converters	2-Ch 8-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	0
JESD-30 Code	S-PQFP-G144
JESD-609 Code	e6
Length	20 mm
Moisture Sensitivity Level	3
Number of I/O Lines	81
Number of Terminals	144
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	DMA(8), POR, PWM, TIMER(8), WDT
Qualification Status	Not Qualified
RAM (bytes)	32768
ROM (words)	524288
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	160 rpm
Supply Voltage-Max	1.6 V
Supply Voltage-Min	1.4 V
Supply Voltage-Nom	1.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	20 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
