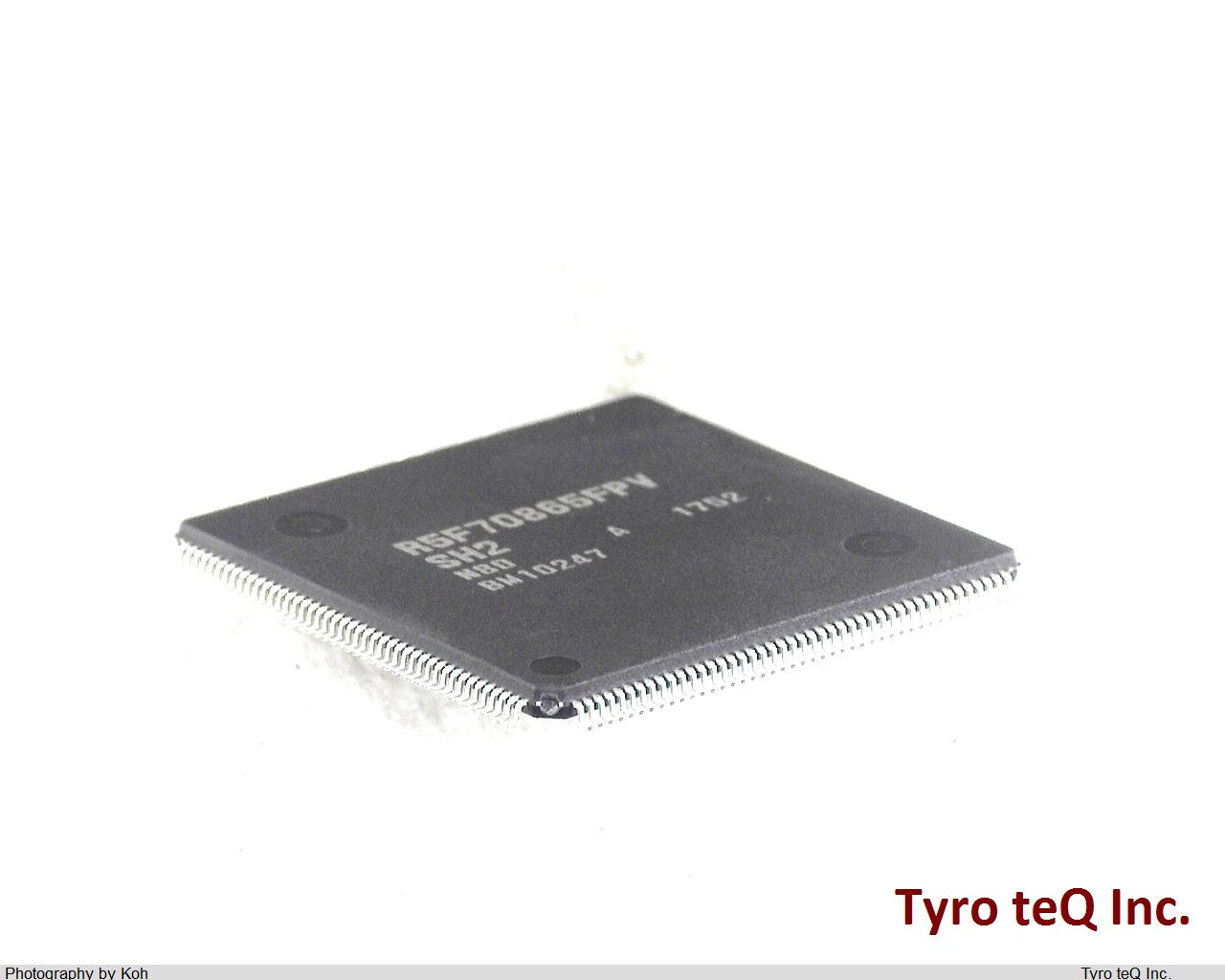

R5F70865AN80FPV データシート

Name: R5F70865AN80FPV
Brand: RENESAS
SKU: 280250436-0000-0000-0000

R5F70865AN80FPV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F70865AN80FPV の詳細情報

型番	R5F70865AN80FPV
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AS 4.5 TO 5.5 V SUPPLY
Address Bus Width	0
Bit Size	32
CPU Family	SH7080
Connectivity	SCI(4)
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	0
External Data Bus Width	0
JESD-30 Code	S-PQFP-G176
JESD-609 Code	e6
Length	24 mm
Moisture Sensitivity Level	3
Number of I/O Lines	134
Number of Terminals	176
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	DMA(4), TIMER(11), WDT
Qualification Status	Not Qualified
RAM (bytes)	32768
ROM (words)	524288
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	80 rpm
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	TIN BISMUTH
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	24 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
