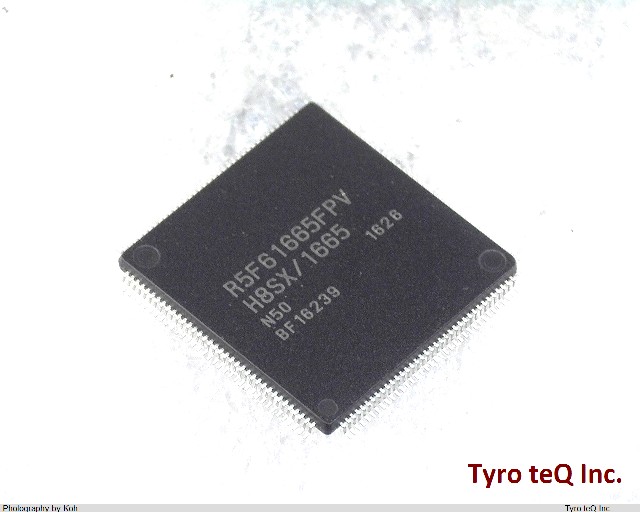

R5F61665N50FPV データシート

Name: R5F61665N50FPV
Brand: RENESAS
SKU: 280423178-0000-0000-0000

R5F61665N50FPV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F61665N50FPV の詳細情報

型番	R5F61665N50FPV
メーカー	RENESAS
データシート
ADC Channels	YES
Address Bus Width	24
Bit Size	32
CPU Family	H8SX
Clock Frequency-Max	50 MHz
DMA Channels	YES
External Data Bus Width	16
JESD-30 Code	S-PQFP-G144
Length	20 mm
Number of I/O Lines	92
Number of Terminals	144
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP144,.87SQ,20
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Qualification Status	Not Qualified
RAM (bytes)	40960
ROM (words)	524288
ROM Programmability	FLASH
Speed	50 rpm
Sub Category	Microcontrollers
Supply Current-Max	85 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	20 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
