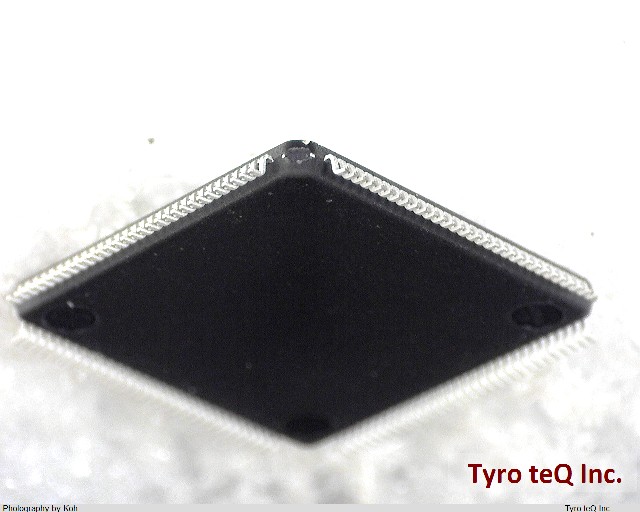

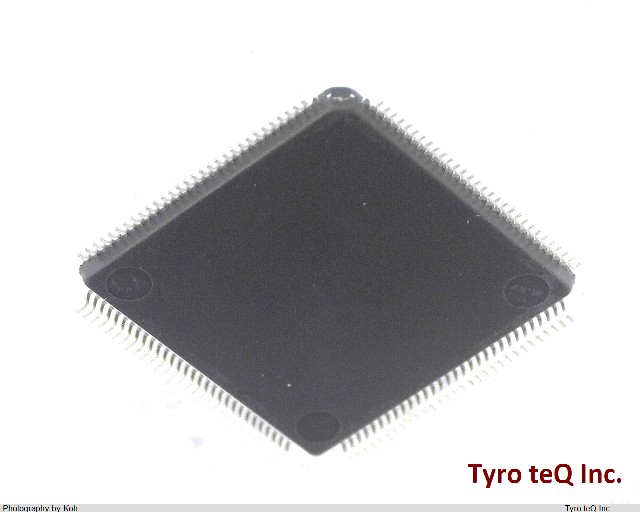

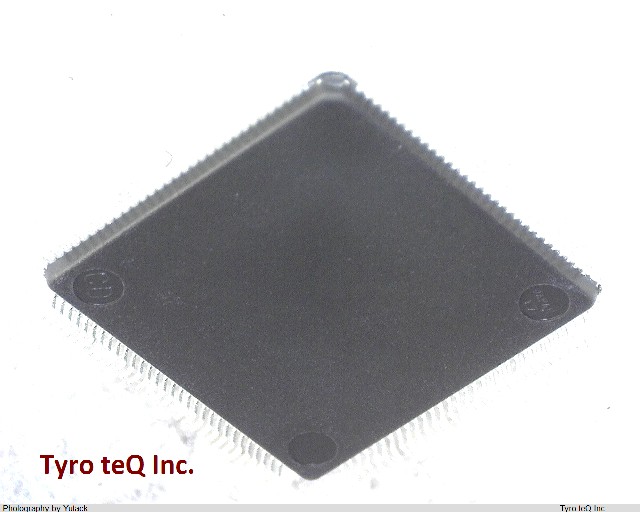

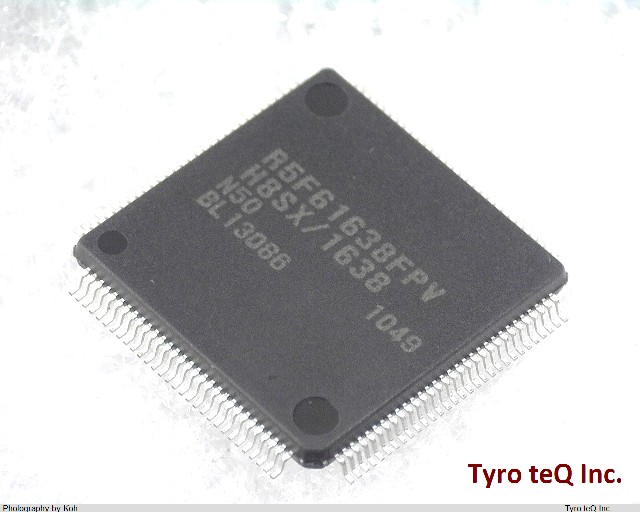

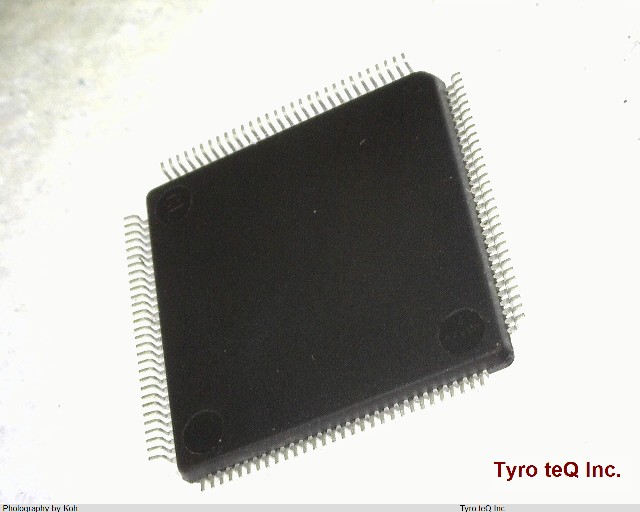

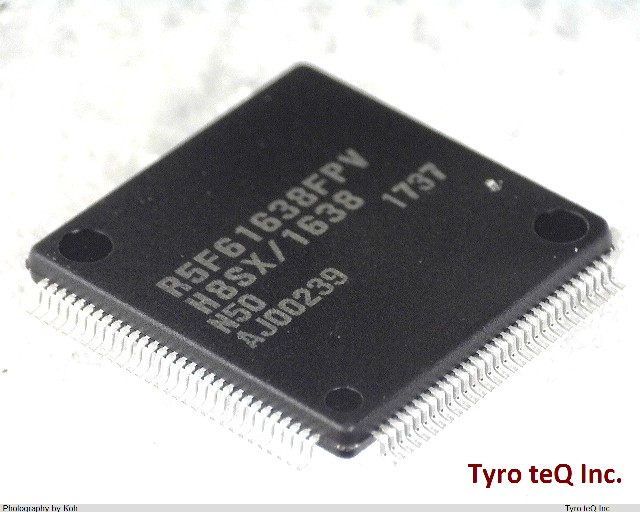

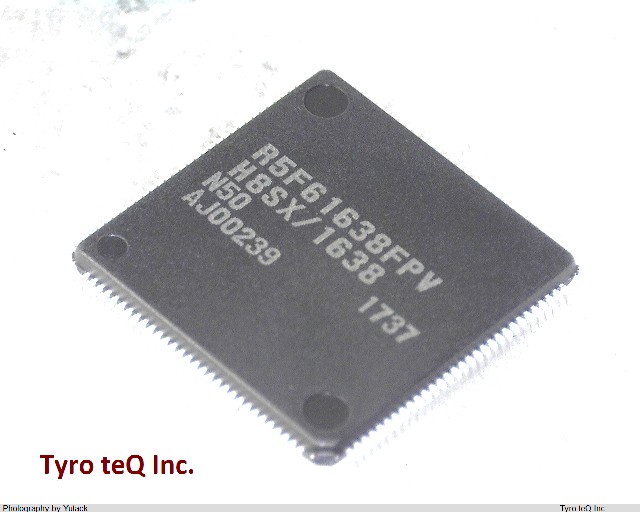

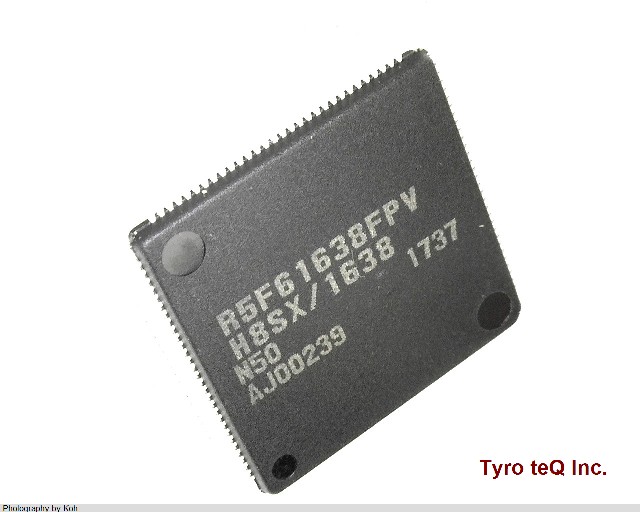

R5F61638N50FPV

Name: R5F61638N50FPV
Brand: RENESAS
SKU: 280224219-0000-0000-0000

R5F61638N50FPV - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F61638N50FPV の詳細情報

型番	R5F61638N50FPV
メーカー	RENESAS
ADC Channels	YES
Address Bus Width	24
Bit Size	32
CPU Family	H8SX
Clock Frequency-Max	50 MHz
DAC Channels	YES
DMA Channels	YES
External Data Bus Width	16
JESD-30 Code	S-PQFP-G120
JESD-609 Code	e6
Length	14 mm
Moisture Sensitivity Level	3
Number of I/O Lines	106
Number of Terminals	120
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP120,.63SQ,16
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
RAM (bytes)	57344
ROM (words)	1048576
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	50 rpm
Sub Category	Microcontrollers
Supply Current-Max	80 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Tin/Bismuth (Sn/Bi)
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
