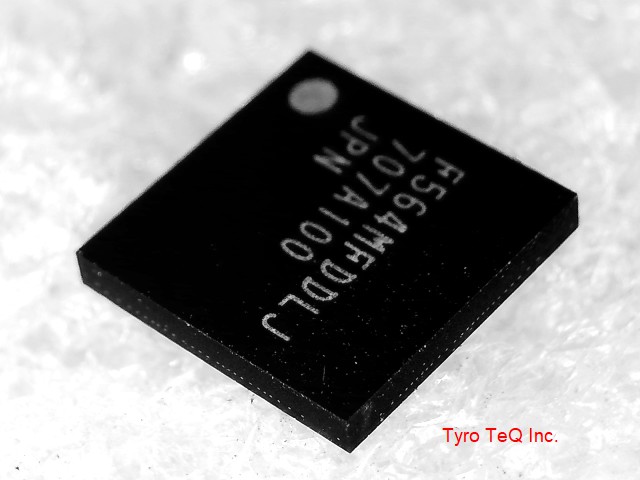

R5F564MFDDLJ データシート

Name: R5F564MFDDLJ
Brand: RENESAS
SKU: 280407619-0000-0000-0000

R5F564MFDDLJ - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F564MFDDLJ の詳細情報

型番	R5F564MFDDLJ
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	20-Ch 12-Bit
ADC Channels	YES
Additional Feature	2 EXTERNAL DMA CHANNEL AVAILABLE
Address Bus Width	24
Bit Size	32
CPU Family	RX64M
Clock Frequency-Max	24 MHz
Connectivity	CAN(2), ETHERNET, I2C(3), QSPI, SCI(6), SDMMC, SPI, USB
D/A Converters	1-Ch 12-Bit
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	64K
External Data Bus Width	32
JESD-30 Code	S-PBGA-N100
Length	7 mm
Moisture Sensitivity Level	3
Number of DMA Channels	8
Number of I/O Lines	78
Number of Terminals	100
Number of Timers	16
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	LGA100,10X10,25
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	DMA(8), POR, TIMER(16), RTC, WDT
Power Supplies	3/3.3 V
Qualification Status	Not Qualified
RAM (bytes)	524288
ROM (words)	2097152
ROM Programmability	FLASH
Speed	120 rpm
Sub Category	Microcontrollers
Supply Current-Max	110 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	BALL
Terminal Pitch	0.65 mm
Terminal Position	BOTTOM
Width	7 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
