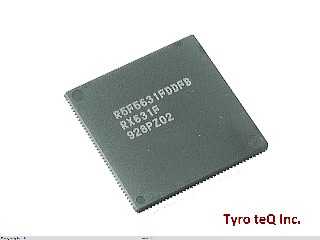

R5F5631FDDFB#V0 データシート

Name: R5F5631FDDFB#V0
Brand: RENESAS
SKU: 280428018-0000-0000-0000

R5F5631FDDFB#V0 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F5631FDDFB#V0 の詳細情報

型番	R5F5631FDDFB#V0
メーカー	RENESAS
データシート
A/D Converters	21-Ch 12-Bit; 8-Ch 10-Bit
ADC Channels	YES
Address Bus Width	24
Bit Size	32
CPU Family	RX
Clock Frequency-Max	16 MHz
Connectivity	CAN(3), I2C(4), IEBUS, SCI(13), SPI(3), USB
D/A Converters	2-Ch 10-Bit
DAC Channels	YES
DMA Channels	YES
Data EEPROM Size	32K
External Data Bus Width	16
JESD-30 Code	S-PQFP-G144
Length	20 mm
Number of DMA Channels	6
Number of I/O Lines	112
Number of Terminals	144
Number of Timers	26
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Peripherals	DMA(6), POR, RTC, TEMPERATURE SENSOR, TIMER(26), WDT(2)
RAM (bytes)	262144
ROM (words)	2097152
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	100 rpm
Supply Voltage-Max	3.6 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	20 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
