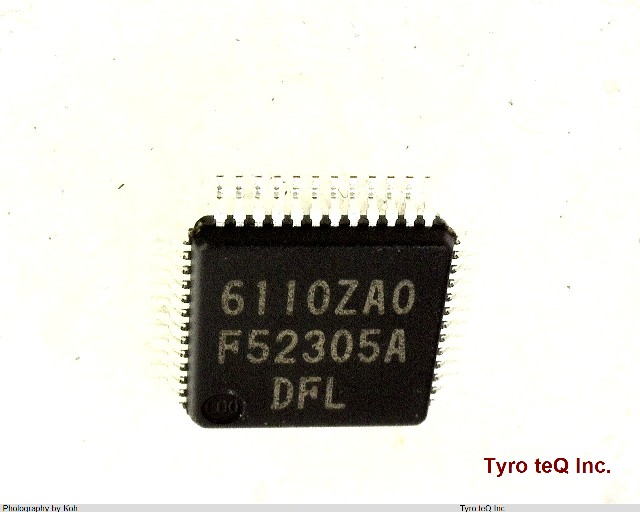

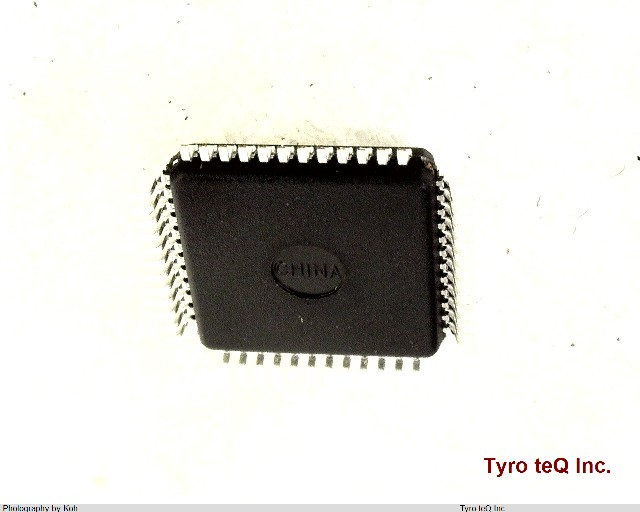

R5F52305ADFL#30 データシート

Name: R5F52305ADFL#30
Brand: RENESAS
SKU: 280427125-0000-0000-0000

R5F52305ADFL#30 - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F52305ADFL#30 の詳細情報

型番	R5F52305ADFL#30
メーカー	RENESAS
データシート
A/D Converters	8-Ch 12-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	32
Clock Frequency-Max	20 MHz
Connectivity	I2C, IRDA, SCI(5), SPI, SSI
DAC Channels	NO
DMA Channels	YES
Data EEPROM Size	8K
External Data Bus Width	0
JESD-30 Code	S-PQFP-G48
Length	7 mm
Moisture Sensitivity Level	3
Number of I/O Lines	34
Number of Terminals	48
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	COMPARATOR(4), DMA(4), POR, PWM, TEMPERATURE SENSOR, TIMER(21), WDT(2)
RAM (bytes)	32768
ROM (words)	131072
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	54 rpm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	1.8 V
Supply Voltage-Nom	2 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	7 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
