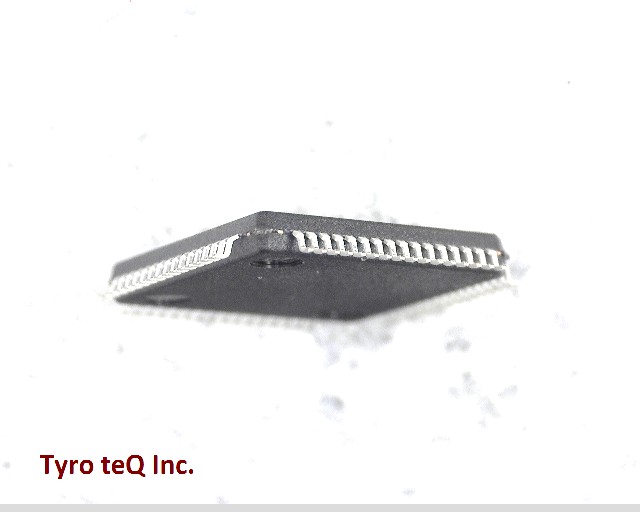

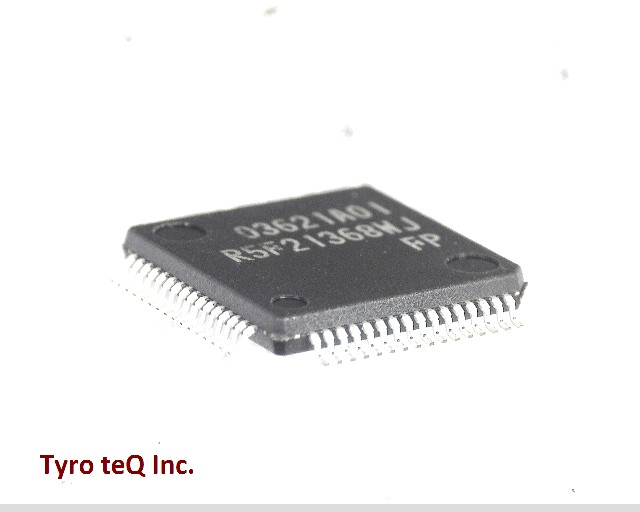

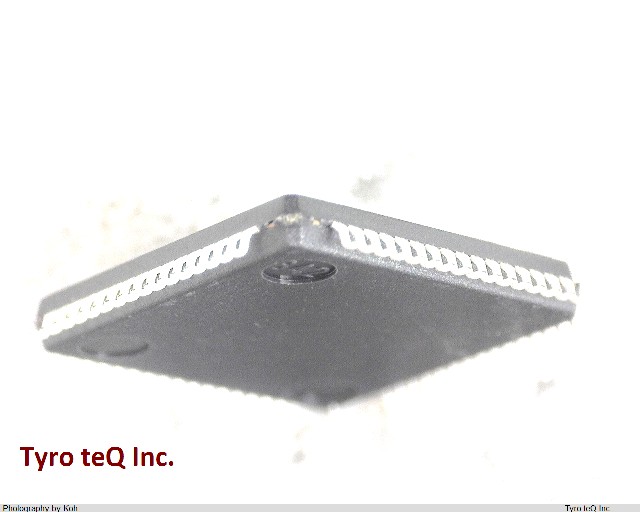

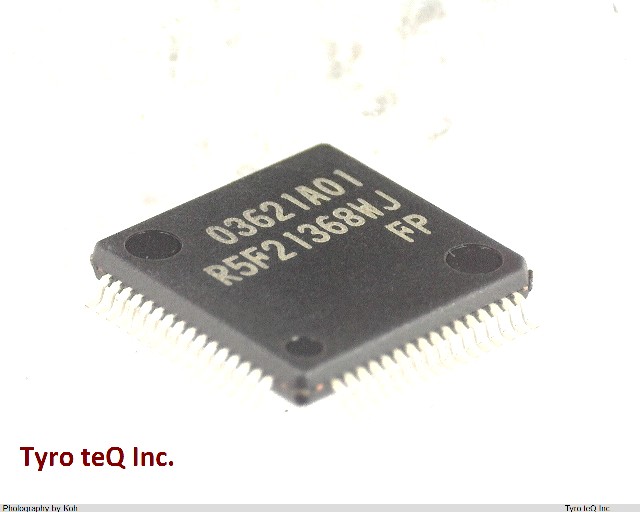

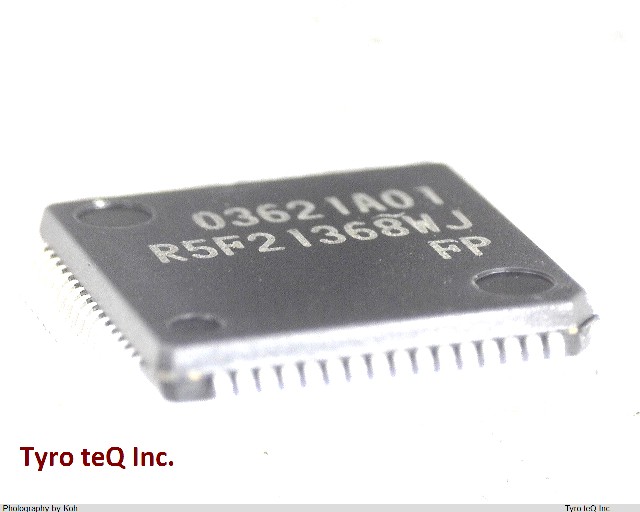

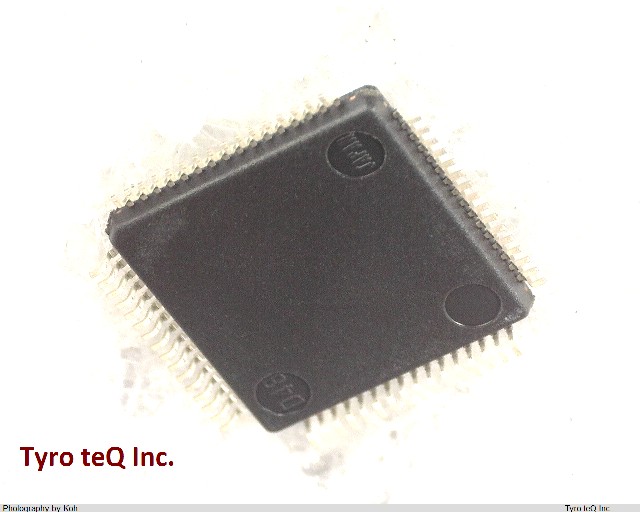

R5F21368WJFP データシート

Name: R5F21368WJFP
Brand: RENESAS
SKU: 280408326-0000-0000-0000

R5F21368WJFP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F21368WJFP の詳細情報

型番	R5F21368WJFP
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Address Bus Width	0
Bit Size	32
CPU Family	R8C
Clock Frequency-Max	20 MHz
Connectivity	CAN, I2C, LIN(2), SSU, UART(3)
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	4K
External Data Bus Width	0
JESD-30 Code	S-PQFP-G64
Length	10 mm
Number of I/O Lines	60
Number of Terminals	64
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP64,.47SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peripherals	DTC, POR, PWM, TIMER(9), WDT
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	6144
ROM (words)	65536
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	20 rpm
Sub Category	Microcontrollers
Supply Current-Max	15 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	10 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
