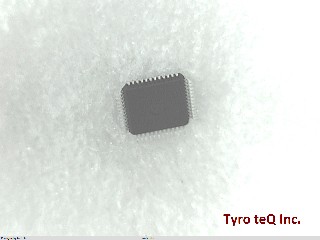

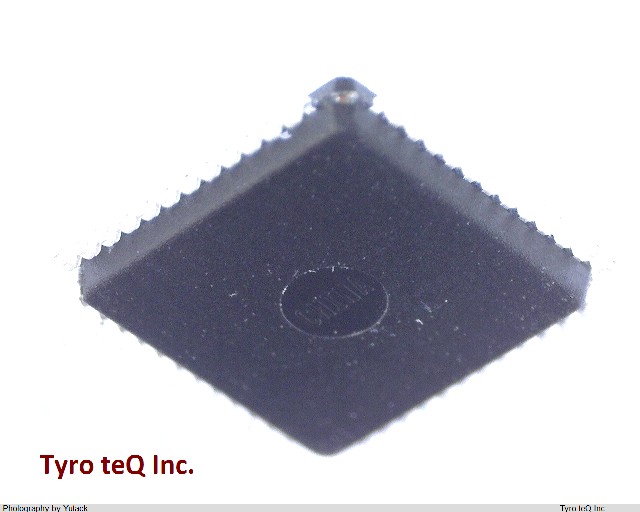

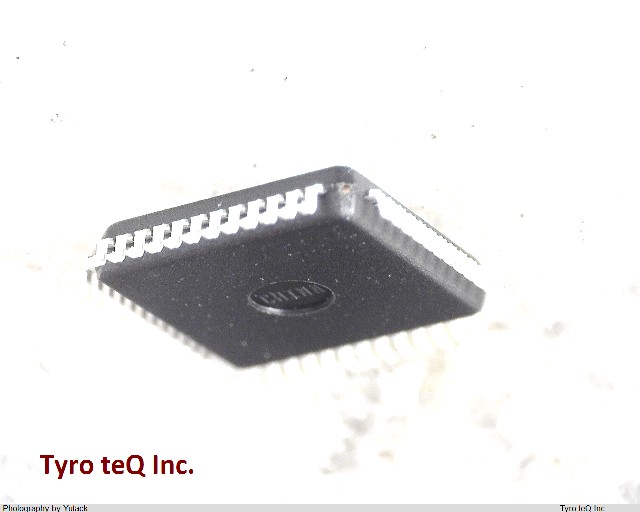

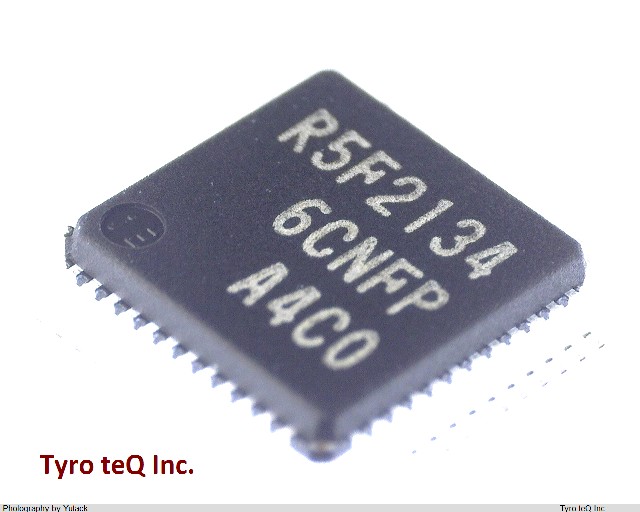

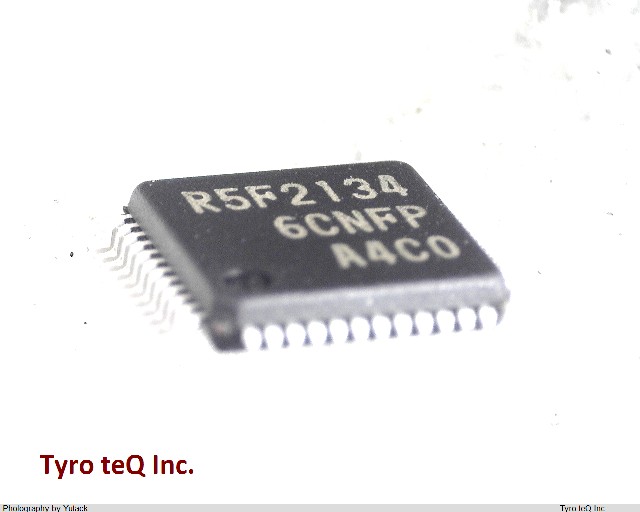

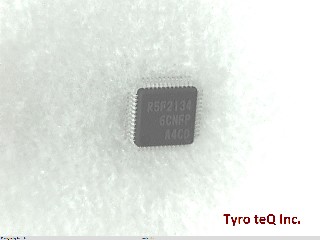

R5F21346CNFP データシート

Name: R5F21346CNFP
Brand: RENESAS
SKU: 280408047-0000-0000-0000

R5F21346CNFP - RENESAS の商品詳細ページです。

２営業日以内に回答いたします

R5F21346CNFP の詳細情報

型番	R5F21346CNFP
メーカー	RENESAS
カテゴリ	その他-マイクロコンピュータ
データシート
ADC Channels	YES
Additional Feature	IT ALSO OPERATES MINI 1.8 VOLT AT 5 MHZ
Address Bus Width	0
Bit Size	16
CPU Family	R8C
Clock Frequency-Max	20 MHz
DAC Channels	YES
DMA Channels	NO
External Data Bus Width	0
JESD-30 Code	S-PQFP-G48
Length	7 mm
Number of I/O Lines	44
Number of Terminals	48
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP48,.35SQ,20
Package Shape	SQUARE
Package Style	FLATPACK Meter
Power Supplies	2/5 V
Qualification Status	Not Qualified
RAM (bytes)	2560
ROM (words)	32768
ROM Programmability	FLASH
Seated Height-Max	1.7 mm
Speed	20 rpm
Sub Category	Microcontrollers
Supply Current-Max	15 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	7 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
